Service and Repair Manual
Model 900/950/990

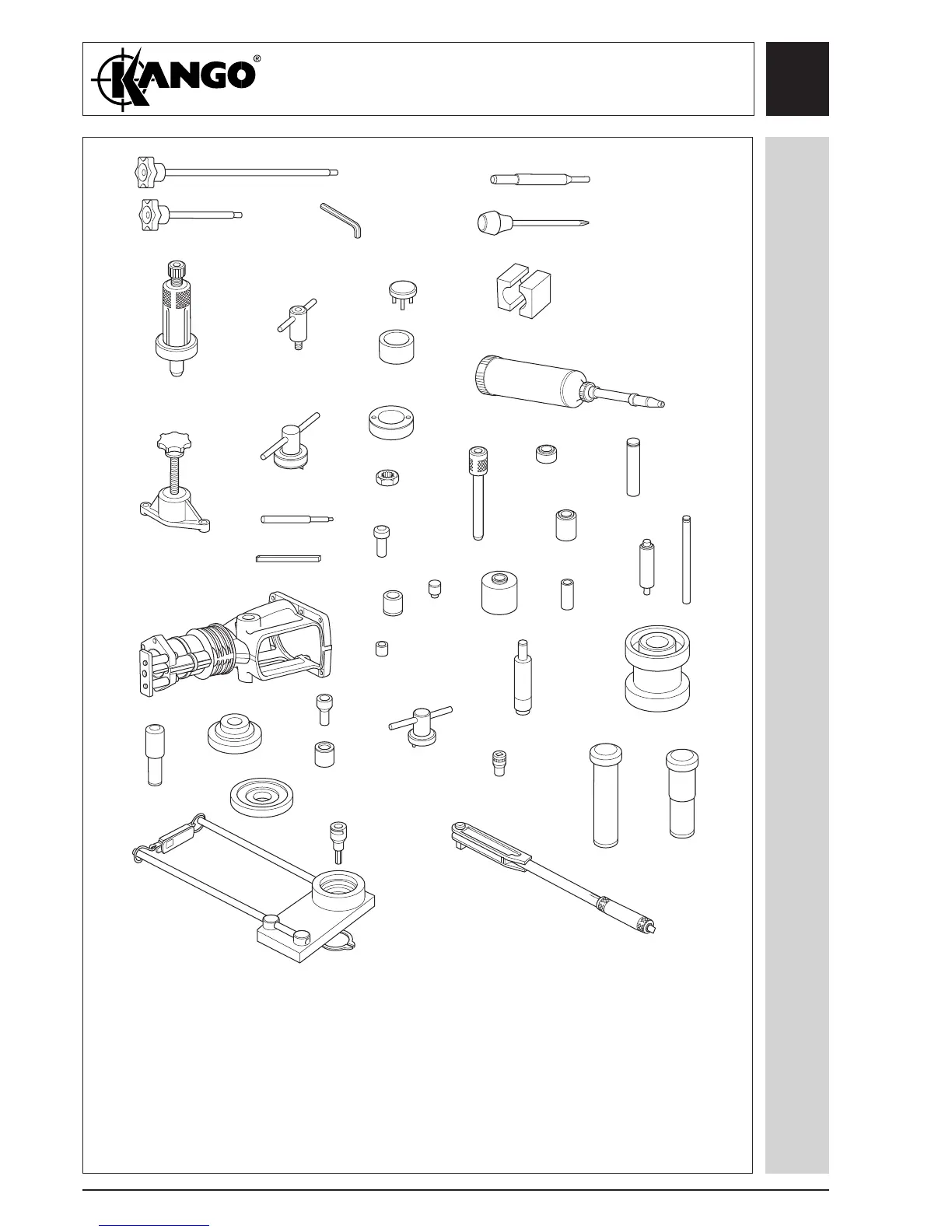

Service Tools
ITEM PART NO. DESCRIPTION
1 9170 0231 30 LONG ALLEN KEY
2 9170 0737 20 3/32 PIN PUNCH
3 9170 0231 40 SHORT ALLEN KEY
4 9170 0230 70 ALLEN KEY SET
5 9170 0239 10 SCREWDRIVER
6 9170 0231 50 TOP BEARING PULLER
7 9170 0232 40 BEARING ASSY TOOL
8 9170 0232 10 CARTRIDGE EJECTOR
9 9170 0232 20 EJECTOR BASE
10 9170 0236 40 WOOD BLOCKS
11 9170 0236 80 GREASE GUN
12 9170 0231 70 MTR DISMANTLING TOOL
13 9170 0232 00 FAN SPANNER
14 9170 0232 30 PINION MASK
15 9170 0233 20 5/8" COLLAR
16 9170 0233 50 BORE SUPPORT BAR
ITEM PART NO. DESCRIPTION
17 9170 0232 50 ROCKER PIVOT DRIFT
18 9170 0236 30 PINION NUT
19 9170 0233 00 DISC BEARING MANDREL
20 9170 0233 30 1 1/2" COLLAR
21 9170 0233 60 D/SHFT BRG MANDREL
22 9170 0232 60 ALIGNMENT BAR
23 9170 0234 10 BIG END BGR MANDREL
24 9170 3199 50 DUMMY HAMMER CASE
25 9170 0234 30 BIG END BGR EJECTOR
26 9170 0233 10 DISC MANDREL BASE
27 9170 0233 40 DISC BRG EJECT COLLAR
28 9170 0233 70 D/SHFT EJECTOR PUNCH
29 9170 0234 20 B/E BRG MANDREL BASE
30 9170 0233 80 CLUTCH BRG MANDREL
31 9170 0233 90 CLUTCH BRG MAN. BASE
32 9170 0234 40 CLUTCH TAIL MANDREL
ITEM PART NO. DESCRIPTION
33 9170 0234 60 CLUTCH TAIL EJECT BUSH
34 9170 0234 00 CLUTCH SHFT BGR BOLS
35 9170 0234 60 SHAFT BRG MAND. BASE
36 9170 0232 90 CLUTCH SPANNER
37 9170 0734 80 BRG DISMANTLING TOOL
38 9170 7327 01 BRG SERVICE TOOL
39 9170 0737 60 ADAPTOR, ALLEN KEY
40 9170 0236 70 SOCKETS - 3/8", 9/16"
41 9170 7327 02 BRG SERVICE TOOL
42 9170 7327 03 BRG SERVICE TOOL
43 9170 0737 90 CLUTCH TORQUE SET RIG
44 9170 0236 60 TORQUE WRENCH
1
2
3
4
5
6
7
8
9
10
11
12
13
14
17
22
18
23
19
15
20
16
21
22
24
30
31
32
33
29
25
26
27
36
37
38
34
35
39
43
40
44
41
42

Kango 950 Specifications

General

Power Input	950 W
Blows per Minute	4800 bpm
Weight	3.4 kg
Power Consumption	950 W
Drilling Capacity (Steel)	13 mm
Drilling Capacity (Wood)	30 mm
Tool Holder	SDS-Plus
