Kaon KSTB2020 User Manual

USER GUIDE SELF-INSTALL CONNECTIONS
Modified 1/08/21 MKT200923
Page 10 of 32
Self-Install Connections
WHAT YOU NEED
• An HD or Ultra High Definition (UHD) TV that can
support 720p, 1080p, or 4K UHD
• A broadband Internet connection that supports
a wired or WiFi wireless home network (802.11 g,
n, or ac)
• Pay TV operator login credentials (mandatory)
• Google login credentials (optional)

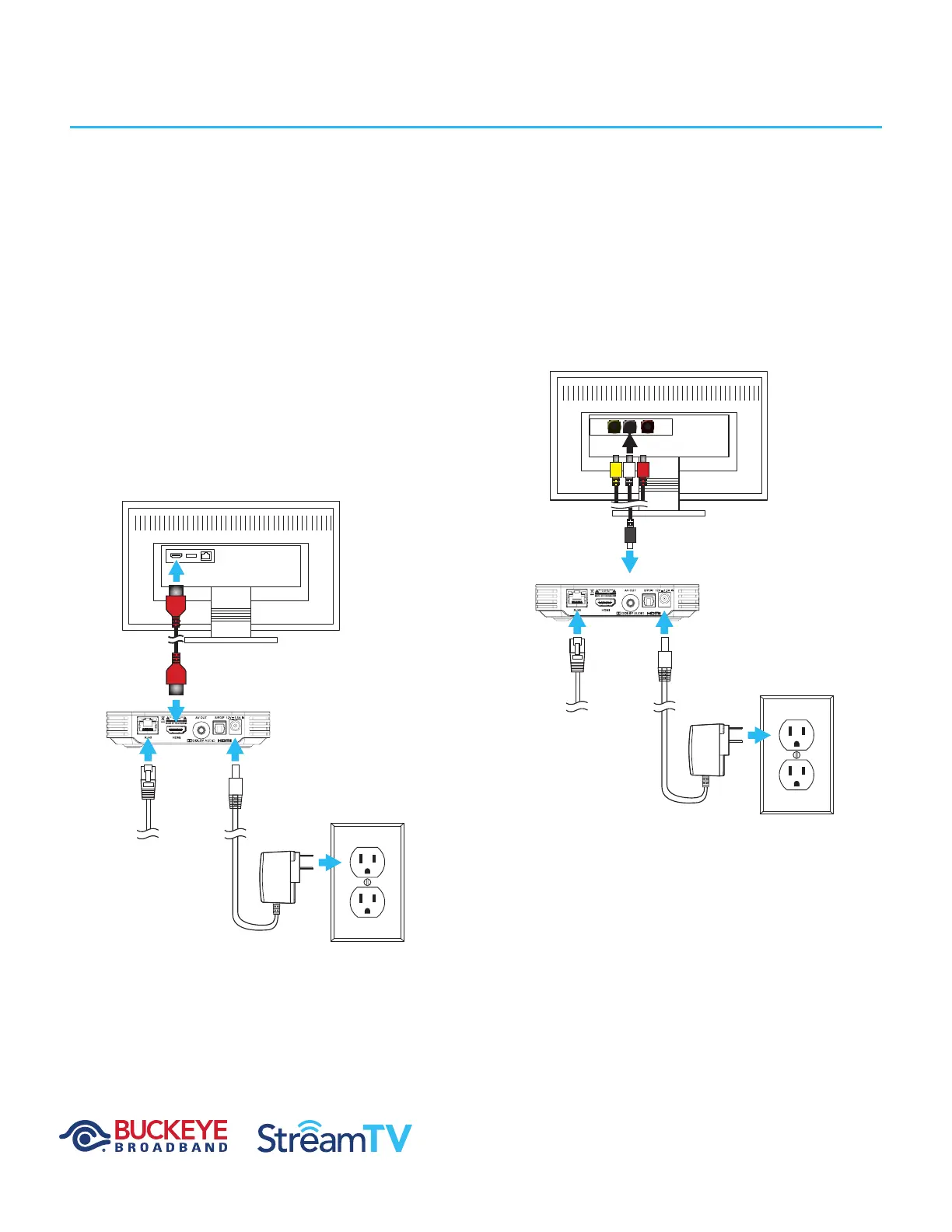

HDMI Cable Connection
Analog Composite Breakout Cable Connection
Connect the analog composite cable as shown
below. This connection scheme should only be
used if the TV does not have a working HDMI port.
Network Connection
You must connect your new set-top box to an
Internet connection through either a WiFi wireless
connection or wired Ethernet connection.
POWER
OUTPUT TO TV
INPUT
THROUGH
WIFI OR
ETHERNET
CABLE
Connect the power adaptor
(100 ~ 240V AC, 50/60 Hz).
Connect the HDMI
cable to the TV HDMI
port and select the
corresponding HDMI
source on the TV.
Connect the
ethernet cable to
a router (optional).
Video L Audio
POWER
OUTPUT TO TV
INPUT
THROUGH
WIFI OR
ETHERNET
CABLE
Connect the power adaptor
(100 ~ 240V AC, 50/60 Hz).
Connect the analog composite
to the TV ports and select the
corresponding AV source on the TV.
Connect the
ethernet cable to
a router (optional).
