USER GUIDE SET-TOP BOX AT A GLANCE
Modified 1/08/21 MKT200923
Page 4 of 32

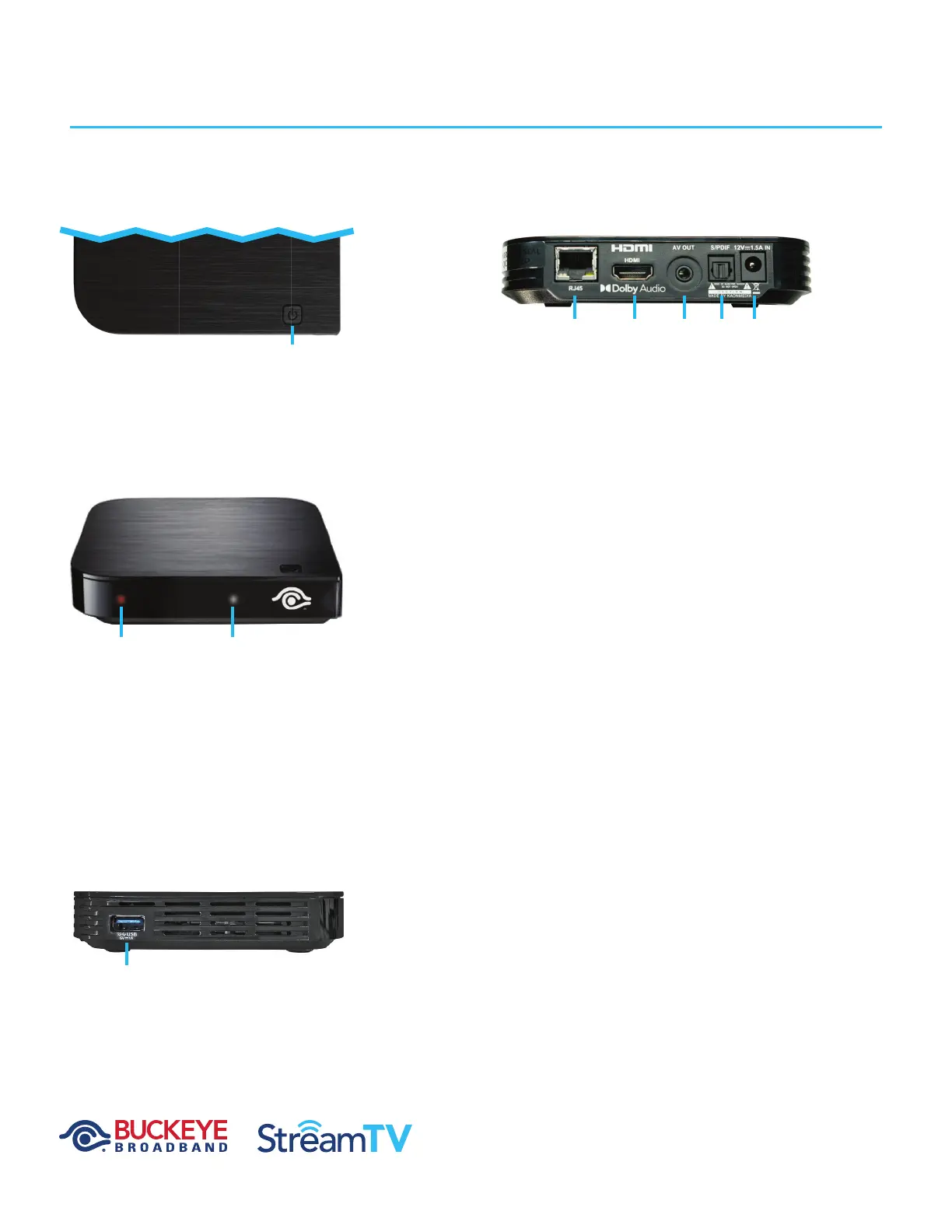

Set-Top Box at a Glance
TOP VIEW
1
Power Button
Used to power the box On or Off.
FRONT VIEW
Status Indicator LED
Indicates power status of box
(Red = Off, Green = On)
Infrared (IR) Sensor
Used to communicate with the remote control.
SIDE VIEW
USB
This port has an output power capability of
5V DC @ 1 amp.
REAR VIEW
RJ45
10/100 Ethernet port used to connect to a
home router.
6
HDMI
Digital A/V output, used to connect to a TV via
HDMI cable.
AV Out
SD analog A/V output, used to connect to
older-style TVs that do not support HDMI
connections.
8
S/PDIF
Optical audio output, used to connect to
external sound bar or surround sound system.
An optical cable with TOSLINK connectors is
required (not included).
9
12V/1.5A In
DC power port, used to connect via the power
adaptor.
1
6 8 9
