2. OVERVIEW
Introduction
The T600 Tag Tester Unit (TTU) ensures OBUs are functioning properly by testing at what RF signal levels the OBU can
reliably send and receive RF signals.
T600 system components
• a T600 Tag Tester Unit (TTU), with external power supply
• a serial null-modem cable
• a serial scanner cable
• a T600 software Installation CD
• Optional: Calibration files
• Optional: a Hand-held bar code scanner

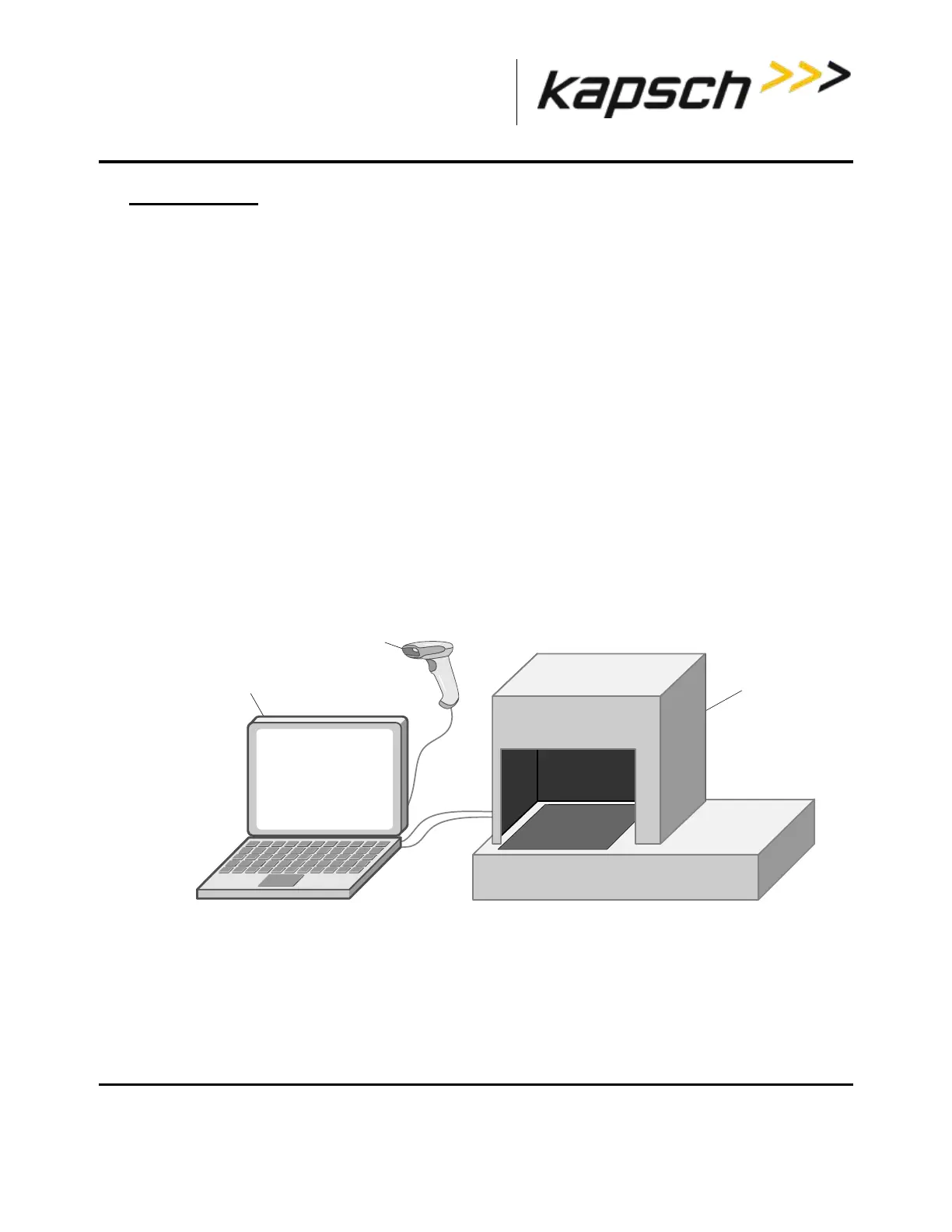

Figure 2-1: T600 Tag Tester System Components
