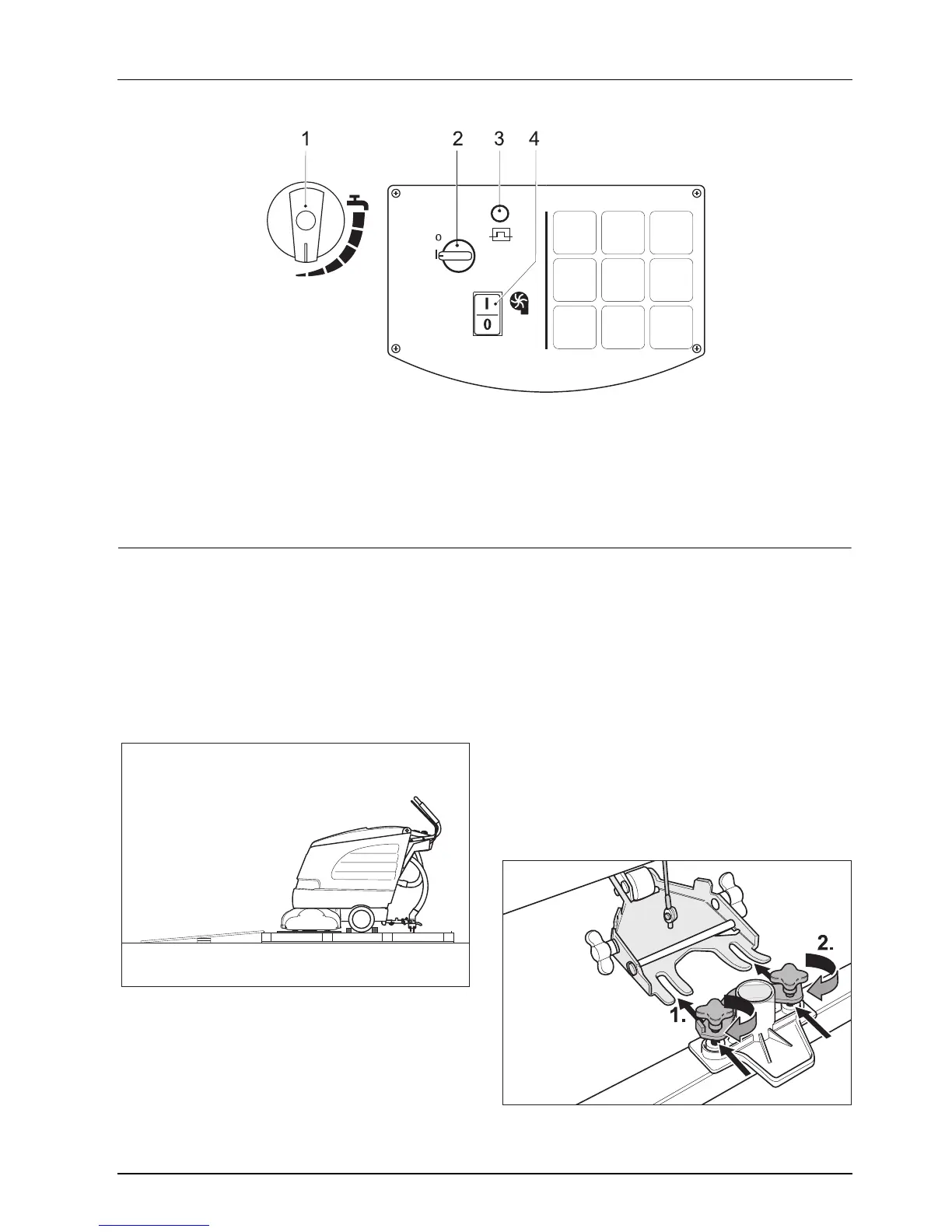

Instrument panel
1 Detergent metering
2 Master switch
3 Overload fuse
4 Suction turbine switch
Before switching on the unit
Unloading the unit
n Attach push handle with the 4 supplied
screws and fit the caps.
n Place the long, lateral planks from the
packaging on the pallet and form
a ramp.
n Secure the planks with nails.
n Support the ramp by placing the shorter
planks underneath.
n Remove the wooden laths.
n Raise the cleaning head and remove
the cardboard packaging.
n The unit can now be moved down the
ramp.
Attaching the suction bar
n Insert the suction bar into the suction-
bar suspension device, ensuring that the
profiled sheet is situated over the
suspension device.
n Tighten the star knobs.
n Attach the suction hose.
