PUTING THE MACHINE INTO OPERATION STEP BY STEP
HOW TO PREPARE YOUR EQUIPMENT

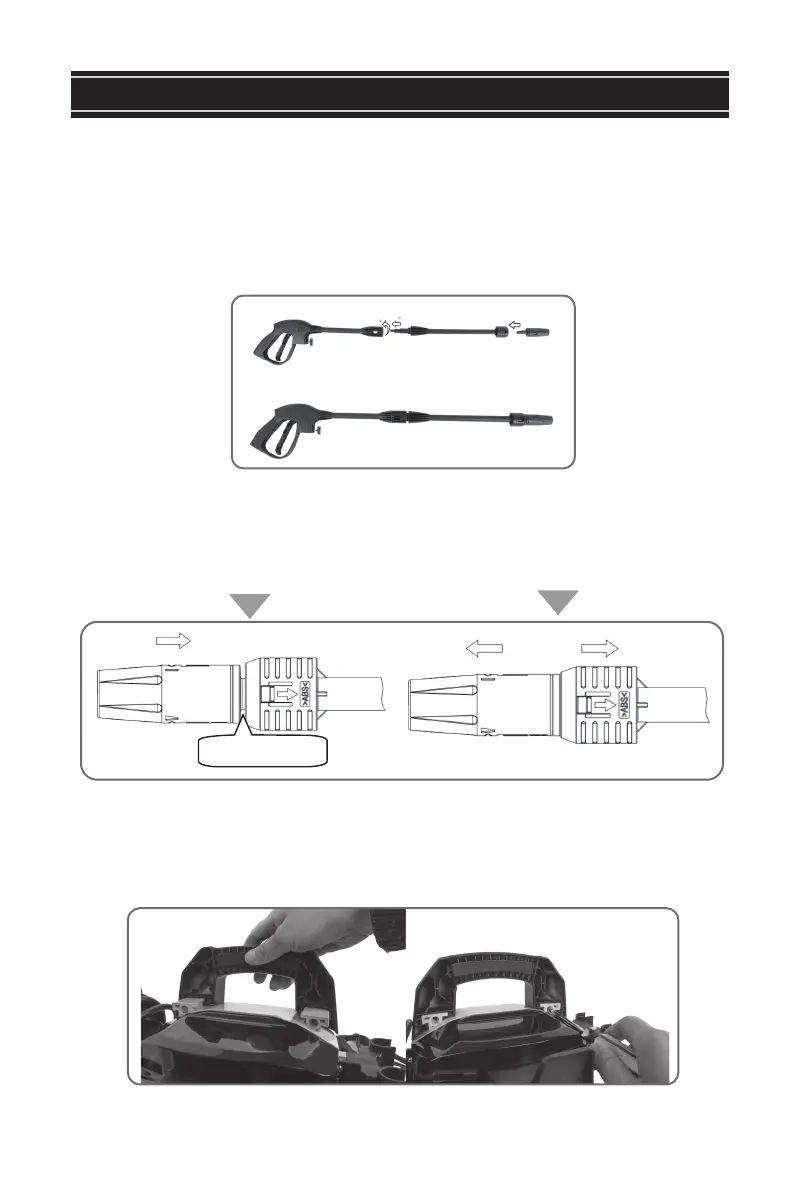

1. Attach gun, quick connect lance and adjustable nozzle
A. Attach quick connect lance to gun
Note: When connecting, align the two protrusions on the lance with the slots on the
gun.
B. Attach the adjustable nozzle to the spray lance.
Push the nozzle in until
there is no gap.
（1） （2）
Procedure to connect/disconnect the nozzle from the lance
（1）The connection of the nozzle is carried out by
means of suitable. To connect them, place the
nozzle to the cavity of the lance, so that there is
no space between them.
（2）To disconnect, hold the nozzle and lance
tip with both hands and pull them in the
reverse direction to disconnect the nozzle.
2. Handle assembly
Screw the handle to the main unit (2 M4*16mm screws for Kärcher Compacta and
Kärcher Practica Black/ 2 M4*22mm screws for Kärcher Wash Jet).
Note: The screws are packed with the manual. Please check and look for them during
unpacking (tool is not supplied).
*Illustrative image, the client must follow according to the model purchased
