Kärcher CV 38/2 User Manual

English 5
Use only three-wire extension cords that
have three-prong grounding-type plugs and
three-pole receptacle that accepts the ap-
pliance’s plug. Replace damaged or worn
cord immediately.

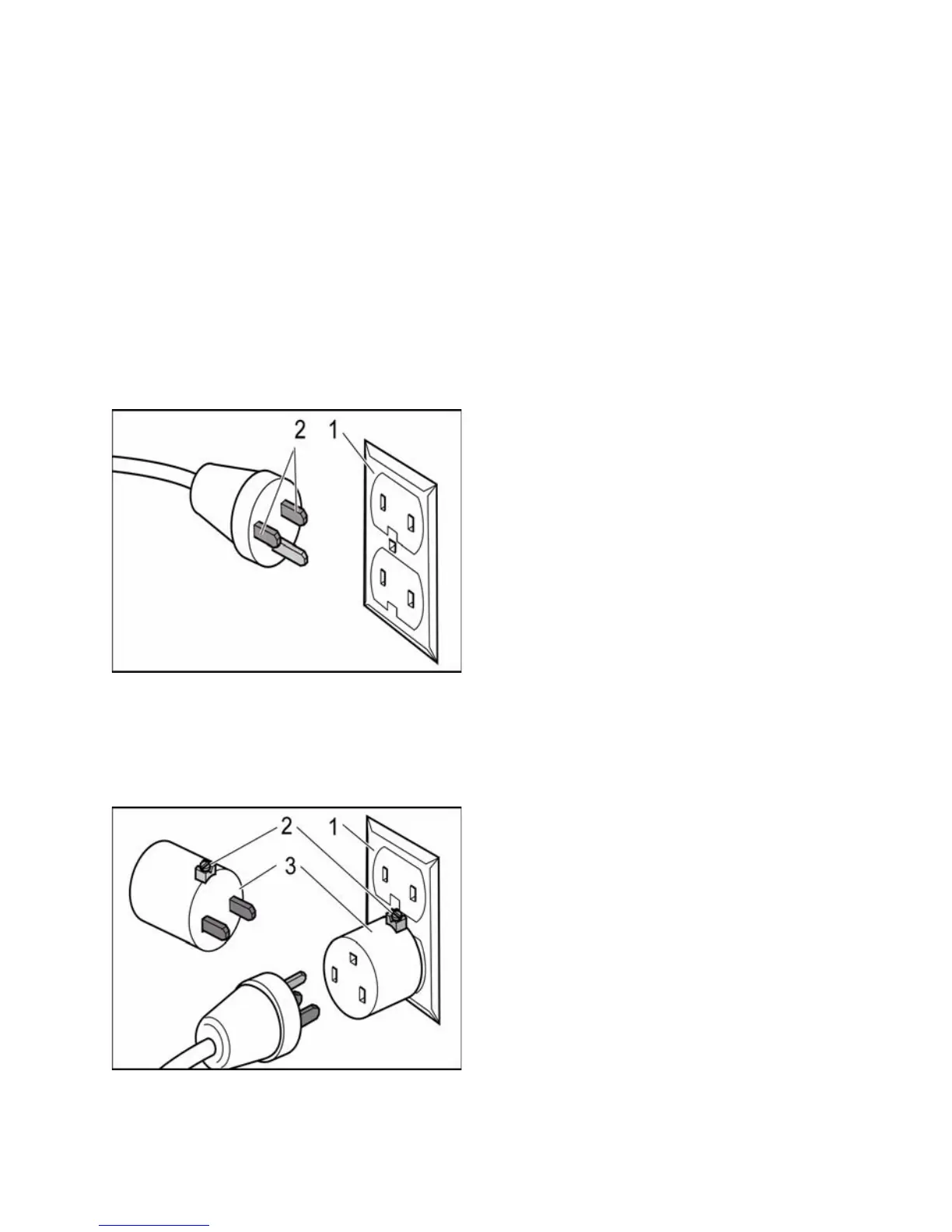

Figure A
1 Grounded outlet box
2 Current carrying prongs
Grounding prong is longest of the 3 prongs
Figure B
1 Grounded outlet box
2 Grounding means
3 Adapter
Note:
In Canada, the use of a temporary adapter
is not permitted by the Canadian Electrical
Code.
In a double-insulated appliance, two sys-
tems of insulation are provided instead of
grounding. No grounding means is provid-
ed on a double-insulated appliance, nor
should a means for grounding be added to
the appliance. Servicing a double-insulated
appliance requires extreme care and
knowledge of the system, and should be
done only by qualified service personnel.
Replacement parts for a double-insulated
appliance must be identical to the parts
they replace.
NEVER REMOVE GROUNDING PRONG
FROM POWER PLUG.
EXTENSION CORDS
DO NOT ATTEMPT TO REPAIR POWER
CORD.
Servicing of double-insulated appliances

Kärcher CV 38/2 Specifications

General

Motor power	- W
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Maximum input power	850 W
Annual energy consumption	37.4 kWh
Airflow	40 l/s
Product type	Upright vacuum
Dust capacity	5.5 L
Product color	Black, Grey
Tube material	-
Dust container type	Dust bag
Standard nominal width	- mm
Noise level	80 dB
Cleaning surfaces	Carpet
Vacuum air filtering	HEPA
Dirt separating method	Filtering
Working width (standard brush)	380 mm
Cord length	12 m

Weight and Dimensions

Depth	391 mm
Width	351 mm
Height	1215 mm
Weight	9500 g
Weight (without accessories)	8700 g
