Kärcher HD 5 12 - Internal Components - Front View; Components with Front Cover Removed

New Unit Information 02.2004
HD 5/12 Unit functions
Page 5 / 12
1 Electrical box
2 Unit switch
3 Cleaning agent hose
4 Mains connection cable
5 Cleaning agent connection with non-
return valve
6 High-pressure connection

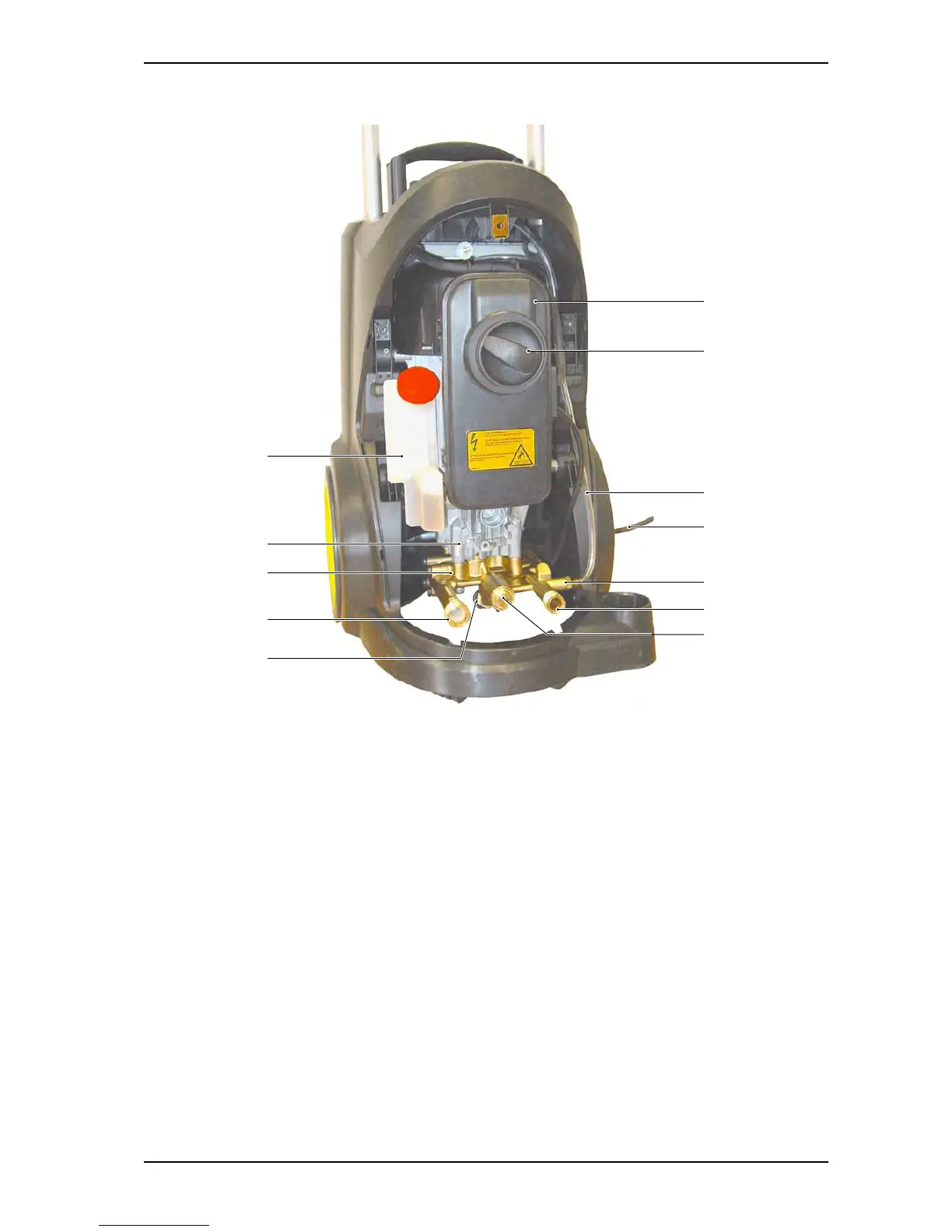

View from the front, cover removed
7 Overflow valve
8 Pressure switch
9 Water connection with strainer
10 Cylinder head
11 Motor housing
12 Oil reservoir
1
2
3
4
5
6
9
10
11
12
7
8
