Kärcher HDS 9/18 M Service Manual

English 5.906-432.0 Rev. 00 (06/15) 69

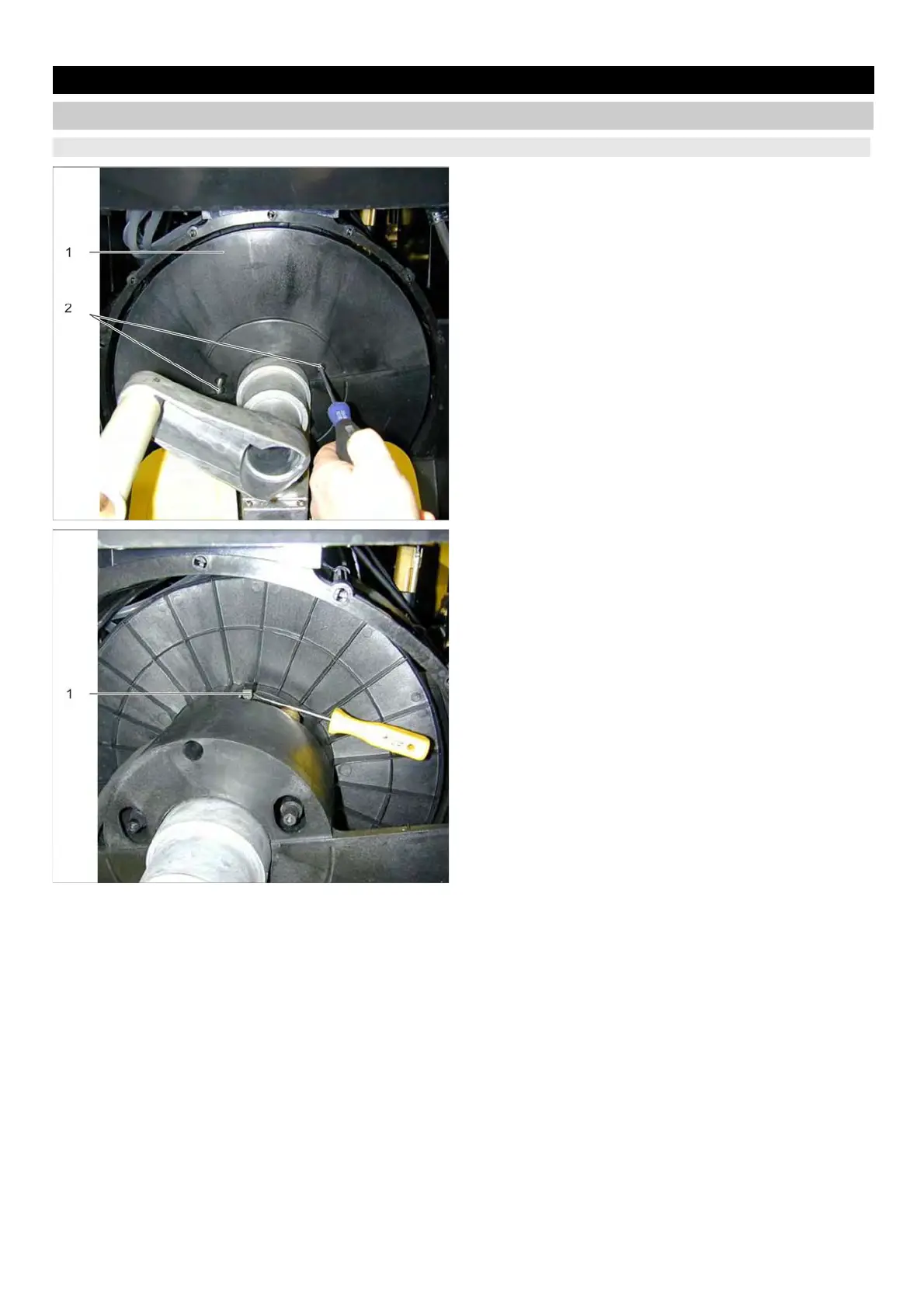

1 Casing shell, hose reel
2 Screws
 Release pressure.
 Unwind the HP hose from the hose reel.
 Unscrew the screws.
 Remove the casing shell.
1 Clip
 Lever out the clamp.
 Pull out the hose.
 Take a new hose through the hose guide and the de-
flection pulley.
 Slide the hose into the union piece of the hose reel and
secure by means of the clamp.
7 Basic settings and service procedures
7.1 Remove the hose drum
7.1.1 Uninstall / install high-pressure hose

Kärcher HDS 9/18 M Specifications

General

Type	Hot Water High-Pressure Cleaner
Voltage	400 V
Frequency	50 Hz
Fuel Tank	25 l
Hose Length	10 m
Detergent Tank	20 l
Nozzle Included	Power nozzle
