Kärcher HDS Series User Manual

10
Operations

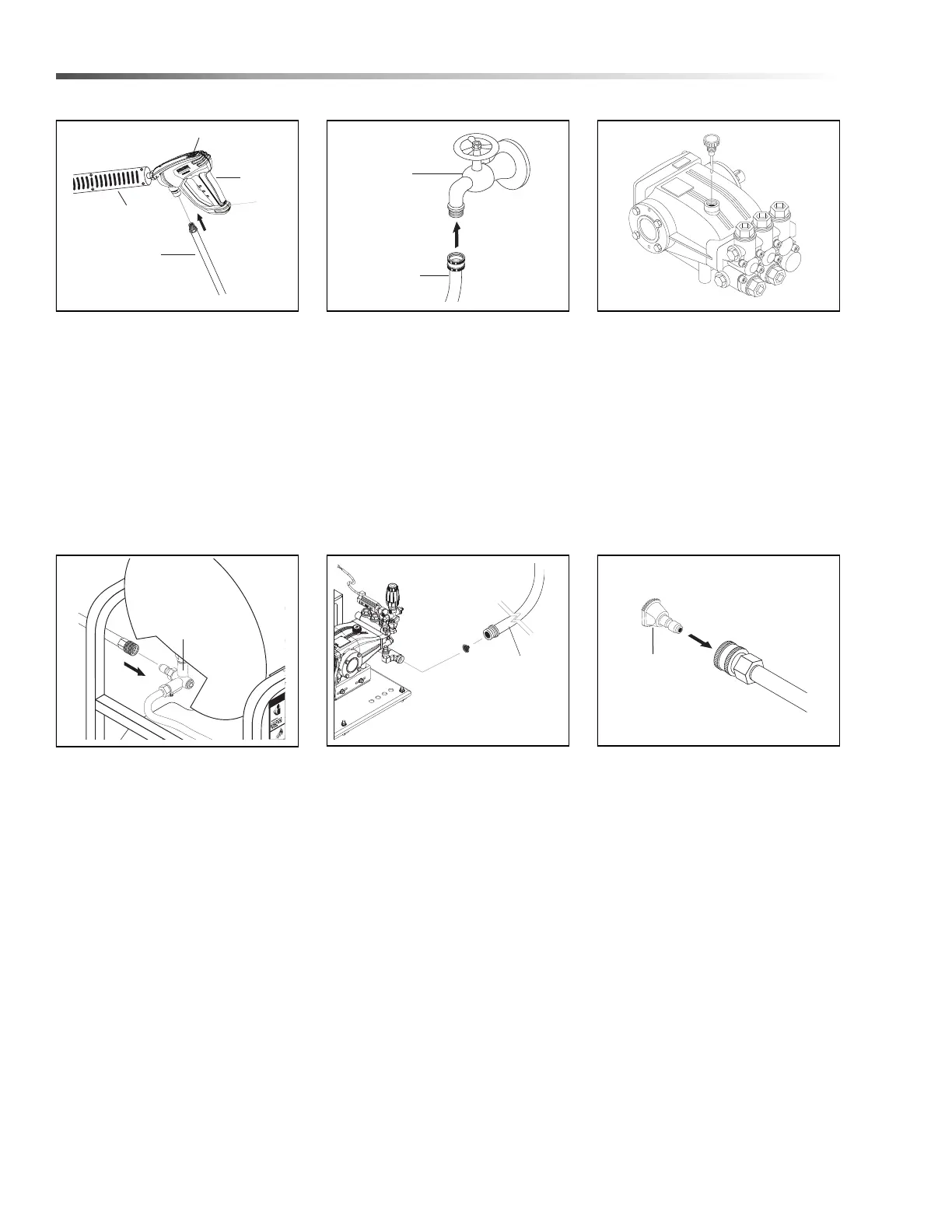

Assembly Instructions
STEP 1: Attach wand and hose to
the spray gun using teflon tape on
threads to prevent leakage.
CAUTION: Never replace nozzles
without engaging the safety
latch on the spray gun trigger.
ATTENTION: Ne jamais
remplacer les buses sans
d'abord mettre le dispositif de
sécurité sur la détente du
pistolet pulvérisateur.
STEP 4: Connect the high pressure
hose to the pump discharge fitting.
Thread twist connect to discharge
fitting by turning clockwise.
STEP 2: Connect garden hose to
the cold water source.
STEP 5: Check inlet filters, remove
debris, then connect the water
supply hose to the float tank inlet
swivel connector and turn on water
supply.
CAUTION: Do not run the pump
without water or pump damage
will result.
ATTENTION: Ne pas faire
fonctionner la pompe sans eau
ou des dégâts de pompe se
produiront
STEP 3: Remove shipping cap and
install oil dipstick (Depending on
type of shipping, dipstick may
already be installed). Check pump
oil level by using dipstick or
observe oil level in oil window (if
equipped). Use SAE 10W-40
weight oil, non-foaming oil.
Note: Before installing pressure
nozzle in wand coupler, run
machine allowing water to flush
through the system until clear.
STEP 6: Remove wand end and
first place the o-ring followed by the
high pressure nozzle as shown.
Replace end of wand.
Spray
Gun
High
Pressure
Hose
Safety Latch
Wand
Pump
Discharge
Cold
Water
Source
Garden
Hose
Garden
Hose
Wand
High Pressure
Nozzle
9.808-341.0 - E - Operator's Manual, LFT
