9
Operations

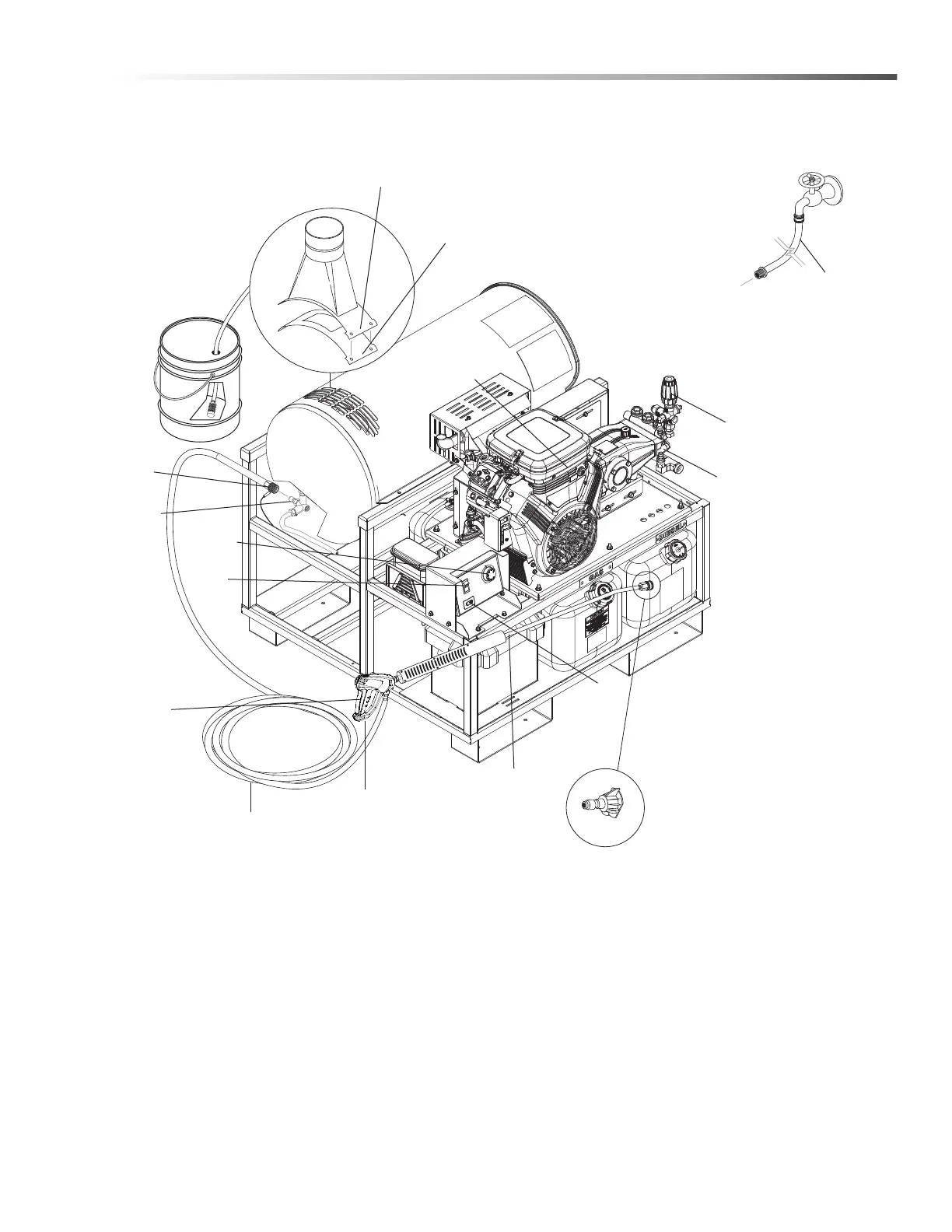

Component Identification
Pump — Delivers a specific gpm to the high pressure
nozzle which develops pressure.
Spray Gun — Controls the application of water and
detergent onto cleaning surface with trigger device.
Includes safety latch.
Unloader Valve— Safety device which allows
pressure to be released when spray gun is closed.
High Pressure Hose — Connect one end to water
pump discharge nipple and the other end to spray gun.
Adjustable Thermostat — Safety control which
prevents temperatures from going above adjustable
setting.
Wand — Must be connected to the spray gun.
NOTE: If trigger on spray gun is released for more
than 2 minutes, warm water will discharge from pump
protector onto floor. This system prevents internal
pump damage.
NOTE: If flue adapter is installed, the burner
assembly air adjustment must be adjusted.
Outlet
High
Pressure
Hose
22mm
Coupling
Wand
Spray Gun
Trigger
Water
Supply Hose
(not included)
Flue Adapter
Optional 7-10049
Insulation Gasket
Optional 7-01471
Burner
Switch
Hour
Meter
Adjustable
Thermostat
Unloader Valve
Detergent
Valve
Pump
9.808-341.0 - E - Operator's Manual, LFT
