Kärcher HDS Series User Manual

419.808-341.0 - E - Operator's Manual, LFT

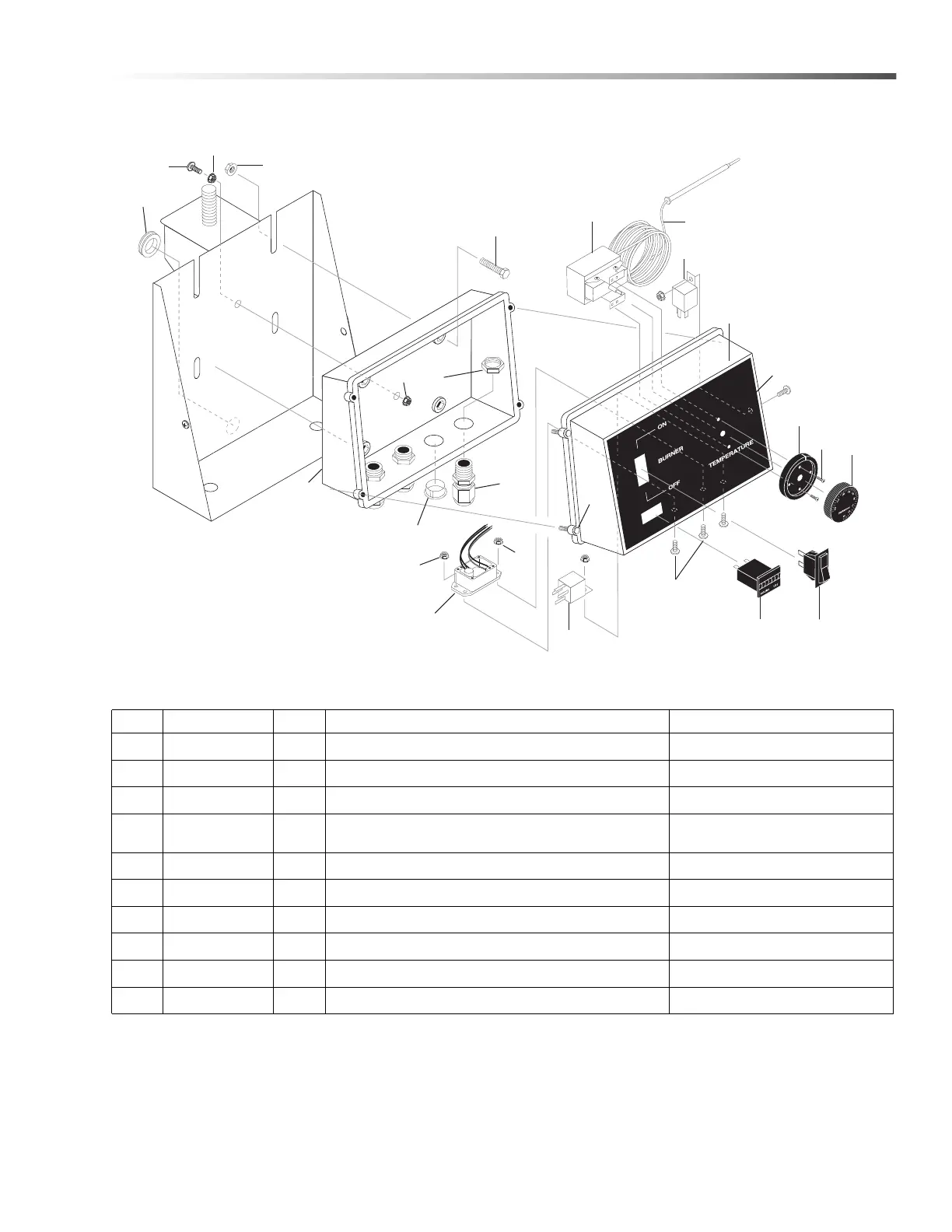

Control Panel
REF PART NO. QTY DESCRIPTION NOTES
1 8.716-223.0 1 HOLDER, FUSE
2 9.803-249.0 4 SCREW, M4 X 10
3 9.802-064.0 1 GROMMET, RUBBER NOZZLE HOLDER
4 9.802-762.0 1 SCREW, 10/32" X 1-1/41
5 8.706-745.0 1 PLUG, PLASTIC
6 9.802-700.0 4 BOLT, 1/4" X 3/4" NC HH
7 9.802-480.0 1 BOX, PLASTIC, BACK
8 9.802-514.0 4 STRAIN RELIEF, STRAIGHT, LQ TITE
9 8.750-095.0 1 THERMOSTAT, 2 METER LG CAP, HOTSY
10 9.802-695.0 20 NUT, 10/32" KEPS
22
7
6
21
23
9
13
12
14
18
19
20
1716
15
12
11
8
10
4
10
2
3
5
10
10
