Karel MS128 Installation & Maintenance Guide
Edition 3.2
23

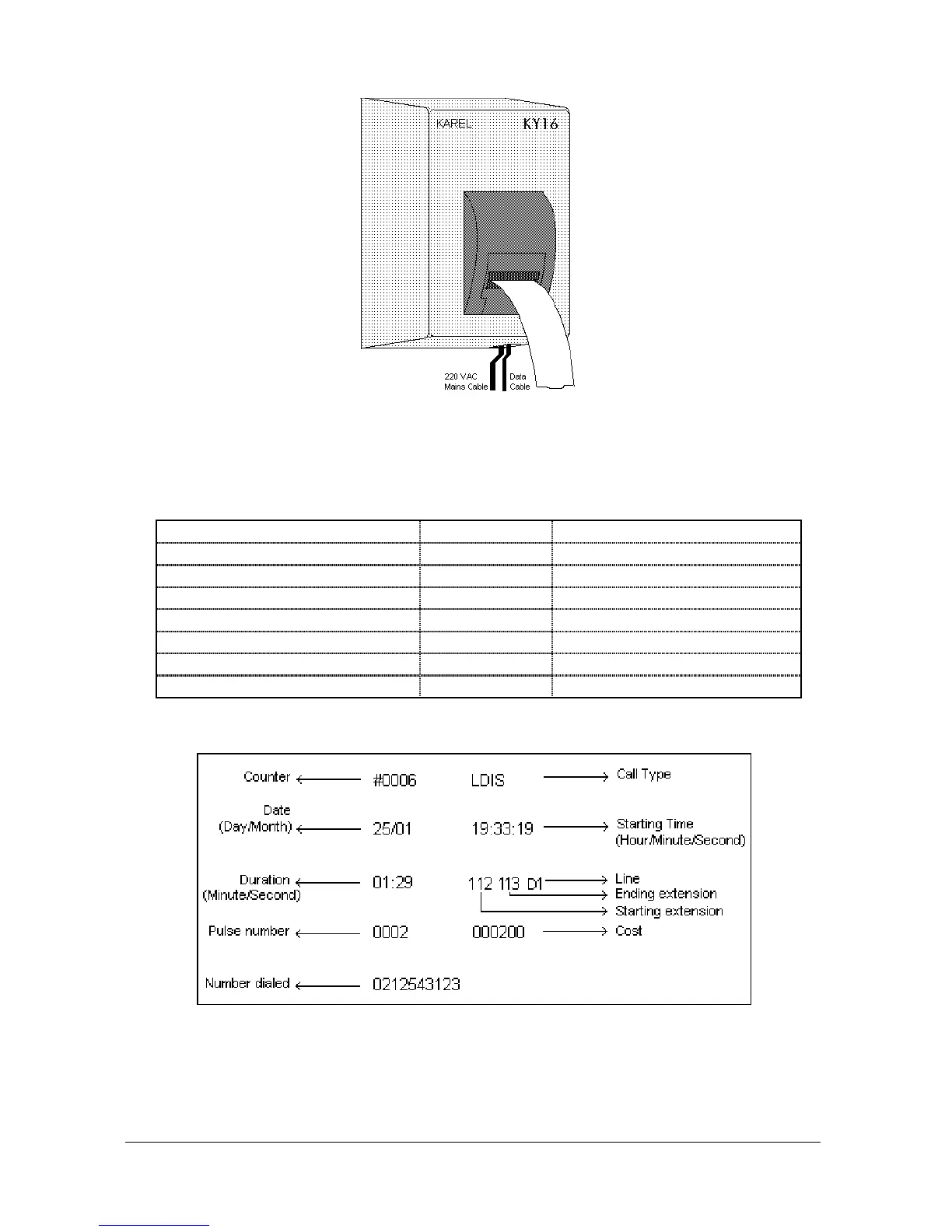

Figure A-18
The data cabling of KY16 is made via the 6-pin RJ socket (the same socket used
by consoles) on the MS128 CPUKON card. The signaling between the system and
KY16 is illustrated in the following table :
MS128 CPUKON Card KY16 Card
Console Connector Pin No Signal Connector Pin No
1 +12 VDC -
2 Busy 2
3 - -
4 - -
5 GND 1
6 Data 3
Below is a sample printout of KY16 :
Figure A-19
The dimensions of KY16 are 15 cm x 20.5 cm x 9 cm and the weight is 1.3 kg.
