Karel MS128 Installation & Maintenance Guide
Edition 3.2
33
MS128 CPUKON Card PG100 Card
Console Connector Pin No Signal RJ Socket Pin No
1 +12 VDC 6
2 Busy -
3 - -
4 - -
5 GND 2
6 Data 1
The input of +8 VDC is regulated to +5 VDC by PG100.
PG100 can also be connected directly to mains voltage through a 12 VDC power
adaptor. Normally, PG100 receives power over the data cable. However, if the data
line of the system is overloaded due to the existence of many OP48(-H) and
LT48(-H) telephones or DSS40 and DSS80 modules connected to the system, it is
preferable to feed PG100 over the power adaptor that is to be procured locally.
The dimensions of PG100 are 24 cm x 19 cm x 4.5 cm and the weight is 0.5 kg.
II.9. STANDARD TELEPHONE SETS
Any ordinary telephone set, may be DP or DTMF, can be connected to MS128
system including KAREL’s own Ladin and Fulya telephone sets, which are both DP/
DTMF switchable.

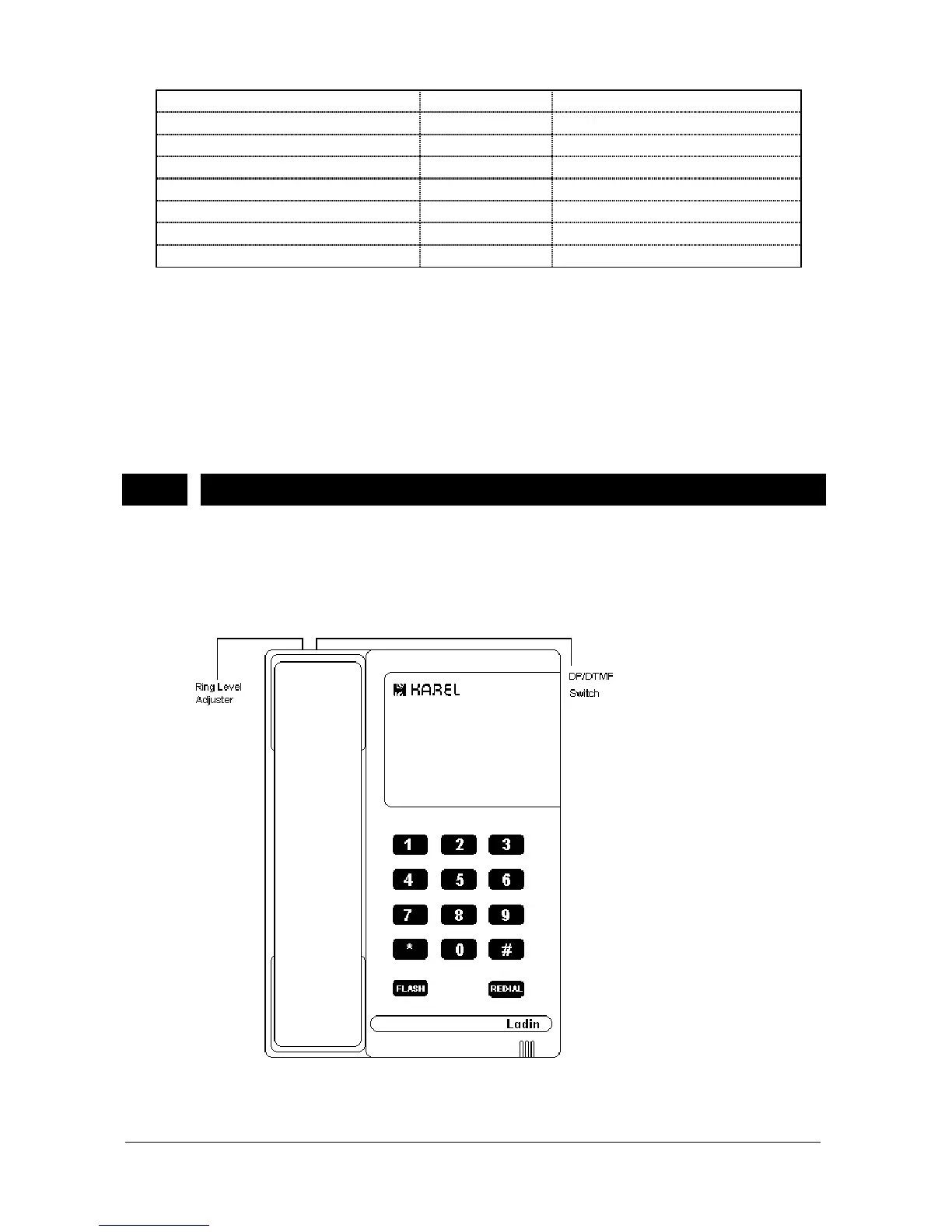

The following figure illustrates the outlook of Ladin.
Figure A-25
