Karel MS128 Installation & Maintenance Guide
Edition 3.2

58
• D
IP
-
SWITCH SETTING
For KY16 to operate with MS128 system, the dip-switches that exist on the
printer card inside the KY16 cabinet must be set as follows:
Dip-switch Position
1 OFF
2 OFF
3 ON
4 ON
• P
APER ROLL
&
PRINTER RIBBON
Replacing the paper roll or the printer ribbon is very easy by way of the mobile
front cover of the cabinet.
To replace the paper roll:
1) Pull out the black front cover from the upper side.
2) Take out the old paper roll with the cylindrical bar fixing it in the slot.
3) Place the new roll on the bar.
4) Place the bar into its slot.
5) Fix the free end of the paper to the print head.
6) Close the front cover.

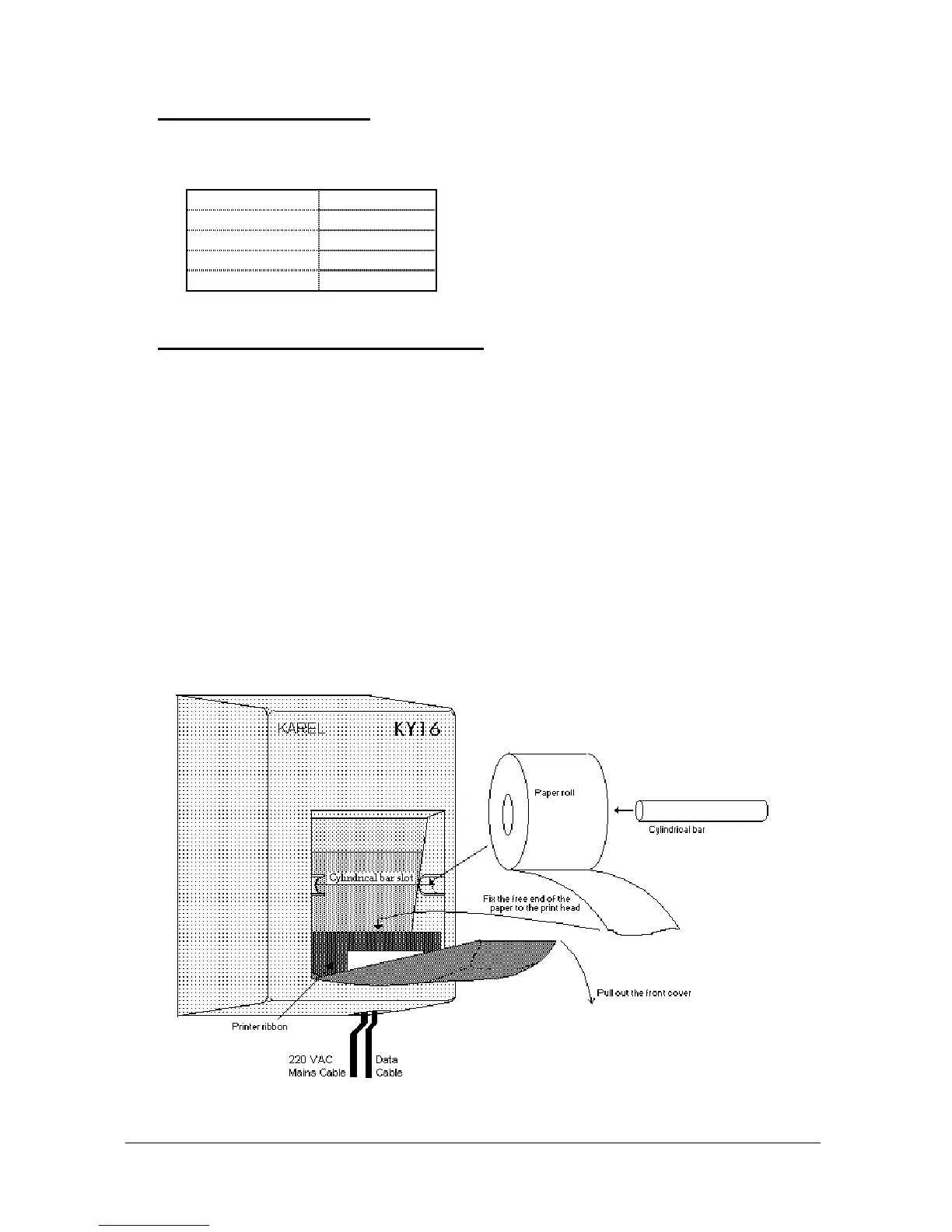

Placing a new paper roll in KY16 is illustrated in the following figure.
Figure B-14
