Karma Flexx HD - Seat Height Adjustment (14 Wheels)

39

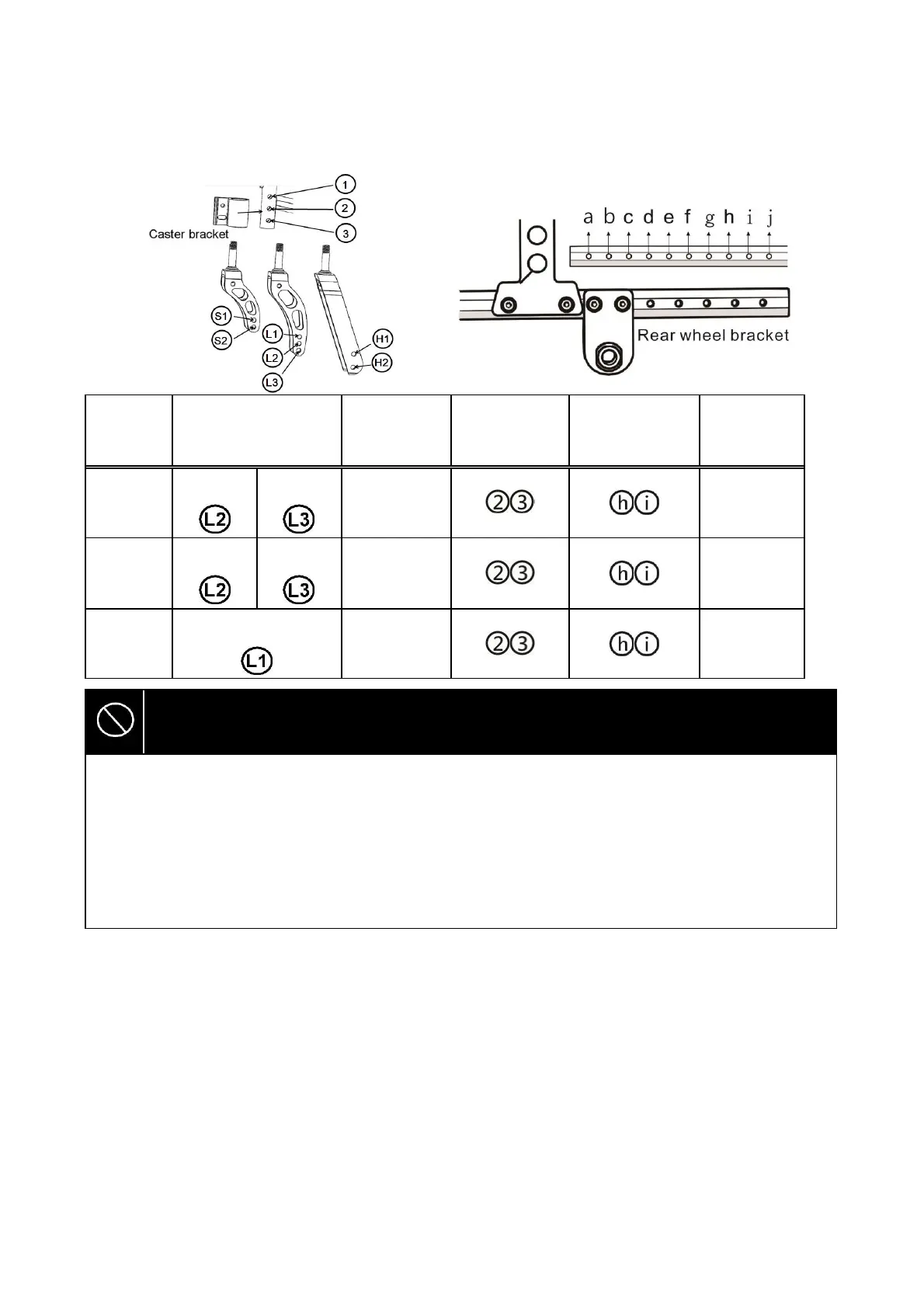

5.3.3 Seat Height Adjustment for 14" Rear Wheels
Caster Position
Rear Wheel Position
Seat
Height
Caster Size
Caster Position
Rear
Wheel
Caster
Bracket
Rear Wheel
Bracket
Seat
Angle
508 ㎜
(20")
8"
7"
14"
7.2〫
483 ㎜
(19")
7"
6"
14"
4.0〫
457 ㎜
(18")
6"
14"
1.5〫
WARNING:
● Set the Flexx HD/ Flexx Tall at the positions specified in the above
sections of 5.3.1, 5.3.2 and 5.3.3.
● Anti-tippers MUST be equipped to your wheelchair when the axle plate
setting is at Active position mentioned in the Section 5.3.1.
● Both rear wheels should be set at the same position.
● Any wheel position change should ONLY be performed by your local
dealers or approved therapists.
