at the side of the footplate. (Figure 5-12)
5.3.3.2 Adjust the footplate height and re-tighten the bolt.
CAUTION
●When adjusting the footrest or the footplates, the user's legs should be
supported or kept safe from possible injury.
5.3.4 Armrest Height Adjustment
In order to position the user's arms and shoulders correctly, the armrests
are adjustable in height by 7 cm from 18 cm above the seat rail to 25 cm.
Use the #5 Allen Key Wrench from KARMA Tool Kit to loosen the height
adjustment bolts under the armrest pad (Figure 5-13). Adjust the
armrest to the proper height. Finally, re-tighten the bolts. (Figure 5-14)

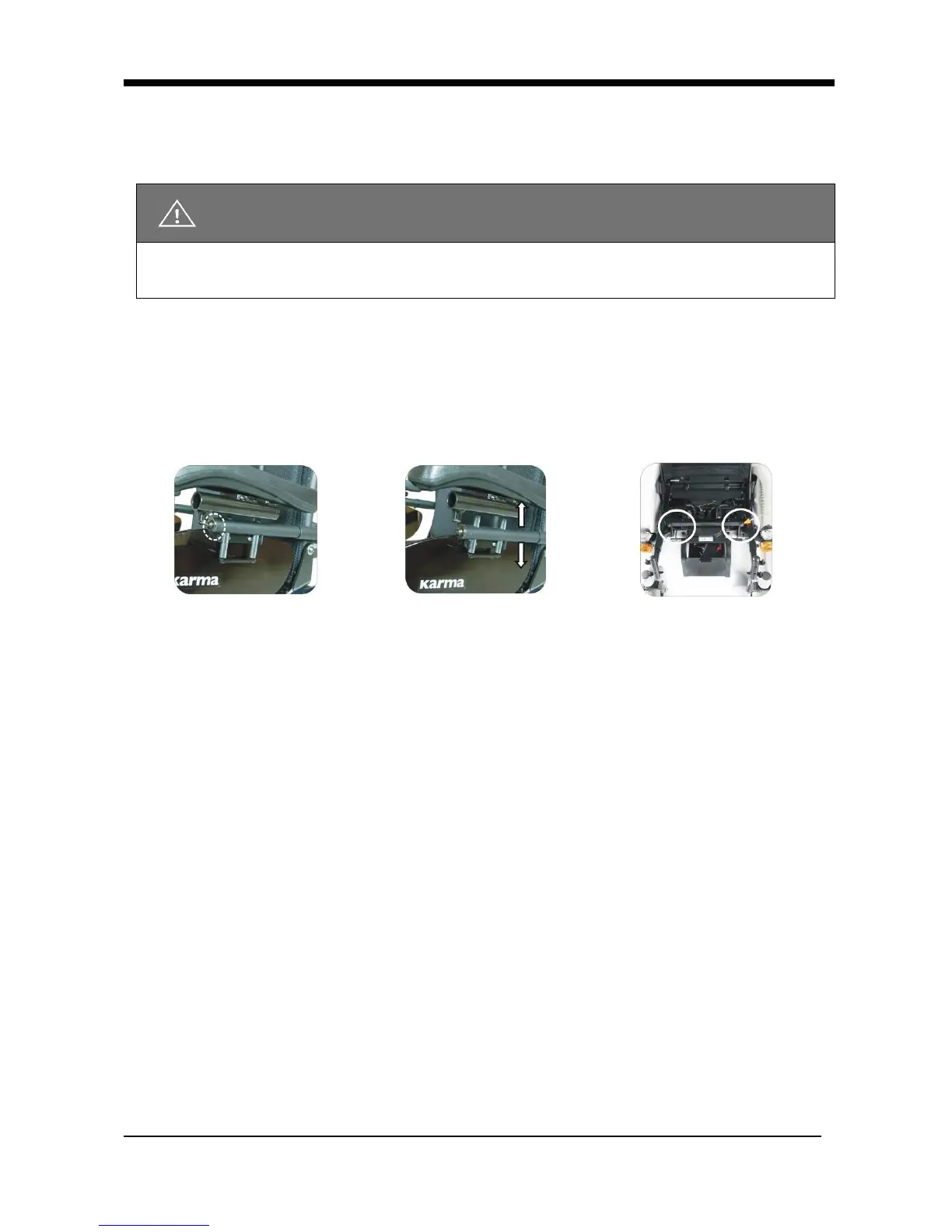

Figure 5-13
Figure 5-14
Figure 5-15
5.3.5 Seat Forward or Backward Adjustment (Seat Depth)
5.3.5.1 Use the #5 Allen Key Wrench from KARMA Tool Kit to loosen the two
bolts under the seat. (Figure 5-15).
5.3.5.2 There are five evenly spaced holes for incremental adjustments which
is in increments of 2.54 cm. The total range of adjustment is 7.5 cm.
(Figure 5-16).
5.3.5.3. Move the seat forward or backward to the desired position. (See
Figure 5.17).
5.3.5.4 Re-tighten the bolts.
5.3.6 Backrest Angle Adjustment
5. 3.6.1 The knobs for adjusting the backrest angle are at the both sides in
the lower back of the backrest. (Figure 5-18)
5. 3.6.2 Hold the backrest frame with one hand, and use #13 closed spanner
to remove both the knobs and the nuts with the other hand. Adjust
the backrest angle to your desired angle.(See Figure 5-19)
