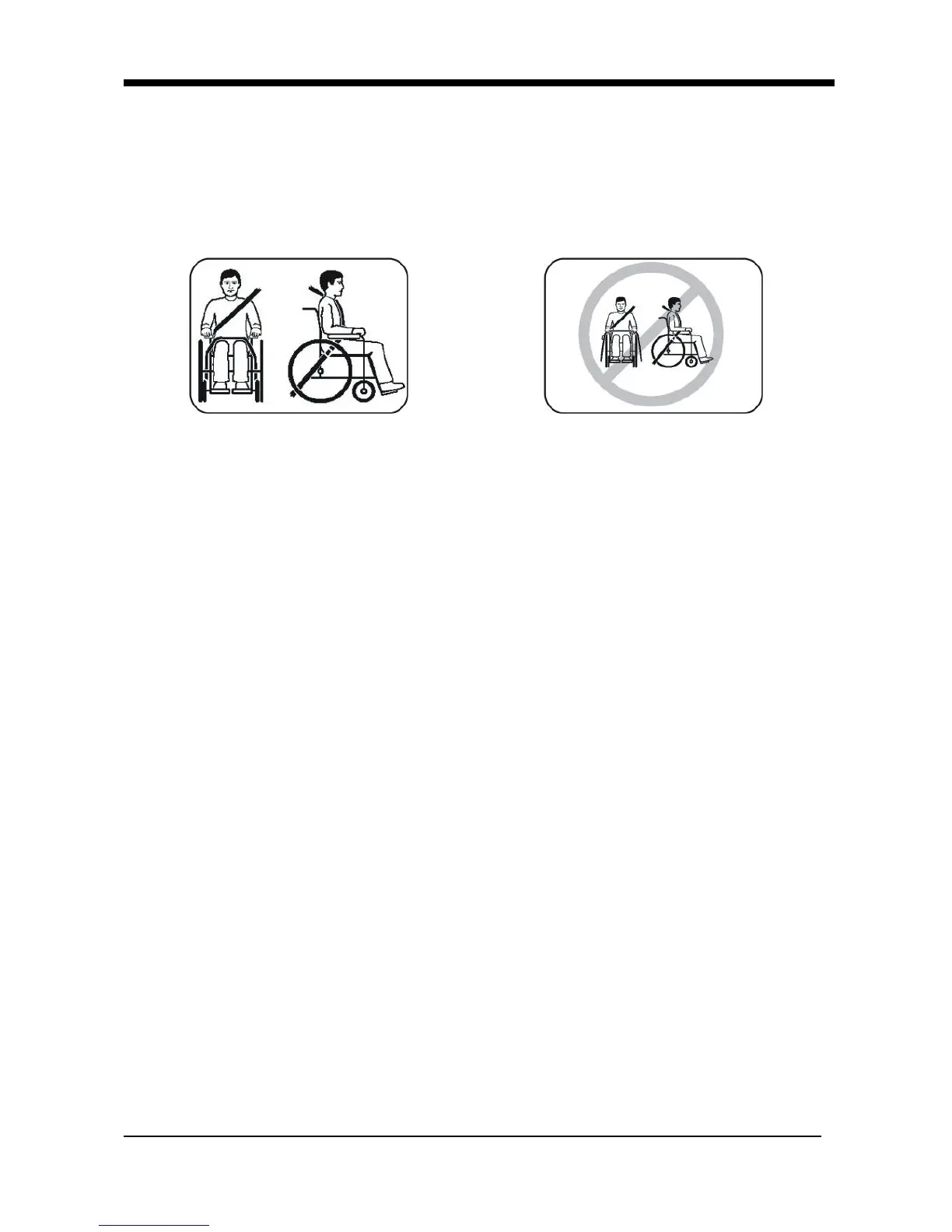

body near the junction of the thigh and pelvis as pictured below
(correct seat belt position).
5.3.12.5.4 Restraints should not be held away from body by wheelchair
components such as armrest or wheels as pictured below
(Incorrect seat belt position).
6. BATTERIES AND CHARGER
6.1 Charging the Batteries
Before you attempt charging, ensure you read and understand the
instruction manual supplied with the battery charger, and you choose the
correct input voltage for battery charger.
6.2 Charge the Batteries If Any of the Following Conditions Occurs
6.2.1 You have used your wheelchair for more than an hour continuously.
6.2.2 You've used more than one quarter of the total charge.
6.2.3 When you haven't used the wheelchair for more than two weeks.
6.2.4 If the current charge is not enough to reach your final destination.
6.3 Be Sure to Precisely Follow the Procedures Listed Below.
6.3.1 Turn the wheelchair OFF.
6.3.2 Connect the charger's cord to a power outlet.
6.3.3 Then connect the charger's round plug(Figure 6-1) to the charging
socket. (Figure 6-2)
6.3.4 The orange LED will light up as soon as the charging starts. The
charging time is at least 8 hours, but it could be as long as 12 hours,
depending on the status of the batteries and the temperature.
6.3.5 The orange LED will change to green when the charging is completed.
