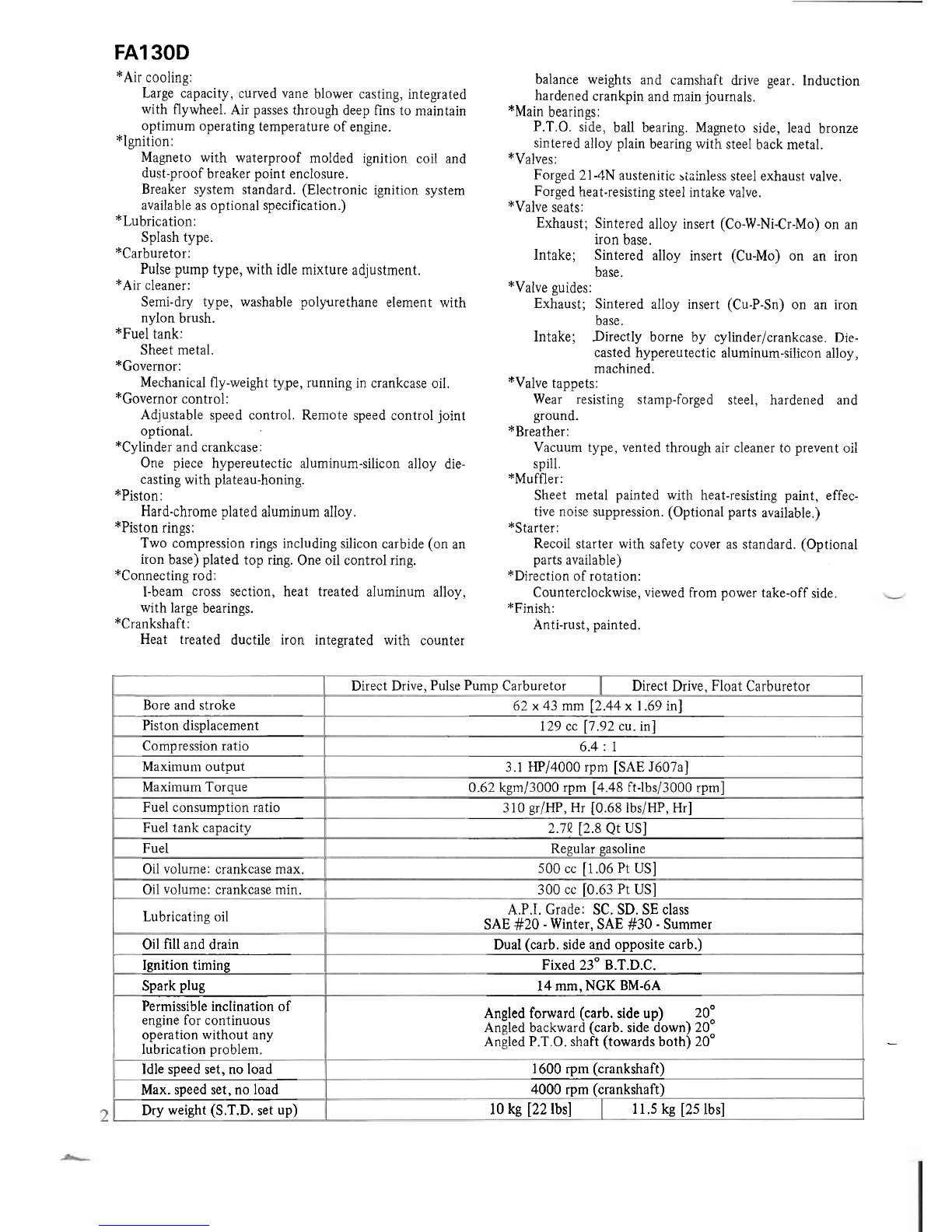

FA1
30D
*Air cooling:
Large capacity, curved vane blower casting, integrated
with flywheel. Air passes through deep fins to maintain
optimum operating temperature of engine.
*Ignition:
Magneto with waterproof molded ignition coil and
dust-proof breaker point enclosure.
Breaker system standard. (Electronic ignition system
available as optional specification.)
*Lubrication:
Splash type.
*Carburetor:
Pulse pump type, with idle mixture adjustment.
*Air cleaner:
Semi-dry type, washable polyurethane element with
nylon brush.
*Fuel tank:
Sheet metal.
*Governor:
Mechanical fly-weight ty,pe, running in crankcase oil.
"Governor control:
Adjustable speed control. Remote speed control joint
optional.
*Cylinder and crankcase:
One piece hypereutectic aluminum-silicon alloy die-
casting with plateau-honing.
"Piston:
Hard-chrome plated aluminum alloy.
*Piston rings:
Two compression rings including silicon carbide (on an
iron base) plated top ring. One oil control ring.
*Connecting rod:
I-beam cross section, heat
treated aluminum alloy,
with large bearings.
*Crankshaft:
Heat treated ductile iron integrated with counter
balance weights and camshaft drive gear. Induction
hardened
crankpin and main journals.
*Main bearings:
P.T.O. side, ball bearing. Magneto side, lead bronze
sintered alloy plain bearing with steel back metal.
*Valves:
Forged 21 -4N austenitic sizinless steel exhaust valve.
Forged heat-resisting steel intake valve.
*Valve seats:
Exhaust; Sintered alloy insert (Co-W-Ni-Cr-Mo) on an
iron base.
Intake;
Sintered alloy insert (Cu-Mo) on an iron
base.
"Valve guides:
Exhaust; Sintered alloy insert (Cu-P-Sn) on an iron
base.
Intake;
Directly borne by cylinder/crankcase. Die-
casted hypereutectic aluminum-silicon alloy,
machined.
*Valve tappets:
Wear resisting stamp-forged steel, hardened and
ground.
*Breather:
Vacuum type, vented through air cleaner to prevent oil
spill.
"Muffler:
Sheet metal painted with heat-resisting paint, effec-
tive noise suppression. (Optional parts available.)
"Starter:
Recoil starter with safety cover as standard. (Optional
parts available)
*Direction of rotation:
Counterclockwise, viewed from power take-off side.
"Finish:
Anti-rust, painted.
Bore and stroke
Piston displacement
Compression ratio
Maximum output
Maximum Torque
Fuel consumption ratio
Fuel tank capacity
Fuel
Oil volume: crankcase max.
Oil volume: crankcase min.
Lubricating oil
Oil fill and drain
Ignition timing
Spark plug
Permissible inclination of
engine for continuous
operation without any
lubrication problem.
Idle speed set, no load
Max. speed set, no load
Dry weight (S.T.D. set
up)
Direct Drive, Pulse Pump Carburetor
Oil fill and drain
Ignition timing
Spark plug
Permissible inclination of
Idle speed set, no load
Max. speed set, no load
Dry weight (S.T.D. set
up)
Direct Drive, Float Carburetor
62
x
43 mm [2.44
x
1.69 in]
129 cc
[7.92 cu. in]
6.4
:
1
3.1
HP/4000 rpm [SAE J607al
0.62 kgm/3000 rpm [4.48 ft-lbs/3000 rpm]
3 10
gr/HP, Hr [0.68 Ibs/HP, Hr]
2.7Q [2.8 Qt US]
Regular gasoline
500 cc [1.06 Pt US]
300 cc
[0.63 Pt US]
-
A.P.I. Grade: SC. SD. SE class
SAE #20 -Winter, SAE #30
-
Summer
Dual (carb. side and opposite carb.)
Fixed 23" B.T.D.C.
14 mm, NGK BM-6A
Angled forward (carb. side up) 20'
Angled backward (carb. side down) 20°
Angled P.T.O. shaft (towards both) 20"
1600
rpm
(crankshaft)
4000 rpm (crankshaft)
-
10 kg [22 Ibs]
SC. SD. SE class
-
-
,,
-_
..
.,
SAE #30
-
Summer
Dual (carb. side and opposite carb.)
Fixed 23" B.T.D.C.
14 mm, NGK BM-6A
A
--1-2
c
2
(-
arb. side up) 20'
(carb. side down) 20°
ft (towards both) 20"
1600
rpm
(crankshaft)
4000 rpm (crankshaft)
11.5
kg
[25 lbs] 10 kg [22 Ibs] 11.5
kg
[25 lbs]
