LS30 CONTROLLER INSTALLATION AND OPERATING GUIDE
12
3.6 Analogue Output Connecons
For control of 'mA' outputs in case there is not automaon con-
necon measurement can be taken from 9&10 terminals of 'mA'
stage of measurement devices. The measurement values should
give results close to below menoned formula.
(for 4-20 mA) mA value = 0,16 x (% value on the display) + 4
(for 20-4 mA) mA value = 0,16 x (100 - % value on the display) + 4
- +

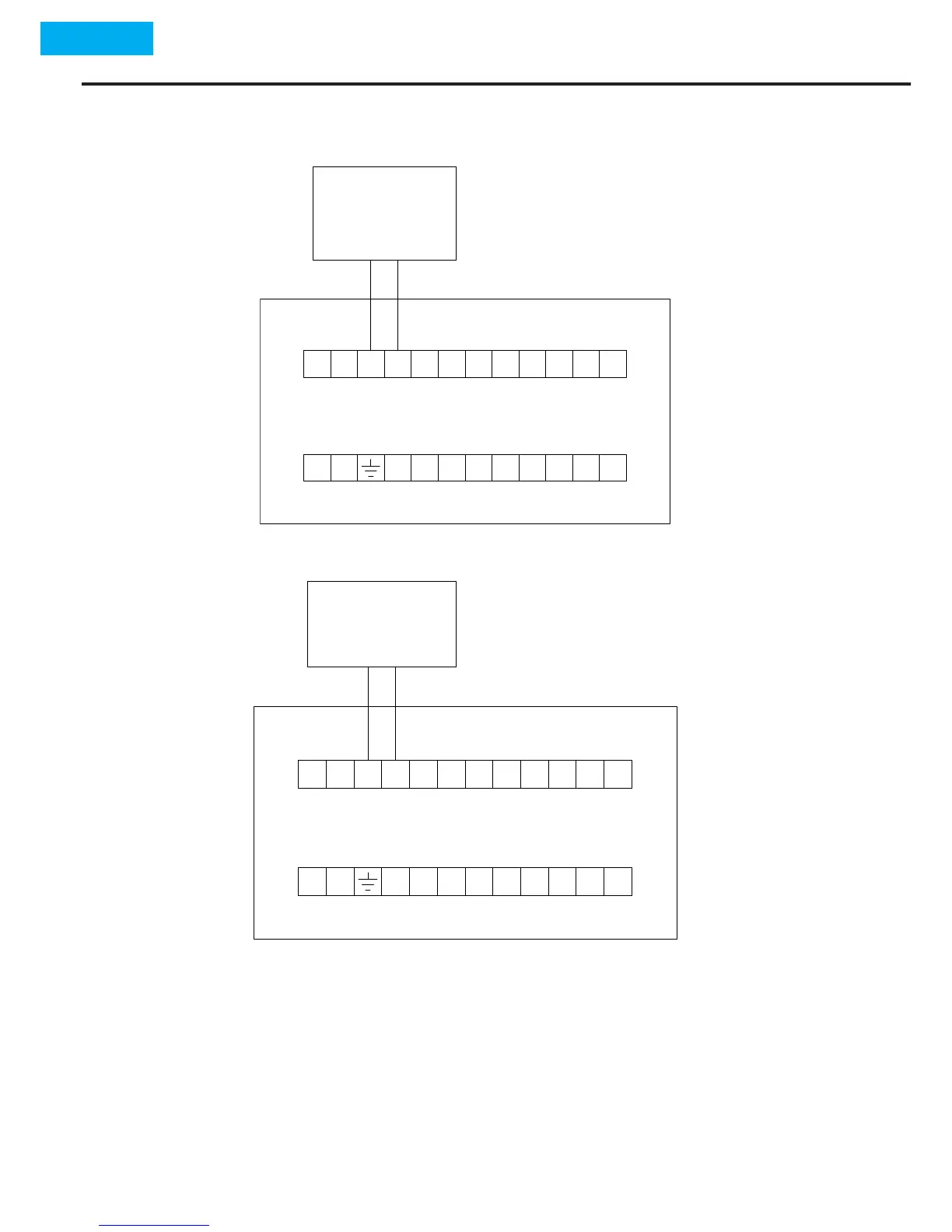

mA Output
12 11
10 9 8 7 3
2 1
L N 21
20 19 15
14
1318
17
16
- +
Automation System
or Monitoring Device
(Input Impedance
max. 500Ω)
- +
V Output
12 11
10 9 8
7
3
2 1
L N 21
20 19 15
14
1318
17
16
- +
Automation System
or Monitoring Device
