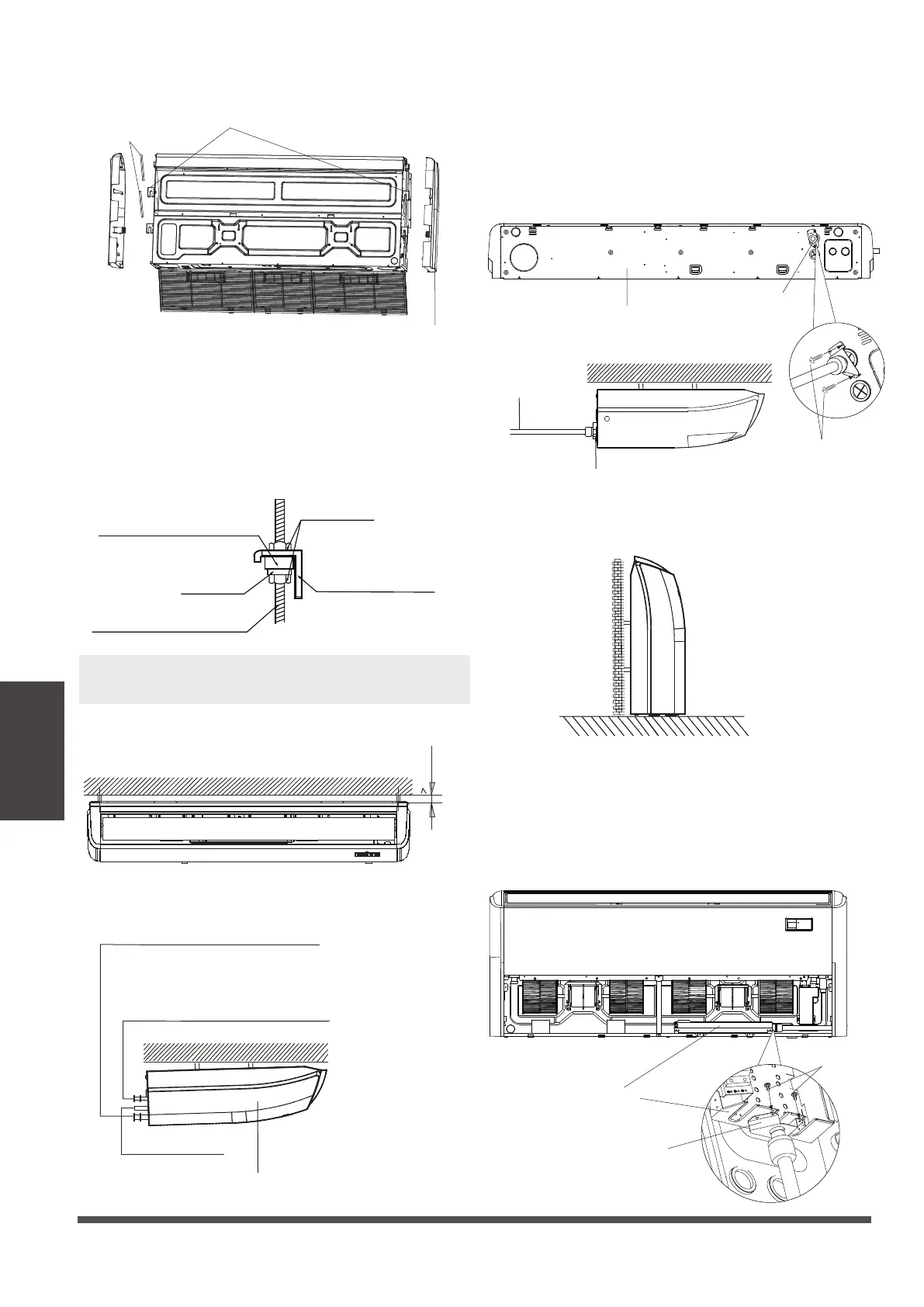

Indoor Unit Installation
8. Remove the side board and the grille.
Screw nut
Washer
Hanging screw bolt
Overhang part
Shockproof cushion
NOTE: Conrm the minimum drain tilt is 1/100 or
more.
9. Mount the indoor unit onto the hanging
screw bolts with a block.
Position the indoor unit on a at level by using
a level to prevent leaks.
Ceiling Installation
20mm
D. Refrigerant pipe
connection
(D.gas side)
Drain point
Downward slope between(1-2)/100
E. Refrigerant pipe
connection
(E. Liquid side)
The conduit
installation plate
Cord conduit
Side board
The conduit
installation plate
screws
(not supply)
screws
(not supply)
The conduit
installation plate
Chassis
Hanging arm
Hanging
screw bolt
Wall-Mounted Installation
How to install the conduit installation plate
(if supplied)
1. Fix the sheath connector (not supply) on the
wire hole of the conduit installation plate.
2. Fix the the conduit installation plate on the
chassis of the unit.
How to install the conduit installation plate
(if supplied)
1. Fix the sheath connector (not supply) on the
wire hole of the conduit installation plate.
2. Fix the conduit installation plate on the electric
control box.
The electric control box
