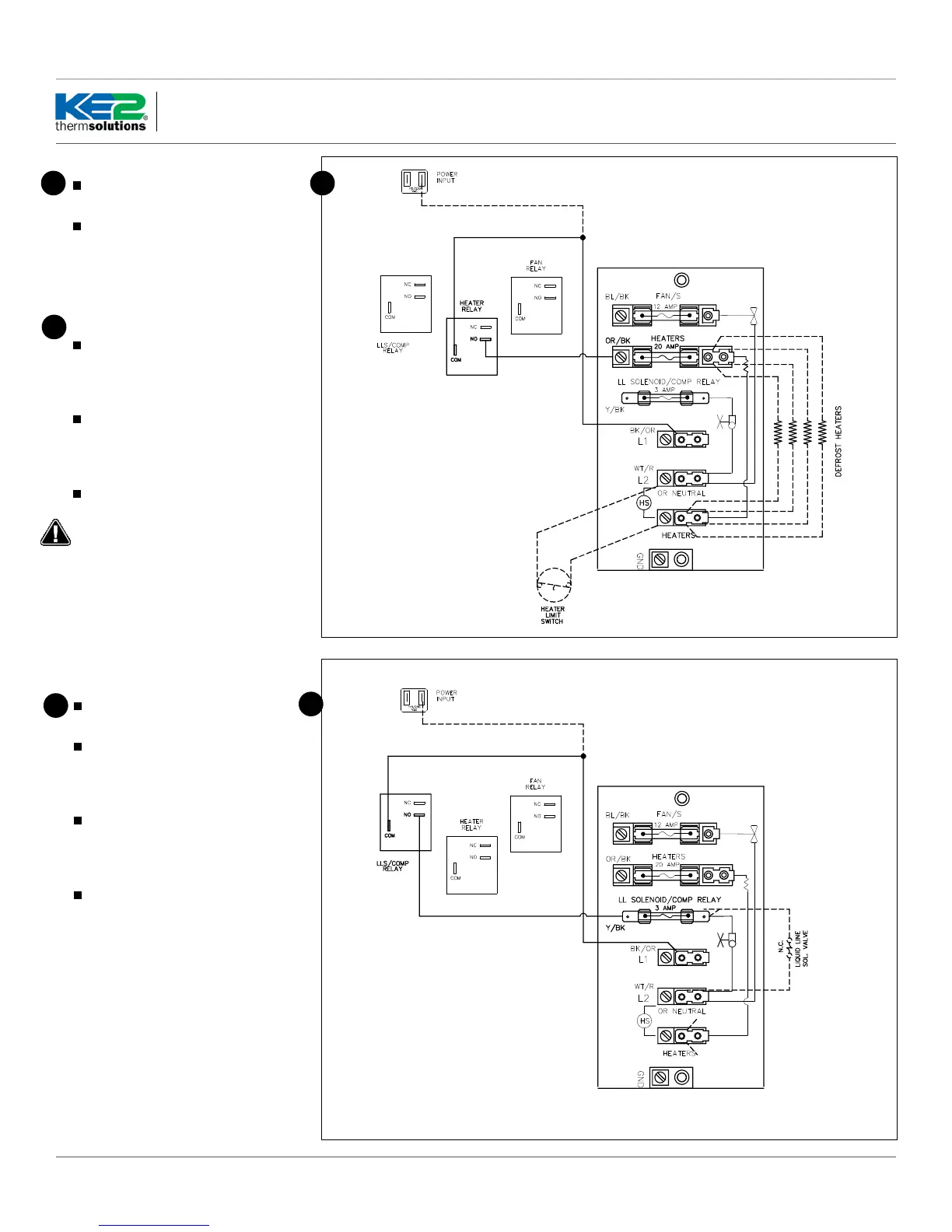

Evaporator wiring – Heater
Strip the ends of the wires being
used for heater control.
The heater wires can be attached to
the terminal block using either screw
down terminals or spade connectors.
17
Remove defrost termination
(Klixon®) from circuitry
Attach the black wire with orange
stripe to the L1/Line. This wire will
be connected to COM of defrost relay
on the controller.
Attach the orange wire with the
black stripe to the NO terminal on
the Defrost Relay to one of each of
the defrost leads.
Connect L2/Neutral to the remain-
ing defrost leads.
The defrost safety should not be re-
moved from the circuit. Its purpose
is to prevent the heaters from over
heating and causing damage.
18
Evaporator wiring – Liquid Line
Solenoid /Compressor
Strip the ends selected to control
the liquid line solenoid.
Attach the black wire with the yel-
low stripe to the L1. This wire will
be connected to the COM of the L.L.
Solenoid/Compressor.
Attach the yellow wire with black
stripe connects to the NO terminal
on the L.L. Solenoid/Compressor re-
lay to a solenoid lead
Connect L2/Neutral to the remain-
ing L.L. Solenoid/Compressor lead.
19
