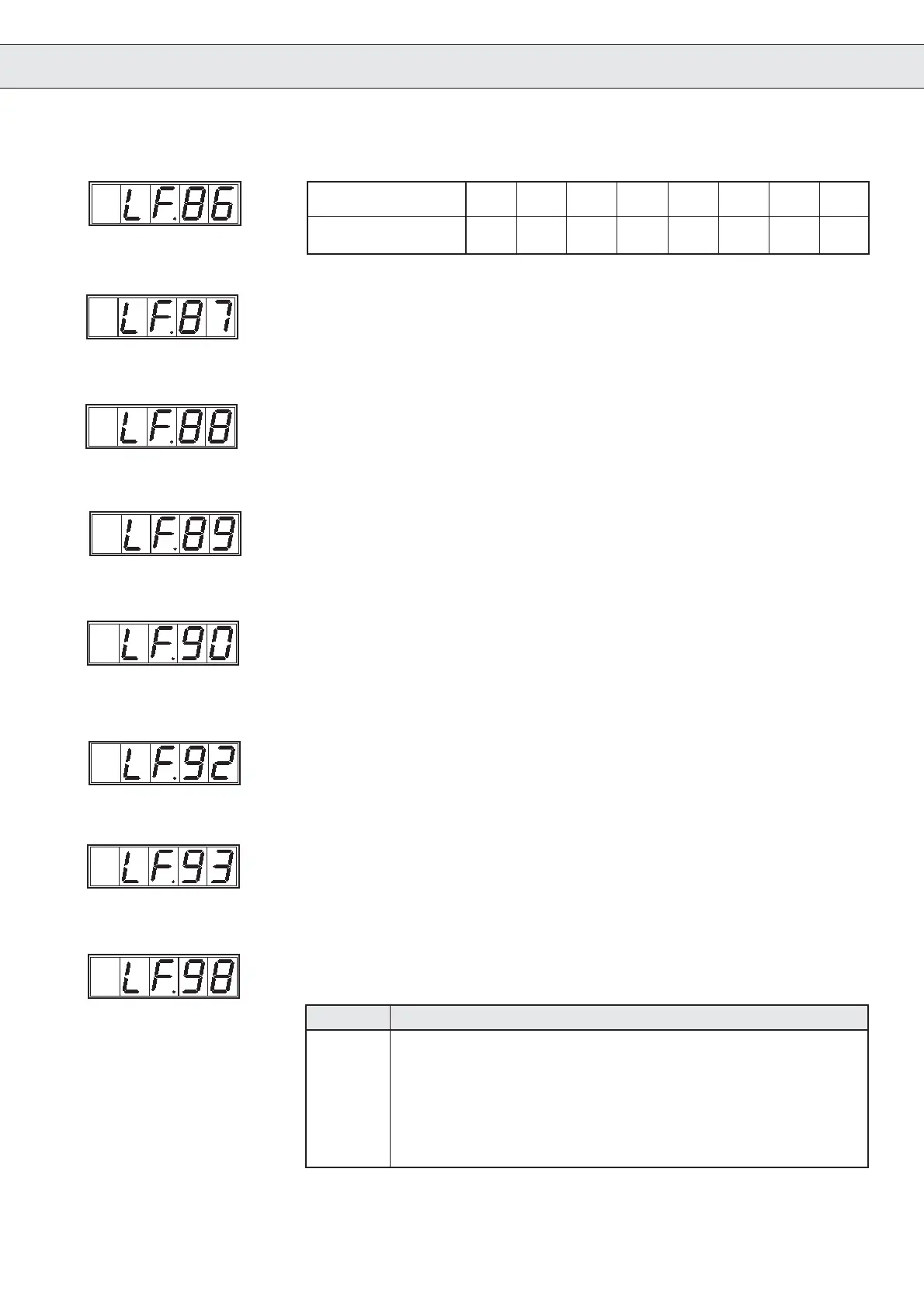

Operating Parameter
Display Value: 0 1 2 3 4 5 6 7
Speed: V=0 V
B
V
E
V
N
V
I
V
1
V
2
V=0
Actual Set Value
Actual Inverter Utilization
Display of the actual inverter utilization in %.
Actual Set Speed
The value shows the actual set speed in rpm, calculated from the
system data.
Total Path
Display of the total path in cm, from releasing to applying the brake.
Display Significance
StOP no setpoint selection
S.Co setpoint selection without contactor control
S.IO setpoint selection without control release
S.nC no current flows on the output side, check the wiring
between motor and inverter
run starting procedure is completed
Error Status in Starting
Procedure
Actual Speed
The value shows the real speed in rpm, only with connected
encoder.
Actual Car Speed
Display of the current speed in m/s; only with connected encoder.
Crawl Distance
Display of the positioning distance in cm, after a completed ride.
The parameter shows the fault indications that occur during the starting
process and continuous operation.
See parameter LF.99 for more information about other fault indications.
