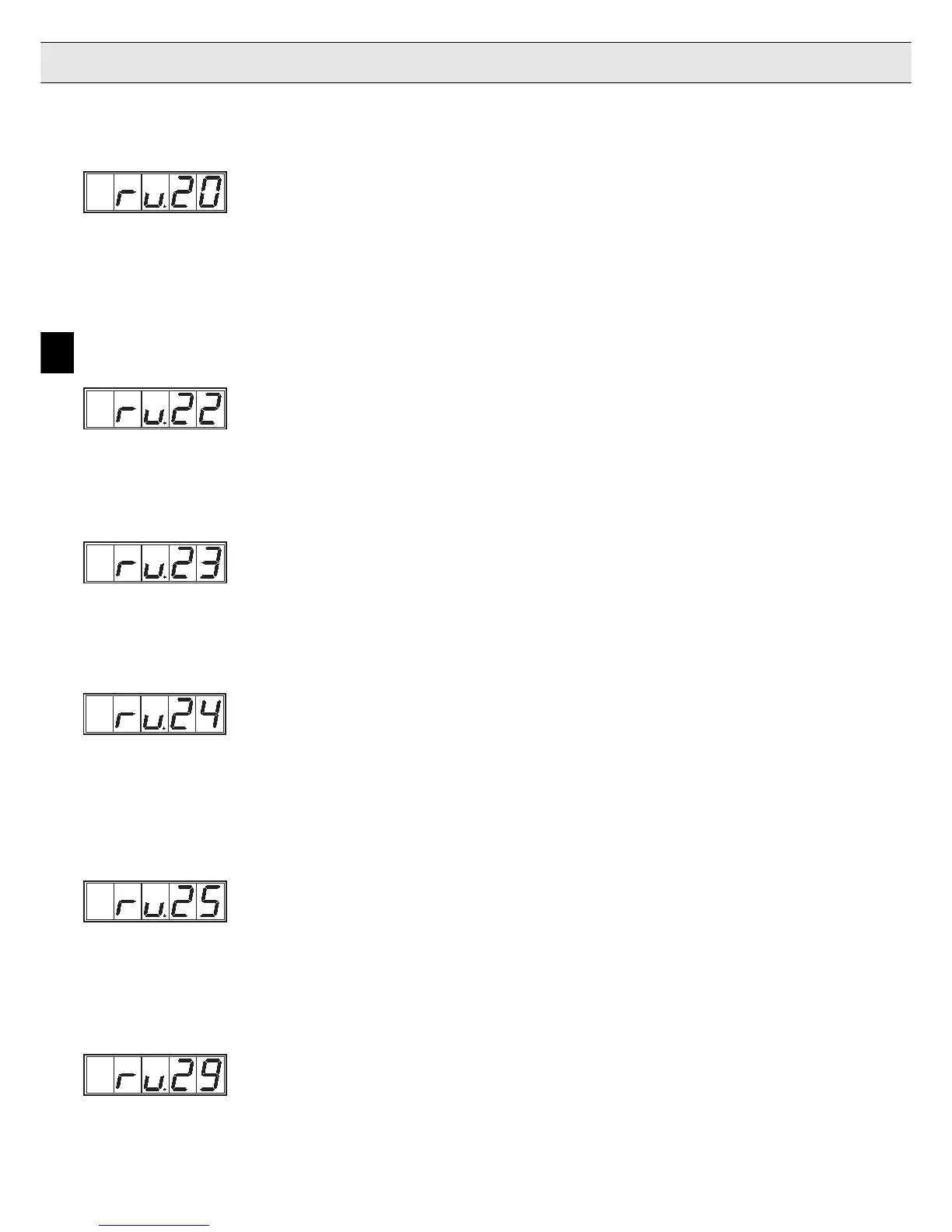

8. Parameter Description
Heat Sink Temperature
Displays the current heat sink temperature in Celsius (°C).
REF 1 Display
Display of the applied analog voltage in % (10 V = 100%) at REF 1
(setpoint input).
OL Counter Display
Display of the applied anaolg voltage in % (10 V = 100%) at REF 2
(auxiliary input).
Evaluates the continuous load of the inverter, in order to prevent OL
from occuring (load reduction on time). The OL error is triggered,
when the OL counter reaches 100%. The counter is shown with a 1%
resolution.
Peak Apparent Current
Maximum motor current that occurs during operating time. Display in
[A]. The peak memory can be deleted by pressing the UP or DOWN
key. The memory is also deleted when the inverter is switched off.
REF 2 Display
Shows the set speed at the input of the ramp generator. If no function
with a higher priority is activated, then the inverter works at this
speed.
Resolution 0,5 rpm
Speed Reference Display
To Next Page
