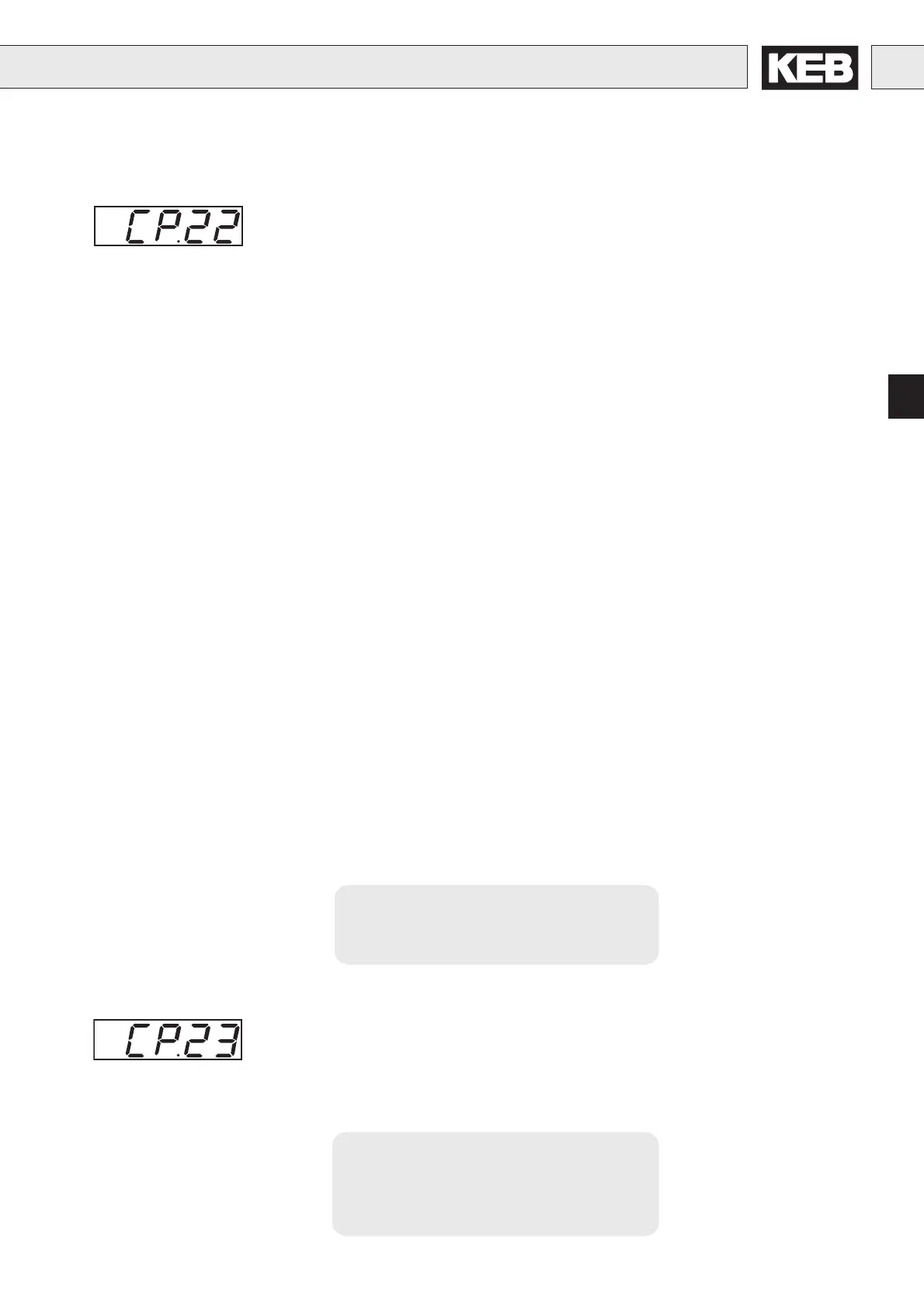

Relay output
Relay output (terminal X1.1...X1.3) is adjusted in the factory as a fault
relay. This parameter can adjust the function of the output onto any
function listed in the table below.
Value Function
0 No function
1 Generally on
2 Fault relay
3 Fault relay (not at under voltage error)
4 Overload alert signal (10s before switch off)
5 Overtemperature alert signal inverter
6 Overtemperature alert signal motor (10s before switch off)
7 Only for application-mode
8 Max. constant current (stall, CP.15) exceeded
9 Max. LA-/LD-Stop (CP.14) exceeded
10 DC-braking active
11 Only for application mode
12 Rate of utilization (CP.3) > 100%
13 Only for application mode
14 Actual value=set value (CP.2 = Fcon, rcon; not at noP, LS, error, SSF)
15 Accelerate (CP.2 = FAcc, rAcc, LAS)
16 Decelerate (CP.2 = FdEc, rdEc, LdS)
17 Right handed rotation (not at noP, LS error)
18 Left handed rotation (not at noP, LS error)
19 Real direction of rotation = set direction of rotation
20 Real value > frequency level CP.23 (only version S)
21 Set value > freqeuncy level CP.23 (only version S)
22 Only for application-mode
23 Operating signal (after initialization as long as no error is active)
24 Run signal
25...xx Only for application-mode
Factory setting: 2
Note: Enter-Parameter
Customer adjustment: _______
This parameter determines the switching point for the relay output
- X1.21...X1.23 (only version C)
- X1.1...X1.3 (only version S at CP.22 = "20” or “21”).
After the switching of the relay, the frequency can move within a 0.5 Hz
window, without the relay dropping off.
Adjustment range: 0.0...409.58 Hz
Resolution: 0.0125 Hz
Factory setting: 4 Hz
Customer adjustment: _______
