Keeler vantage+ Service Manual

Vantage + Service Manual
2415 -P- 7011
Page 7
Issue A 07/07/2008
5. The Viewing Assy (27) and Illumination Assy (28) are joined by the Centre
Spindle (24) and must be removed together.
6. Remove 2 off M2 x 8 Csk PT Screws (13) from the Viewing Assy (27).
7. Remove 4 off M2 x 8 Csk PT Screws (13) from the Illumination Assy (13)
8. Carefully lift the 2 assemblies together from the Rear Cover Moulding (17)
9. The 2 assemblies can now be separated.
Further disassembly of either the Illumination Assy or the Viewing Assy is not
advised as special tools and jigs are required to reassemble and align.

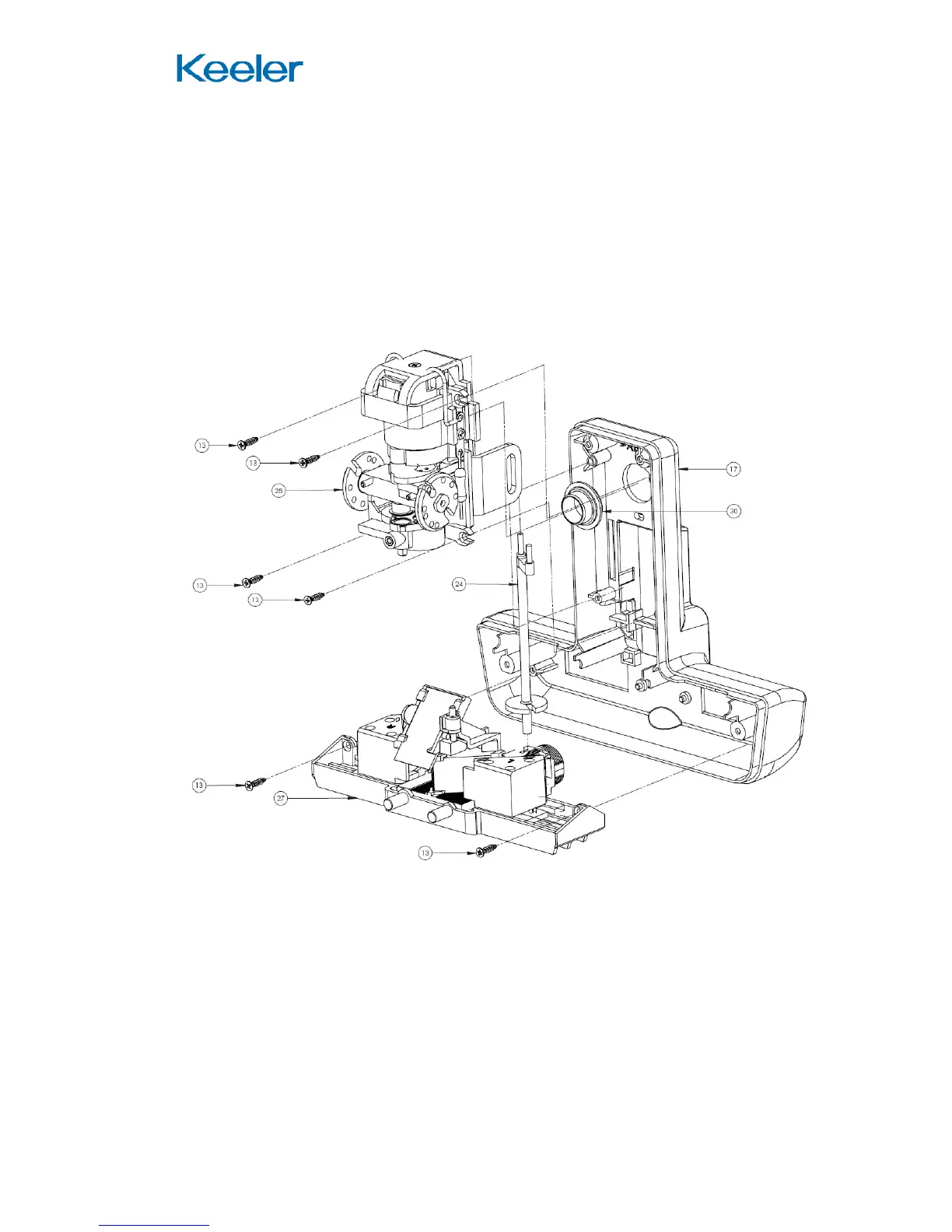

Figure 4

Keeler vantage+ Specifications

General

Illumination	LED
Power Source	Rechargeable Battery
Interpupillary Distance	Adjustable
Field of View	Wide
Weight	520g
Filters	Cobalt blue, red-free
Aperture Selection	Small, Medium, Large
Illumination Control	Variable intensity
