Reassembly
Refit Illumination Assy and Viewing Assy
Great ca re must be taken to avoid any strain on the Eyepiece Mirror Mounts
as these have been carefully aligned on the laser jig during manufacture.
Avoid holding the Viewing Assy by the Mirror Mounts.

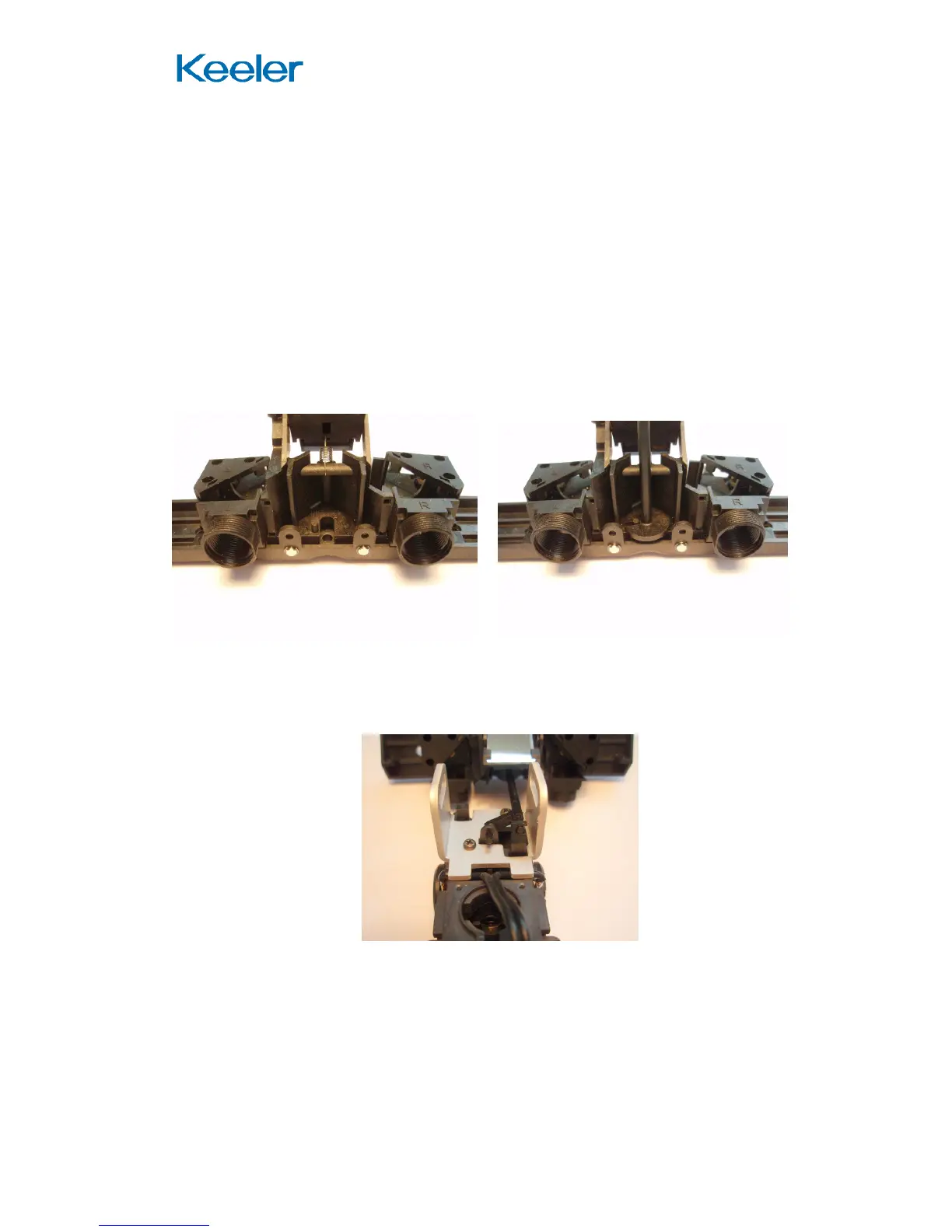

Refer to Figure 4
1. Stand the Viewing Assy on its base.
2. Locat e the Centre Spindle (24) in the base of the Viewing Assy so that the
peg on the moving Centre Mirror Assy engages with the slot on the Centre
Spindle
3. Locate the Illumination Assy onto the top end of the Centre Spindle so that
it engages with the Gratic ule Carrier. It will be necessary to rotate the
Graticule Wheel to the smallest aperture so that the link is sticking out.

Keeler vantage+ Specifications

General

Illumination	LED
Power Source	Rechargeable Battery
Interpupillary Distance	Adjustable
Field of View	Wide
Weight	520g
Filters	Cobalt blue, red-free
Aperture Selection	Small, Medium, Large
Illumination Control	Variable intensity
