Vantage + Service Manual
2415
-P-
7011
Page
6
Issue
A 07/07/2008

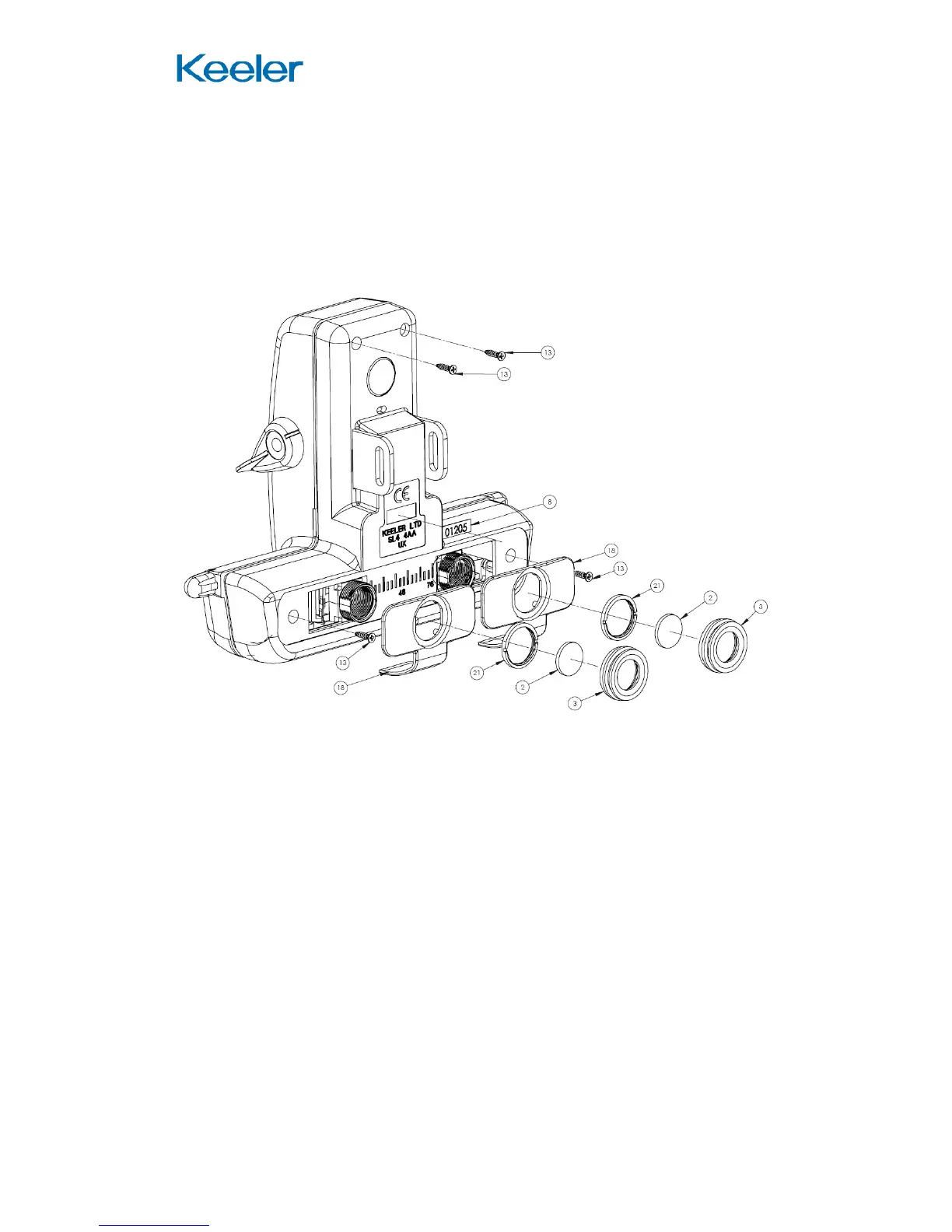

Remove the Optics Head and Illumination Assy.
1.
Unscre
w 2 off Eye Cap (3) being careful not to lose the +2D Eye Lenses
(2).
2.
Unscrew 2 off Eyepiece Lock Ring using TD351 Lock Ring Key.
3.
Remove 2 off P D Slider (18)
4.
Turn the unit over
Figure 3
