4.4 Operation 4.4

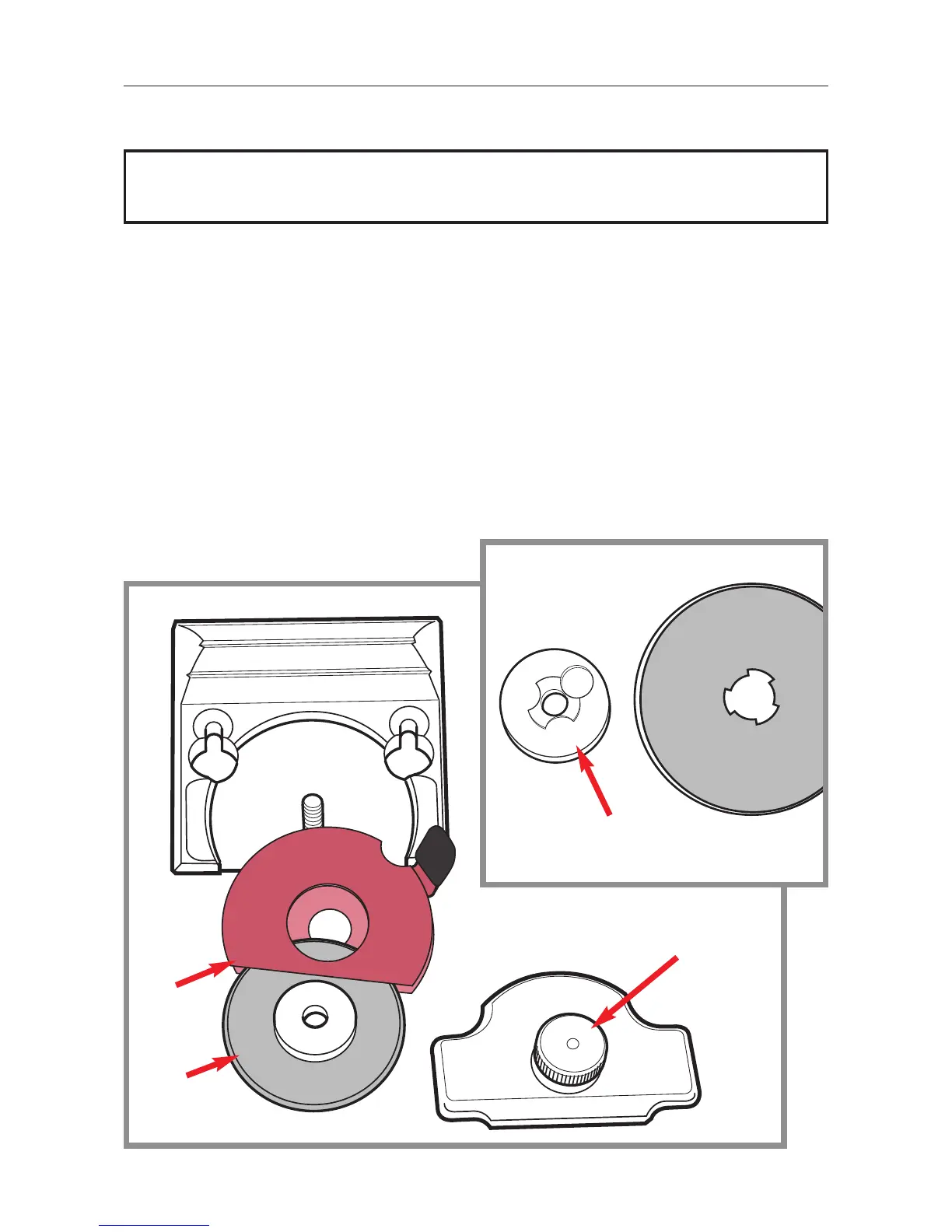

CHANGING THE ROTARY BLADE
Unscrew the clamping knob
I
to release the clamp plate then carefully remove the
blade with the red guard and the blade centre boss.
Separate the blade
F
from the red guard
G
and push out the magnetic centre boss
H
,
be extremely careful, the point of a pencil can be used to help push the boss free of the
blade. Ensure there is no debris attached to the magnetic boss or any of the other
components, reverse the procedure to install the new blade.
Using gloves check that the blade revolves freely, if not it is an indication that the
clamping knob
I
is too tight or there is debris inside.
■ The circular blades are extremely sharp - wear protective gloves
and handle with care.
G
F
H
I
