3.12 Set-up 3.12

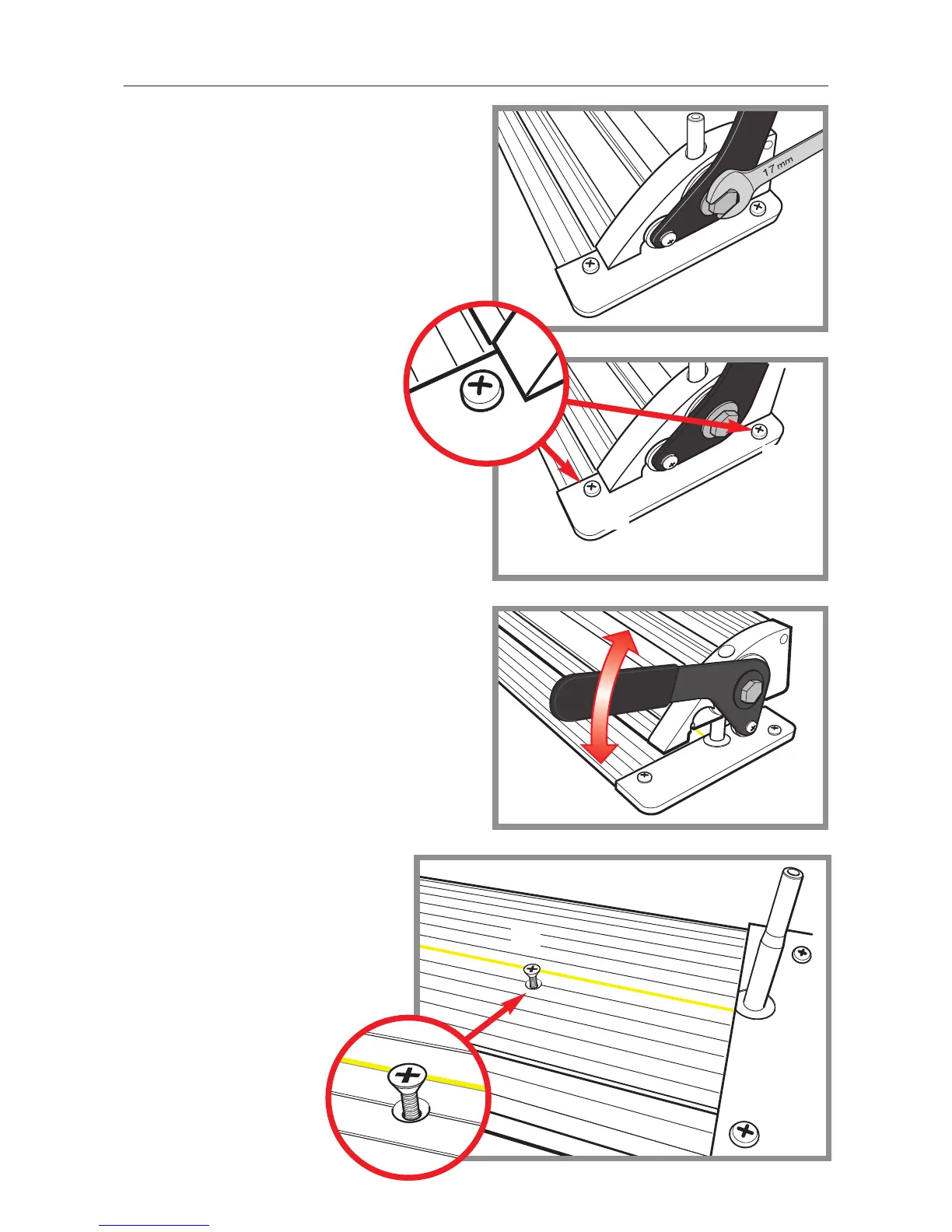

FIT THE LIFTING HANDLES
Using a 17mm spanner fit a lifting
handle to each end. Once tightened
they should move freely without
sideways movements.
Check the cutter is in the correct
position on the table and that the
Base Plate and End Plates are
in line.
Attach the two End Plates using
the four pan head screws
1
.
Check that each lifting handle
operates correctly.
Lifting vertically remove the cutter
from both guide rods at the same
time. Check that the Base Plate is
laying flat on the table surface along
its length. If necessary use paper or
card under the full width of the
Integra base to make it level on a
bench top that is not flat.
Use the countersink
head screws
2
to fix
the Base Plate to the
table.
2
1
1
