WIRING DIAGRAM − OUTDOOR UNIT − DLCCAR / DLCCHR

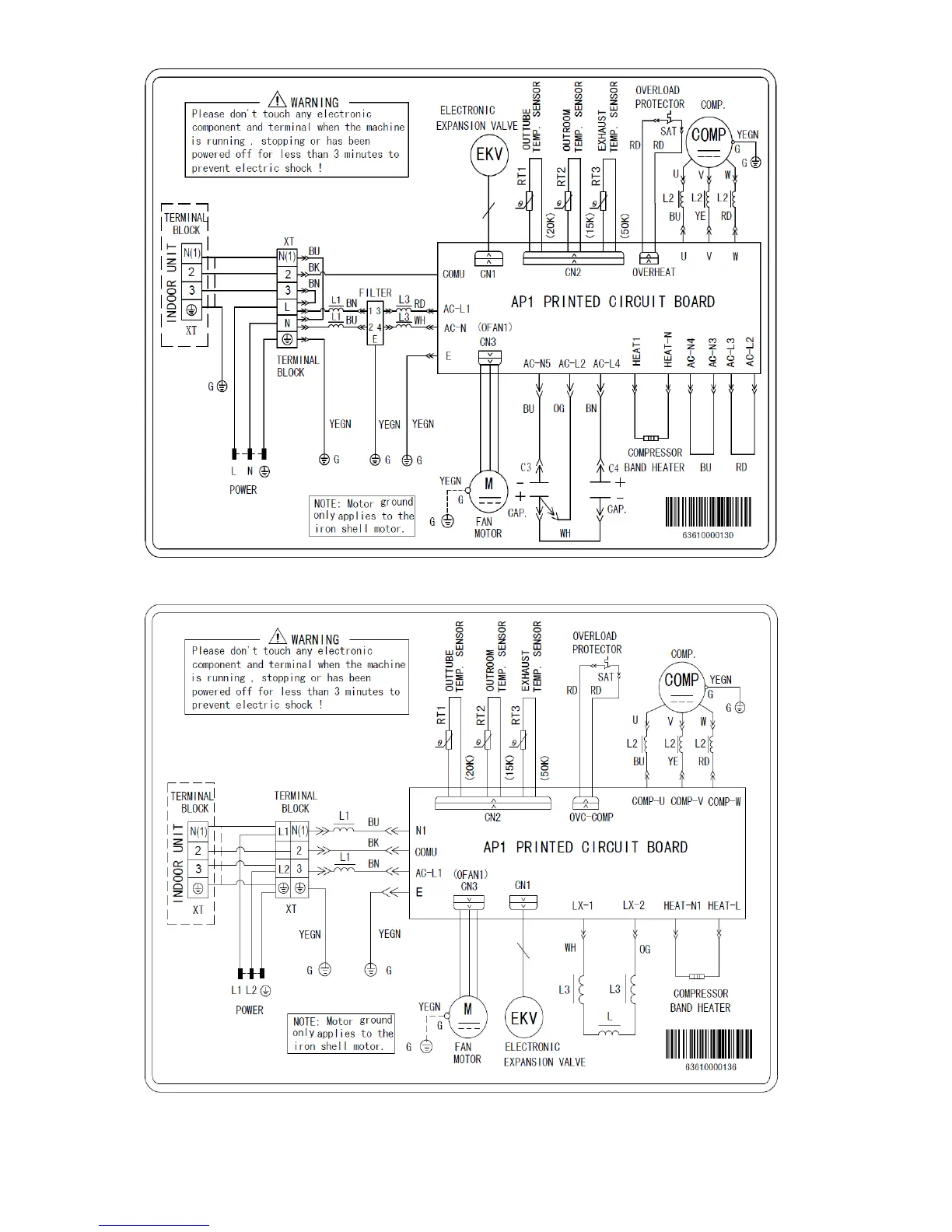

Fig. 12 - Outdoor Unit Sizes 09 − 12 (115V)
Fig. 13 - Outdoor Unit Sizes 09 − 12 (208/230V)
