DISASSEMBLY INSTRUCTIONS OUTDOOR UNIT SIZES 18−24 (CONT)

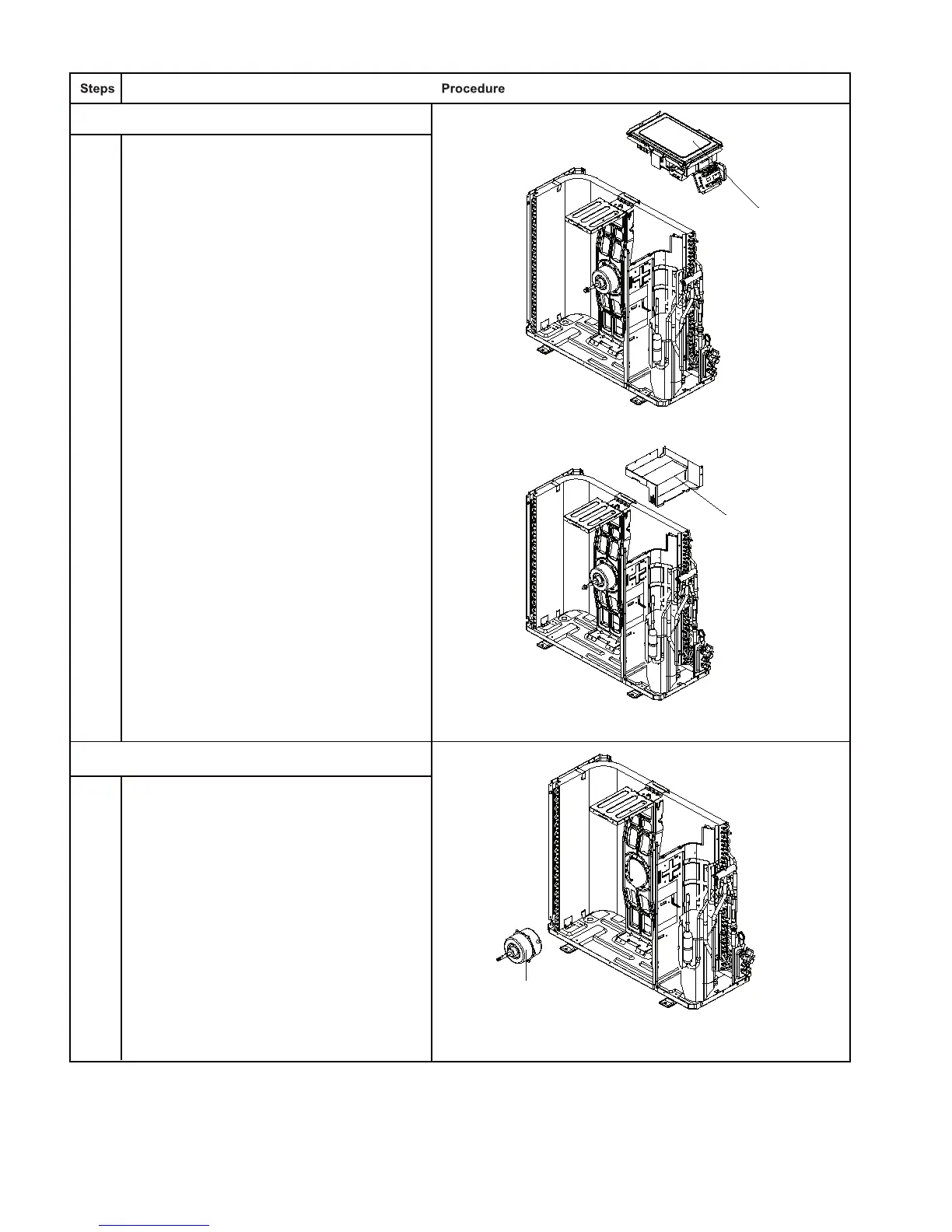

7.Remove electric box
electric box
Twist off the screws on electric box, cut off the
tieline with scissors or pliers, pull out the wiring
terminal, pull it upwards to remove the electric
box.
electric box
(fireproofing)
Twist off the screws on electric box (fireproofing)
with screwdriver, and then remove the electric
box (fireproofing).
8.Remove motor
motor
Twist off the tapping screws fixing the motor, pull
out the pin of leading wire for motor and then
remove the motor.
