30 328 080000 01
Specifications subject to change without notice.
PCB PRINTED DIAGRAMS (CONT)

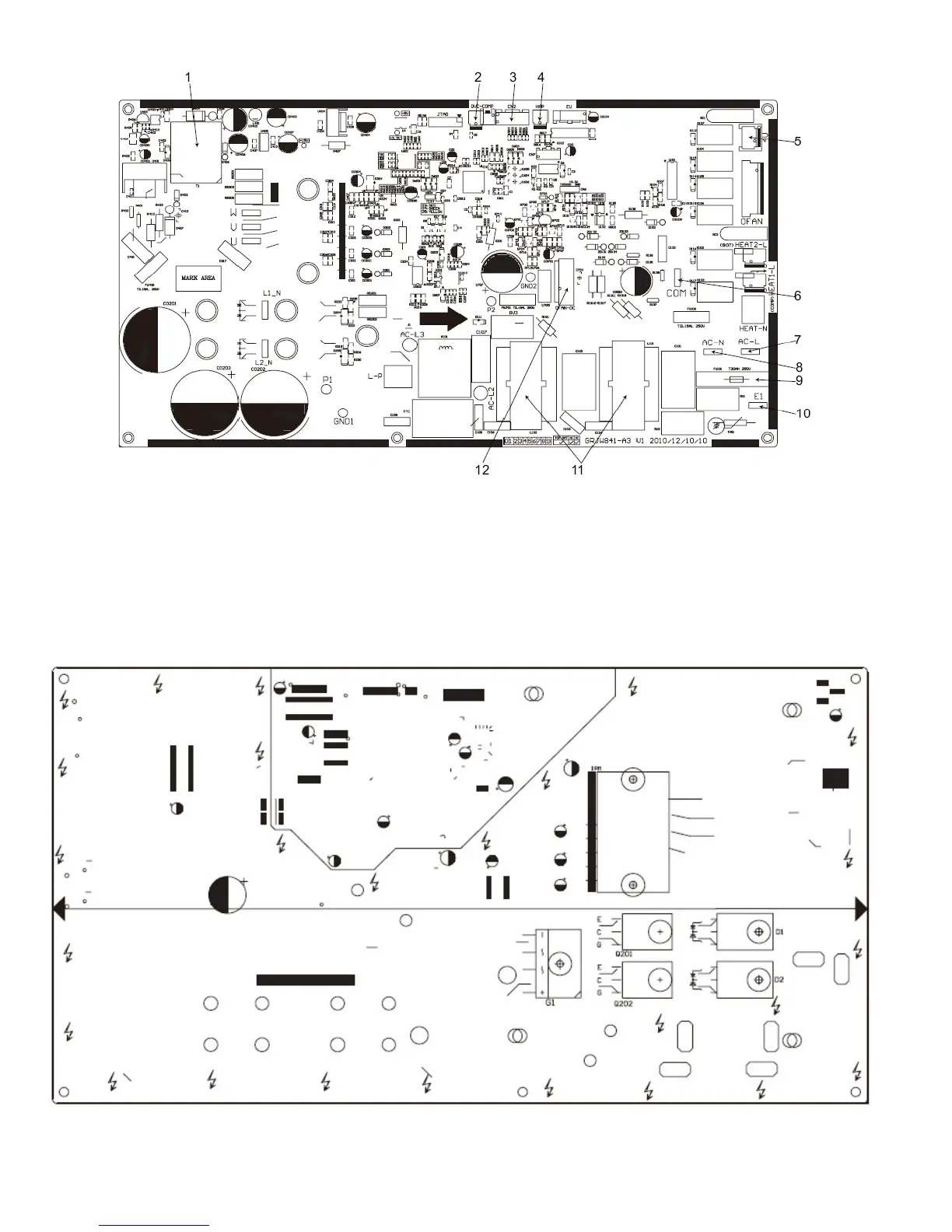

Fig. 50 - Outdoor Units DLCDHR Sizes 30 and 36 Top View
Table 20—Outdoor Units DLCDHR Sizes 30 and 36
No. Name No. Name No. Name
1 High−frequency transformer T1 5 Terminal of 4−way valve 9 Protective tube FU101
2 Terminal of overload protection 6 Communication terminal 10 Terminal of ground wire
3 Terminal of temperature sensor 7 Terminal of live wire 11 Choke L 101 and L 102
4 Terminal of high pressure protection 8 Terminal of neutral wire 12 Terminal of outdoor fan OFAN−DC
Fig. 51 - Outdoor Units DLCDHR Sizes 30 and 36 Bottom View
