KEEWAY HURRICANE Maintenance Manual

55

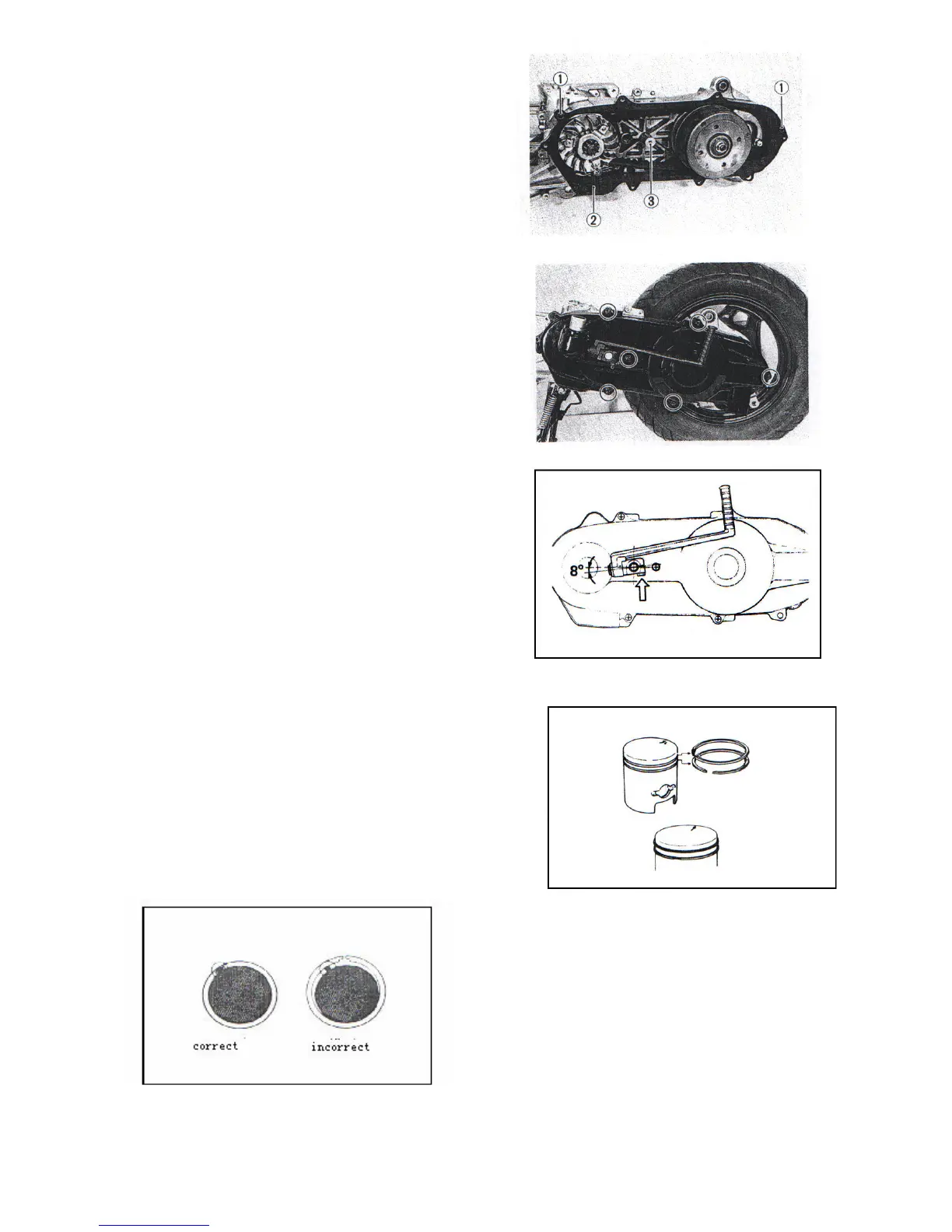

 Install the dowel pins①
 install the new gaskets(② and ③)
 apply QIANJIANG bond no. 1215 to the
clutch cover as shown in the illustration.
QIANJIANG bond no. 1215
NOTE: INSTALL the kick starter lever as shown in the
illustration.
Tightening toque：
：：
：8-12N.M
(0.8-1.2kg-m, 6.0-8.5Ib-ft)
PISTON
 install the piston rings on the piston.
The first and the second ring: keystone ring.
NOTE:
Position the ring so that the marking is on upside.
 it is extremely important that, when the piston is fed into the
cylinder, each ring in place should be so positioned as to hug
the locating pin as shown in illustration.

KEEWAY HURRICANE Specifications

General

Fuel System	Carburetor
Front Suspension	Telescopic fork
Front Brake	Disc
Rear Brake	Drum
Height	1120 mm
Engine Type	Single cylinder, 4-stroke
Max Torque	9.2 Nm @ 6500 rpm
Cooling System	Air cooled
Transmission	Automatic
Fuel Capacity	5.5 liters
