KEEWAY HURRICANE Maintenance Manual

56

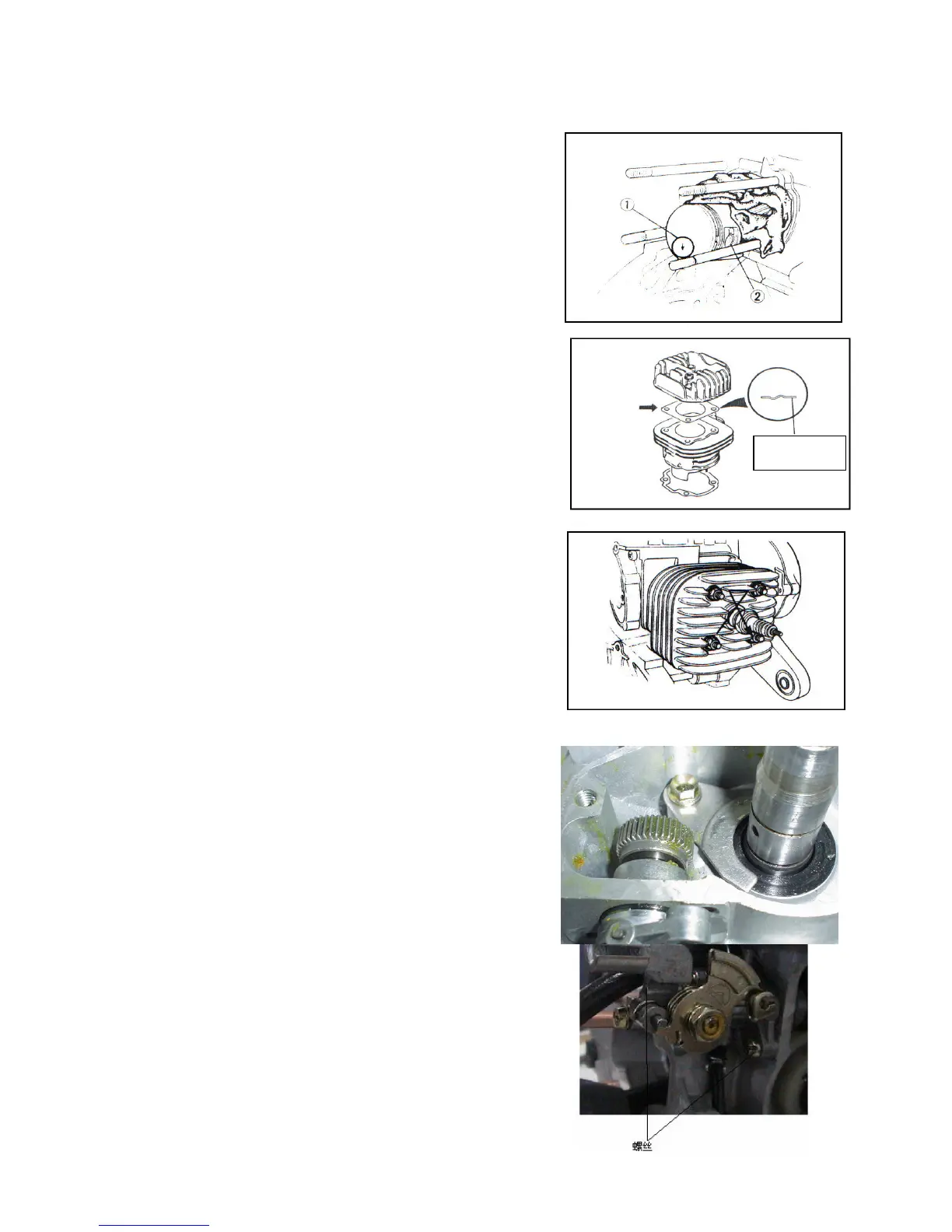

 apply oil for the piston and install the piston to
the connecting rod.
NOTE ：
：：
：
The arrow mark ① on the piston head should point
the exhaust side.
 The circlip should be mounted in such a
position that the mating ends of the circlip do
not coincide with the grovve portion of the
piston.
 apply oil on the position and cyoinder wall
surfaces and install the cylinder over the piston
carefully.
 tighten the cylinder head nut to the
specification.
tightening torque：
：：
：18-28N.m
 install right crankcase oil seal press board
 install worm, and lubricater it with QIANJIANG
special lubrication.
Oil pump
 install oil pump into crankcase
torque：
：：
：3-5N.m
(0.3-0.5kg-m, 2.3-3.7Ib-ft)
OUTSIDE

KEEWAY HURRICANE Specifications

General

Fuel System	Carburetor
Front Suspension	Telescopic fork
Front Brake	Disc
Rear Brake	Drum
Height	1120 mm
Engine Type	Single cylinder, 4-stroke
Max Torque	9.2 Nm @ 6500 rpm
Cooling System	Air cooled
Transmission	Automatic
Fuel Capacity	5.5 liters
