KEEWAY Rkv200g User Manual

54
Right Turn Lamp
Headlamp
Front position lamp
Left turn lamp
Horn
Diode
Clutch switch
Fuel sensor
Gear position Electric cable
Rectified voltage regulator Magneto
Spark plug Ignition loop
Igniter
Right turn lamp
Brake lamp
/Tail lamp
Left turn lamp
Fuel indicator
meter
Neutral position
indicator
Left turn
indicator lamp
Right turn
indicator lamp
Panel light
High beam
indicator
Brake switch
High beam & Low beam
switch
Steering Switch
Horn switch
Stop switch
Start switch
Brake switch
Lamp control switch
Storage battery
Accelerating relay
Flasher
Start Motor
Colour Code
Black
Blue
Light Blue
Brown
Red/White
Yellow/Red
Orange
Green/ White
Green/Black
B
BL
LBL
N
R/W
Y/R
O
G/W
G/B
Colour Code
White
Black/Red
White/Green
Blue/White
Purple
Black/White
Yellow
Red
Grey
W
B/R
W/G
BL/W
P
B/W
Y
R
Gr
Colour Code
Green
Orange/Blue
Brown/Yellow
Black/Green
Green/Blue
Yellow/Blue
Brown/Red
Orange/Red
Dark Green
G
O/BL
N/Y
B/G
G/BL
Y/BL
N/R
O/R
Dg

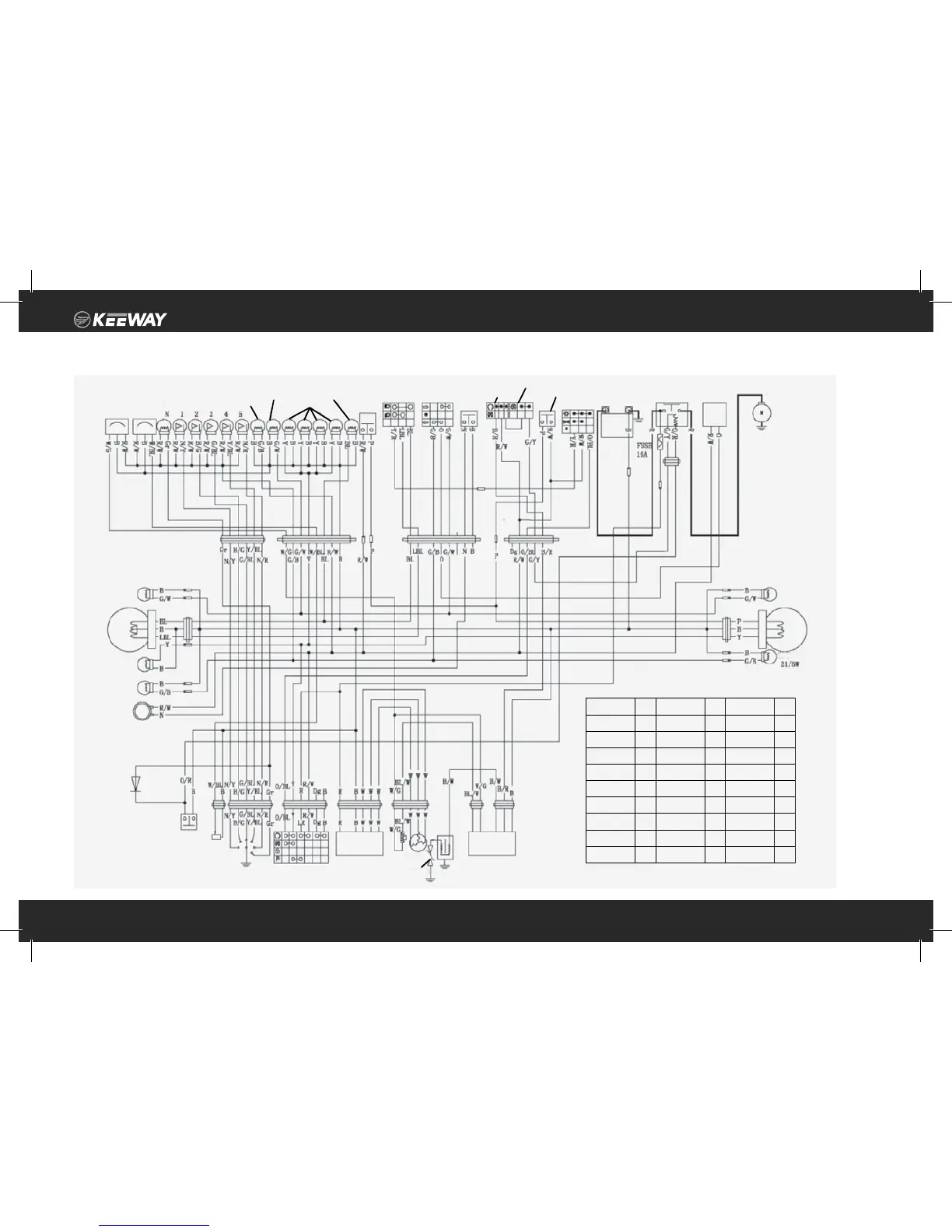

RKV 200G ELECTRIC PRINCIPLE DIAGRAM
