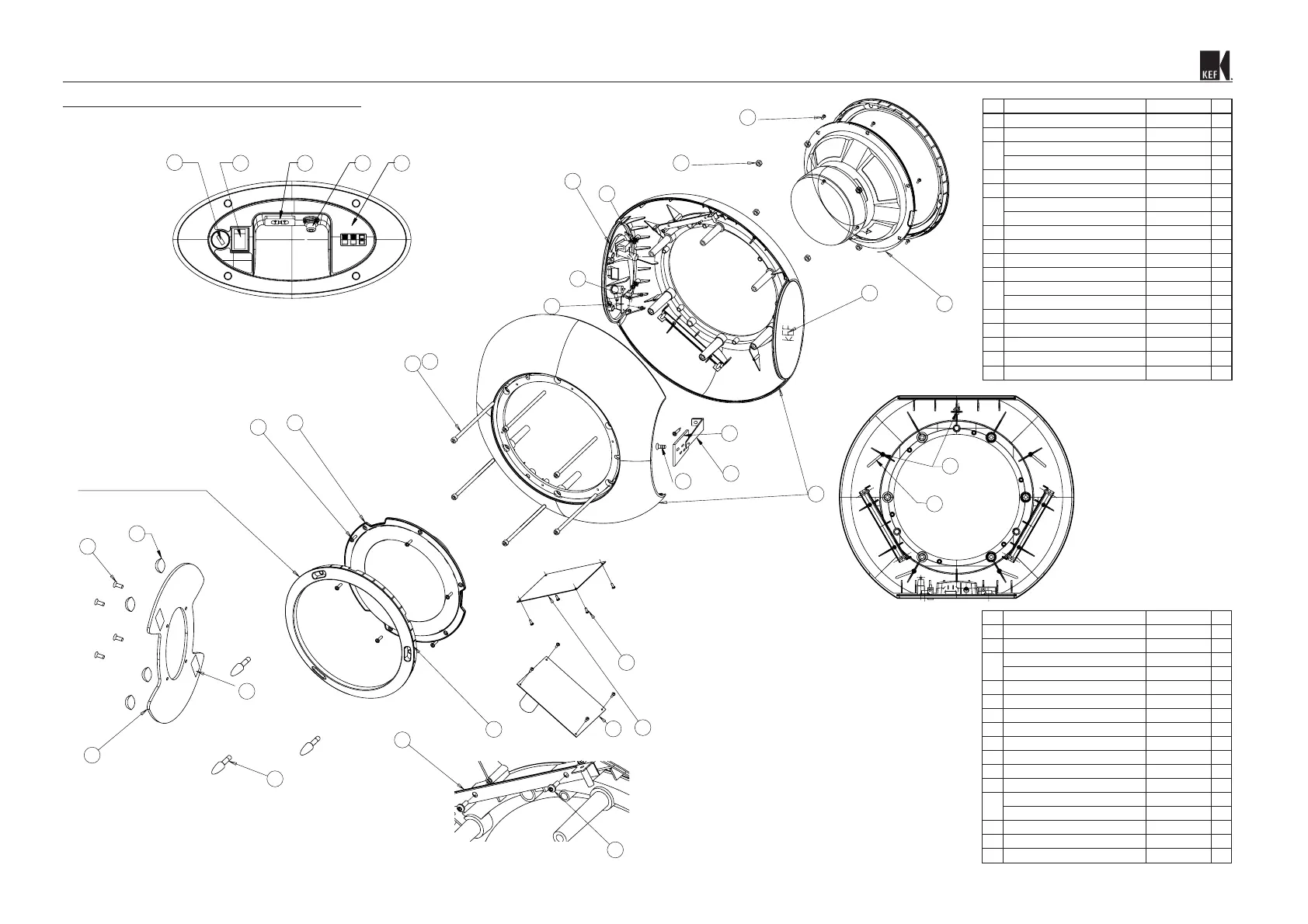

KEF HTB2SE - Exploded View of Electronic Parts

9
HTB2SE
4
18
4
11
5
2
19
8
16
ATTACH PCB AND ICE MODULE
TO BRACKETS AFTER SEALING CASE TOGETHER.
ACCESS VIA HOLE FOR DRIVE UNIT.
SCREW PCB BRACKETS AND LED BRACKET
IN PLACE BEFOR SEALING CASE.
3
12
8
15
6
2
2
9
17
13
8
7
NON ASSEMBLED ITEM
INCLUDE IN PACK
REMOVE HOLE BLANKS
FOR DOWNWARD FEET
DRIVE UNIT SIDE ONLY.
PUSH FIT TRIM RING
6
3
1
4
4
17
14
6
6
6
32
4
2
20
31
24
25
26
27
28
23
10
15
29
21
16
22
4
1 ABR ASSEMBLY 8900-6780-0 1
2 10” DRIVE UNIT ASSEMBLY 8900-6760-0 1
3 CABINET (BLK) 4158-0110+1 2
CABINET (SLV) 4158-0111+1 2
4 PCB BRACKET 4135-6071+0 4
5 ACRYLIC TOP PLATE 1467-5401+1 1
6 BOTTOM COVER (BLK) 1467-5502+1 1
BOTTOM COVER (SLV) 1467-5501+1 1
7 ICE MODULE 8902-0001-0 1
8 PCB-KH5334-PRE 1725-824A+0001 1
9 RUBBER TRIM RING 4149-9901-0 2
10 LED BRACKET 4135-6151+1 1
11 BASE PLATE (BLK) 1422-5252+1 1
BASE PLATE (SLV) 1422-5253+1 1
12 FEET FOR DOWNWARD FIRE MODE 4160-0660+0 3
13
SCREW M6X140 CAP HD SOCK MACHINE 2A08-9000+K400 6
14 NUT M6 STANDARD 4159-0331-0 6
15 SCREW M3X12 W/WASHER BZ 2904-3012-3030 9
16 SCREW B-TITE PH M3X8 MM YZ C 2950-3012-U020 13
REF DESCRIPTION PART NO. QTY
17 SCREW M4X14 PAN HD POZI MACHINE 2900-4015-3000 12
18 SCREW M6X16 C’SK SOCK MACHINE 2901-6016-4400 4
19 SCREW B-TITE PH M4X14 MM 2910-4015-3000 4
20 CAUTION LABEL (BLK) 3001-1329+0 2
CAUTION LABEL (SLV) 3001-1330+0 2
21 CONTROL PCB ASSY 1725-824A+0001 1
22 ANTTENNA WASHER 4131-7701-0 4
23 LED PCB ASSY 1725-824A+0001 1
24 FUSE HOLDER 4153-1100-0 1
25 SWITCH ROCKER 2 PIT 5200-4875-0 1
26 INLET AC UL/CSA/VDA 2113-3139+0 1
27 JACK RCA 1P 2113-3129-0 1
28 RUBBER FOOT 4154-2612-0 4
29 LABEL-BOTTOM COVER (BLK) 3001-1016+3 1
LABEL-BOTTOM COVER (SLV) 3001-1017+3 1
30
31 M6X1.2X8 SPRING WASHER 2607-6612-1200 6
32 M4x15 BT BZ 2950-4015-3000 4
EXPLODED VIEW OF ELECTRONIC PARTS
