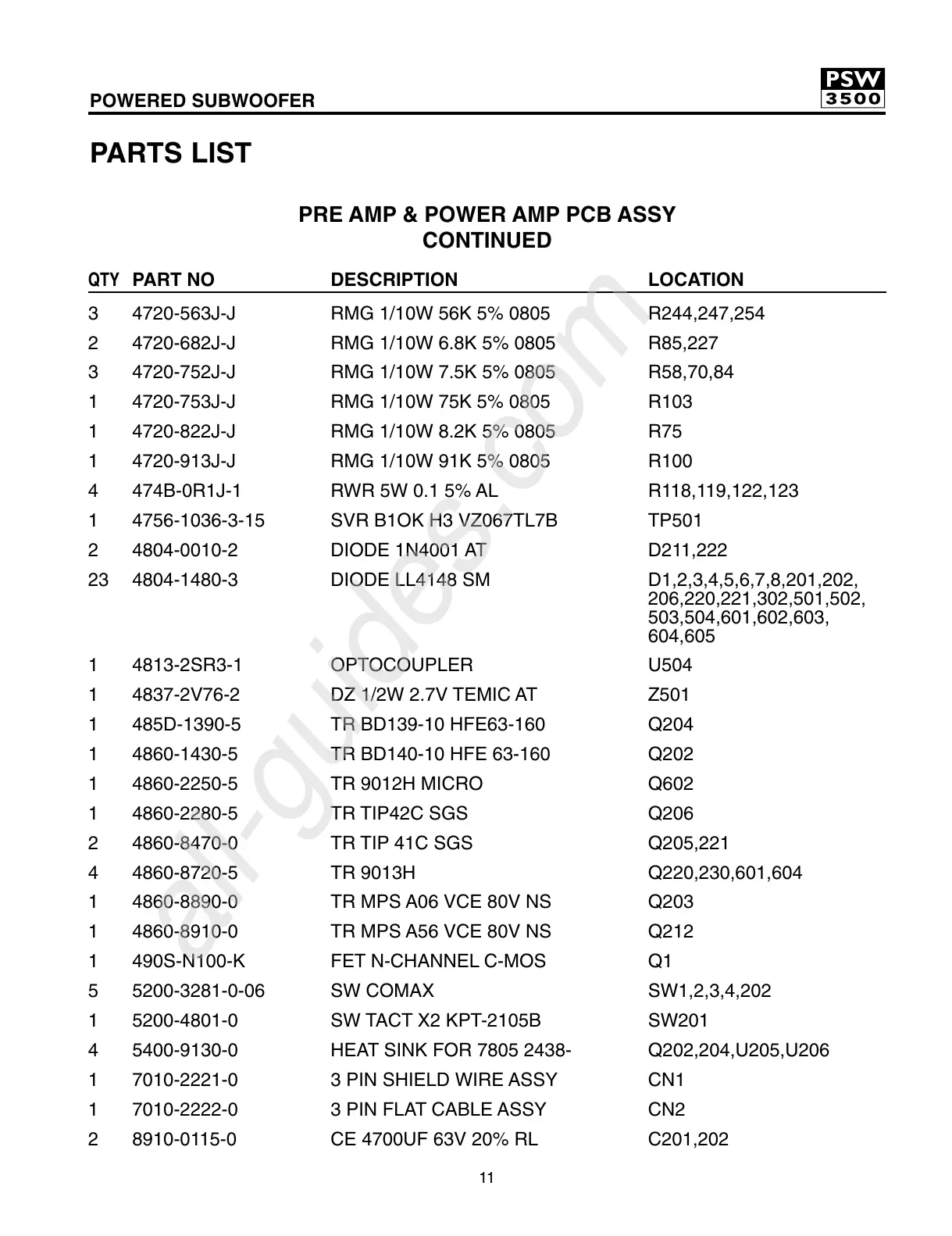

KEF PSW3500 - Page 11

11
POWERED SUBWOOFER
PARTS LIST
3 4720-563J-J RMG 1/10W 56K 5% 0805 R244,247,254
2 4720-682J-J RMG 1/10W 6.8K 5% 0805 R85,227
3 4720-752J-J RMG 1/10W 7.5K 5% 0805 R58,70,84
1 4720-753J-J RMG 1/10W 75K 5% 0805 R103
1 4720-822J-J RMG 1/10W 8.2K 5% 0805 R75
1 4720-913J-J RMG 1/10W 91K 5% 0805 R100
4 474B-0R1J-1 RWR 5W 0.1 5% AL R118,119,122,123
1 4756-1036-3-15 SVR B1OK H3 VZ067TL7B TP501
2 4804-0010-2 DIODE 1N4001 AT D211,222
23 4804-1480-3 DIODE LL4148 SM D1,2,3,4,5,6,7,8,201,202,
206,220,221,302,501,502,
503,504,601,602,603,
604,605
1 4813-2SR3-1 OPTOCOUPLER U504
1 4837-2V76-2 DZ 1/2W 2.7V TEMIC AT Z501
1 485D-1390-5 TR BD139-10 HFE63-160 Q204
1 4860-1430-5 TR BD140-10 HFE 63-160 Q202
1 4860-2250-5 TR 9012H MICRO Q602
1 4860-2280-5 TR TIP42C SGS Q206
2 4860-8470-0 TR TIP 41C SGS Q205,221
4 4860-8720-5 TR 9013H Q220,230,601,604
1 4860-8890-0 TR MPS A06 VCE 80V NS Q203
1 4860-8910-0 TR MPS A56 VCE 80V NS Q212
1 490S-N100-K FET N-CHANNEL C-MOS Q1
5 5200-3281-0-06 SW COMAX SW1,2,3,4,202
1 5200-4801-0 SW TACT X2 KPT-2105B SW201
4 5400-9130-0 HEAT SINK FOR 7805 2438- Q202,204,U205,U206
1 7010-2221-0 3 PIN SHIELD WIRE ASSY CN1
1 7010-2222-0 3 PIN FLAT CABLE ASSY CN2
2 8910-0115-0 CE 4700UF 63V 20% RL C201,202
PRE AMP & POWER AMP PCB ASSY
CONTINUED
QTY PART NO DESCRIPTION LOCATION
