KEF PSW3500 - Pre Amp & Power Amp PCB Assembly

7
POWERED SUBWOOFER

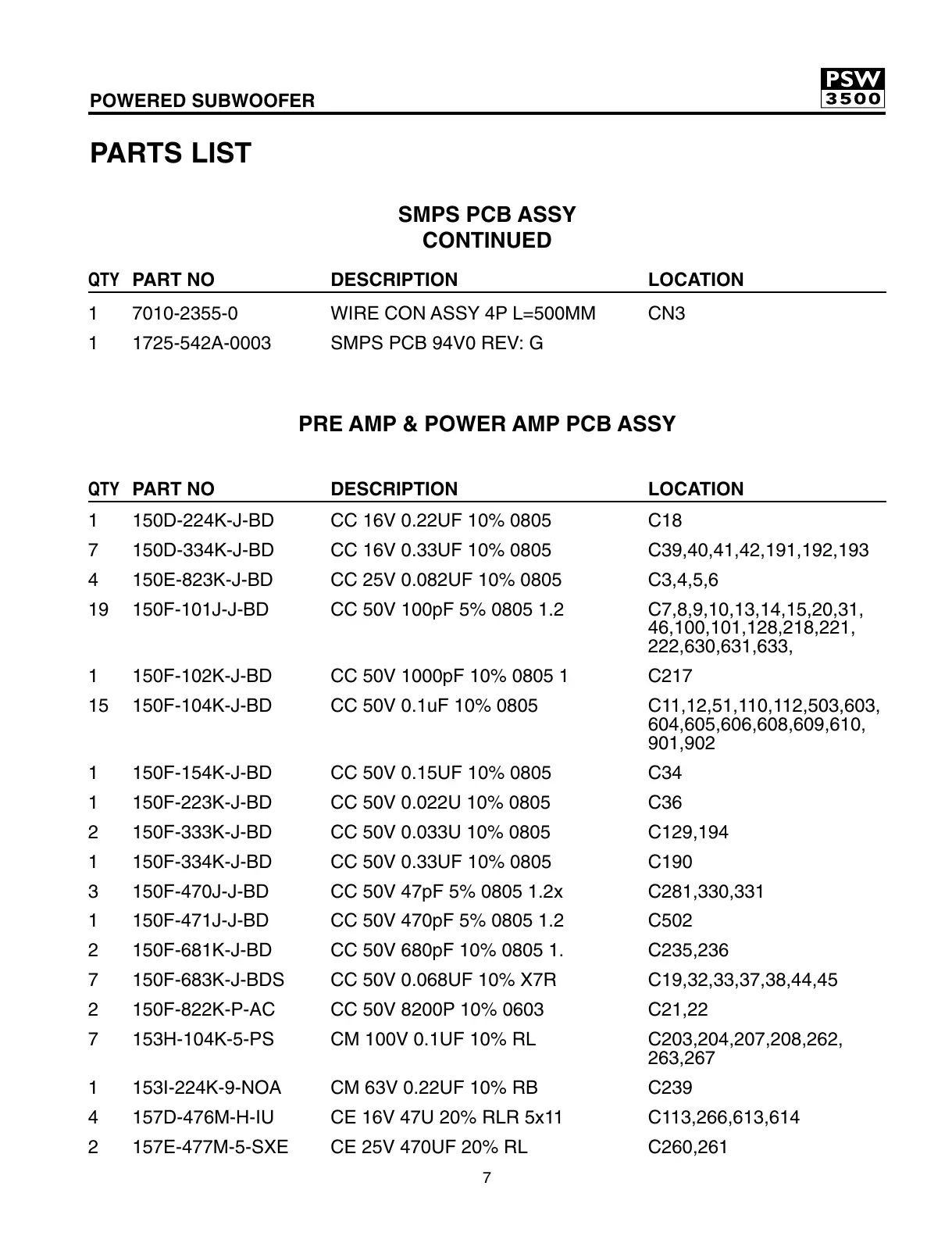

PARTS LIST
1 7010-2355-0 WIRE CON ASSY 4P L=500MM CN3
1 1725-542A-0003 SMPS PCB 94V0 REV: G
1 150D-224K-J-BD CC 16V 0.22UF 10% 0805 C18
7 150D-334K-J-BD CC 16V 0.33UF 10% 0805 C39,40,41,42,191,192,193
4 150E-823K-J-BD CC 25V 0.082UF 10% 0805 C3,4,5,6
19 150F-101J-J-BD CC 50V 100pF 5% 0805 1.2 C7,8,9,10,13,14,15,20,31,
46,100,101,128,218,221,
222,630,631,633,
1 150F-102K-J-BD CC 50V 1000pF 10% 0805 1 C217
15 150F-104K-J-BD CC 50V 0.1uF 10% 0805 C11,12,51,110,112,503,603,
604,605,606,608,609,610,
901,902
1 150F-154K-J-BD CC 50V 0.15UF 10% 0805 C34
1 150F-223K-J-BD CC 50V 0.022U 10% 0805 C36
2 150F-333K-J-BD CC 50V 0.033U 10% 0805 C129,194
1 150F-334K-J-BD CC 50V 0.33UF 10% 0805 C190
3 150F-470J-J-BD CC 50V 47pF 5% 0805 1.2x C281,330,331
1 150F-471J-J-BD CC 50V 470pF 5% 0805 1.2 C502
2 150F-681K-J-BD CC 50V 680pF 10% 0805 1. C235,236
7 150F-683K-J-BDS CC 50V 0.068UF 10% X7R C19,32,33,37,38,44,45
2 150F-822K-P-AC CC 50V 8200P 10% 0603 C21,22
7 153H-104K-5-PS CM 100V 0.1UF 10% RL C203,204,207,208,262,
263,267
1 153I-224K-9-NOA CM 63V 0.22UF 10% RB C239
4 157D-476M-H-IU CE 16V 47U 20% RLR 5x11 C113,266,613,614
2 157E-477M-5-SXE CE 25V 470UF 20% RL C260,261
SMPS PCB ASSY
CONTINUED
QTY PART NO DESCRIPTION LOCATION
PRE AMP & POWER AMP PCB ASSY
QTY PART NO DESCRIPTION LOCATION
