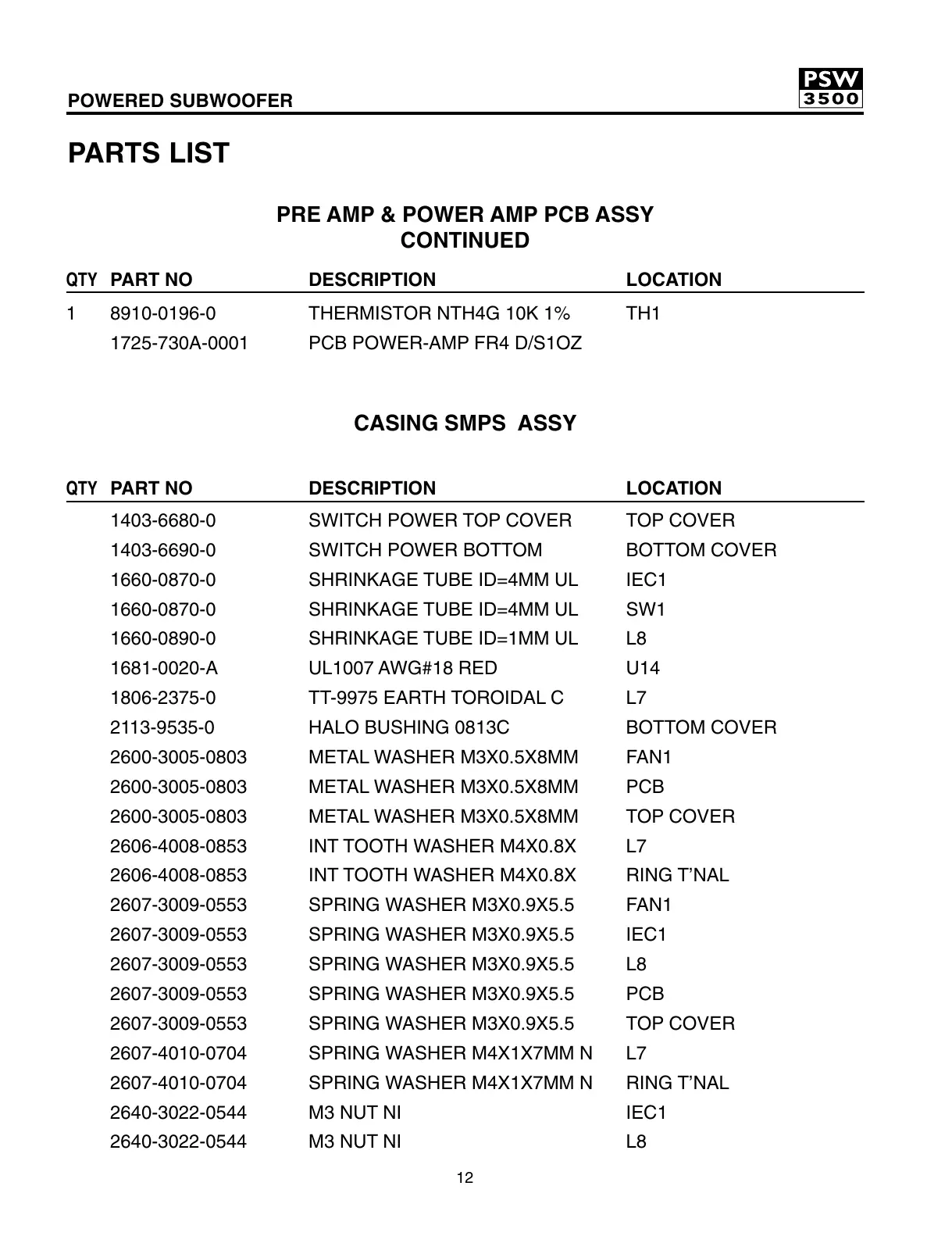

KEF PSW3500 - Casing Smps Assembly

POWERED SUBWOOFER
12
PARTS LIST
1 8910-0196-0 THERMISTOR NTH4G 10K 1% TH1
1725-730A-0001 PCB POWER-AMP FR4 D/S1OZ
1403-6680-0 SWITCH POWER TOP COVER TOP COVER
1403-6690-0 SWITCH POWER BOTTOM BOTTOM COVER
1660-0870-0 SHRINKAGE TUBE ID=4MM UL IEC1
1660-0870-0 SHRINKAGE TUBE ID=4MM UL SW1
1660-0890-0 SHRINKAGE TUBE ID=1MM UL L8
1681-0020-A UL1007 AWG#18 RED U14
1806-2375-0 TT-9975 EARTH TOROIDAL C L7
2113-9535-0 HALO BUSHING 0813C BOTTOM COVER
2600-3005-0803 METAL WASHER M3X0.5X8MM FAN1
2600-3005-0803 METAL WASHER M3X0.5X8MM PCB
2600-3005-0803 METAL WASHER M3X0.5X8MM TOP COVER
2606-4008-0853 INT TOOTH WASHER M4X0.8X L7
2606-4008-0853 INT TOOTH WASHER M4X0.8X RING T’NAL
2607-3009-0553 SPRING WASHER M3X0.9X5.5 FAN1
2607-3009-0553 SPRING WASHER M3X0.9X5.5 IEC1
2607-3009-0553 SPRING WASHER M3X0.9X5.5 L8
2607-3009-0553 SPRING WASHER M3X0.9X5.5 PCB
2607-3009-0553 SPRING WASHER M3X0.9X5.5 TOP COVER
2607-4010-0704 SPRING WASHER M4X1X7MM N L7
2607-4010-0704 SPRING WASHER M4X1X7MM N RING T’NAL
2640-3022-0544 M3 NUT NI IEC1
2640-3022-0544 M3 NUT NI L8
PRE AMP & POWER AMP PCB ASSY
CONTINUED
QTY PART NO DESCRIPTION LOCATION
CASING SMPS ASSY
QTY PART NO DESCRIPTION LOCATION
