KEF PSW3500 - Page 8

POWERED SUBWOOFER
8

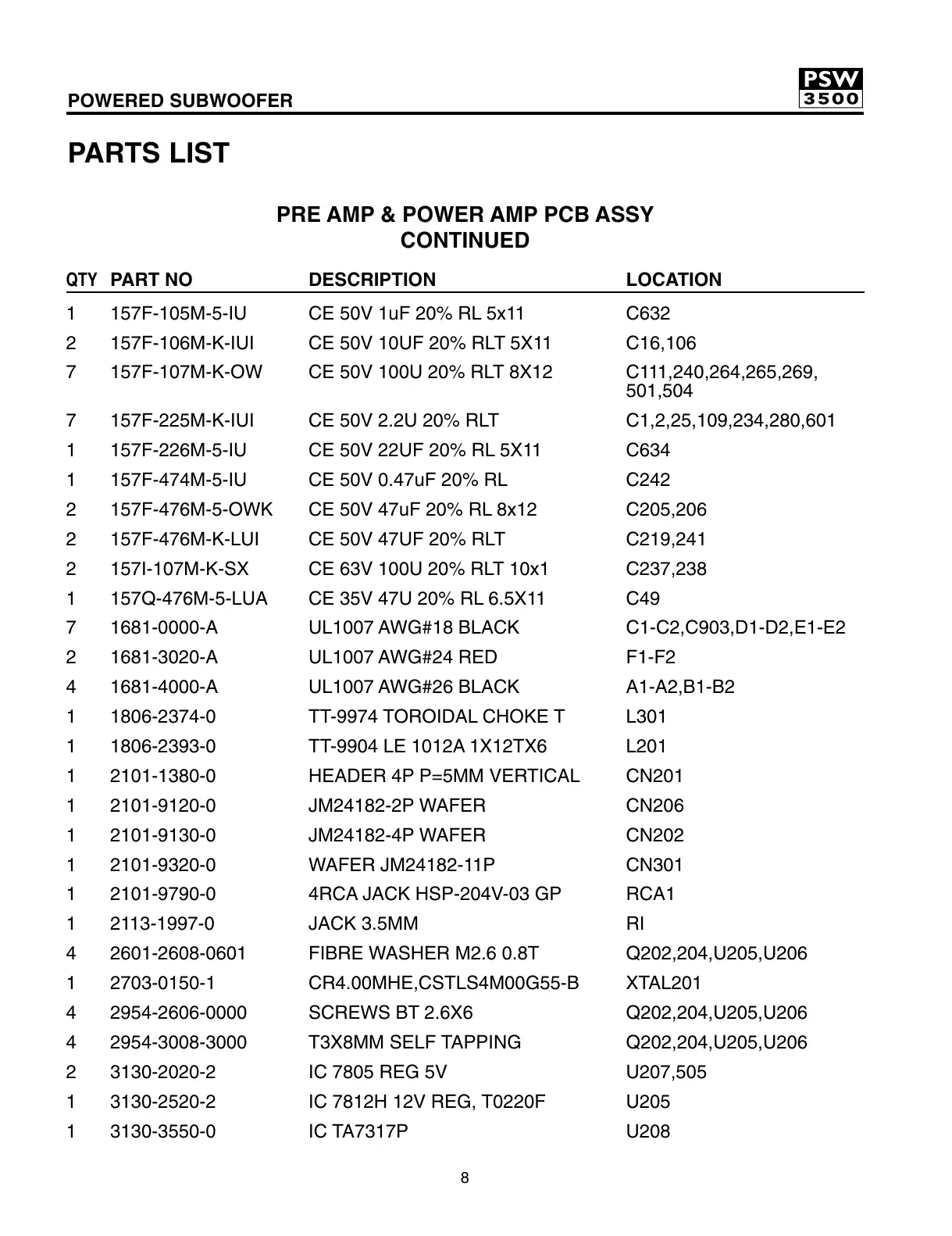

PARTS LIST
1 157F-105M-5-IU CE 50V 1uF 20% RL 5x11 C632
2 157F-106M-K-IUI CE 50V 10UF 20% RLT 5X11 C16,106
7 157F-107M-K-OW CE 50V 100U 20% RLT 8X12 C111,240,264,265,269,
501,504
7 157F-225M-K-IUI CE 50V 2.2U 20% RLT C1,2,25,109,234,280,601
1 157F-226M-5-IU CE 50V 22UF 20% RL 5X11 C634
1 157F-474M-5-IU CE 50V 0.47uF 20% RL C242
2 157F-476M-5-OWK CE 50V 47uF 20% RL 8x12 C205,206
2 157F-476M-K-LUI CE 50V 47UF 20% RLT C219,241
2 157I-107M-K-SX CE 63V 100U 20% RLT 10x1 C237,238
1 157Q-476M-5-LUA CE 35V 47U 20% RL 6.5X11 C49
7 1681-0000-A UL1007 AWG#18 BLACK C1-C2,C903,D1-D2,E1-E2
2 1681-3020-A UL1007 AWG#24 RED F1-F2
4 1681-4000-A UL1007 AWG#26 BLACK A1-A2,B1-B2
1 1806-2374-0 TT-9974 TOROIDAL CHOKE T L301
1 1806-2393-0 TT-9904 LE 1012A 1X12TX6 L201
1 2101-1380-0 HEADER 4P P=5MM VERTICAL CN201
1 2101-9120-0 JM24182-2P WAFER CN206
1 2101-9130-0 JM24182-4P WAFER CN202
1 2101-9320-0 WAFER JM24182-11P CN301
1 2101-9790-0 4RCA JACK HSP-204V-03 GP RCA1
12113-1997-0 JACK 3.5MM RI
4 2601-2608-0601 FIBRE WASHER M2.6 0.8T Q202,204,U205,U206
1 2703-0150-1 CR4.00MHE,CSTLS4M00G55-B XTAL201
4 2954-2606-0000 SCREWS BT 2.6X6 Q202,204,U205,U206
4 2954-3008-3000 T3X8MM SELF TAPPING Q202,204,U205,U206
2 3130-2020-2 IC 7805 REG 5V U207,505
1 3130-2520-2 IC 7812H 12V REG, T0220F U205
1 3130-3550-0 IC TA7317P U208
PRE AMP & POWER AMP PCB ASSY
CONTINUED
QTY PART NO DESCRIPTION LOCATION
