9
POWERED SUBWOOFER

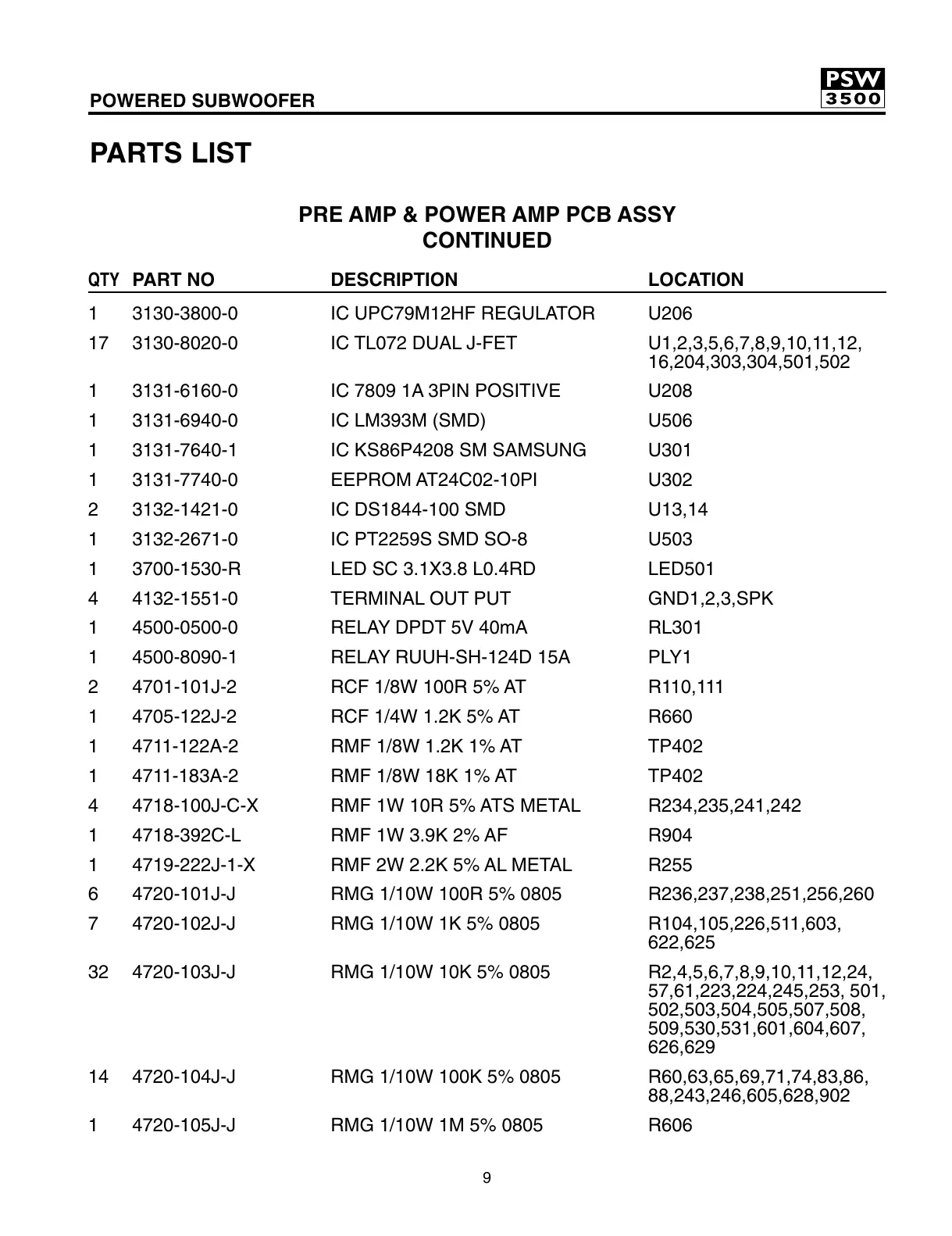

PARTS LIST
1 3130-3800-0 IC UPC79M12HF REGULATOR U206
17 3130-8020-0 IC TL072 DUAL J-FET U1,2,3,5,6,7,8,9,10,11,12,
16,204,303,304,501,502
1 3131-6160-0 IC 7809 1A 3PIN POSITIVE U208
1 3131-6940-0 IC LM393M (SMD) U506
1 3131-7640-1 IC KS86P4208 SM SAMSUNG U301
1 3131-7740-0 EEPROM AT24C02-10PI U302
2 3132-1421-0 IC DS1844-100 SMD U13,14
1 3132-2671-0 IC PT2259S SMD SO-8 U503
1 3700-1530-R LED SC 3.1X3.8 L0.4RD LED501
4 4132-1551-0 TERMINAL OUT PUT GND1,2,3,SPK
1 4500-0500-0 RELAY DPDT 5V 40mA RL301
1 4500-8090-1 RELAY RUUH-SH-124D 15A PLY1
2 4701-101J-2 RCF 1/8W 100R 5% AT R110,111
1 4705-122J-2 RCF 1/4W 1.2K 5% AT R660
1 4711-122A-2 RMF 1/8W 1.2K 1% AT TP402
1 4711-183A-2 RMF 1/8W 18K 1% AT TP402
4 4718-100J-C-X RMF 1W 10R 5% ATS METAL R234,235,241,242
1 4718-392C-L RMF 1W 3.9K 2% AF R904
1 4719-222J-1-X RMF 2W 2.2K 5% AL METAL R255
6 4720-101J-J RMG 1/10W 100R 5% 0805 R236,237,238,251,256,260
7 4720-102J-J RMG 1/10W 1K 5% 0805 R104,105,226,511,603,
622,625
32 4720-103J-J RMG 1/10W 10K 5% 0805 R2,4,5,6,7,8,9,10,11,12,24,
57,61,223,224,245,253, 501,
502,503,504,505,507,508,
509,530,531,601,604,607,
626,629
14 4720-104J-J RMG 1/10W 100K 5% 0805 R60,63,65,69,71,74,83,86,
88,243,246,605,628,902
1 4720-105J-J RMG 1/10W 1M 5% 0805 R606
PRE AMP & POWER AMP PCB ASSY
CONTINUED
QTY PART NO DESCRIPTION LOCATION
