KEF PSW3500 - Page 10

POWERED SUBWOOFER
10

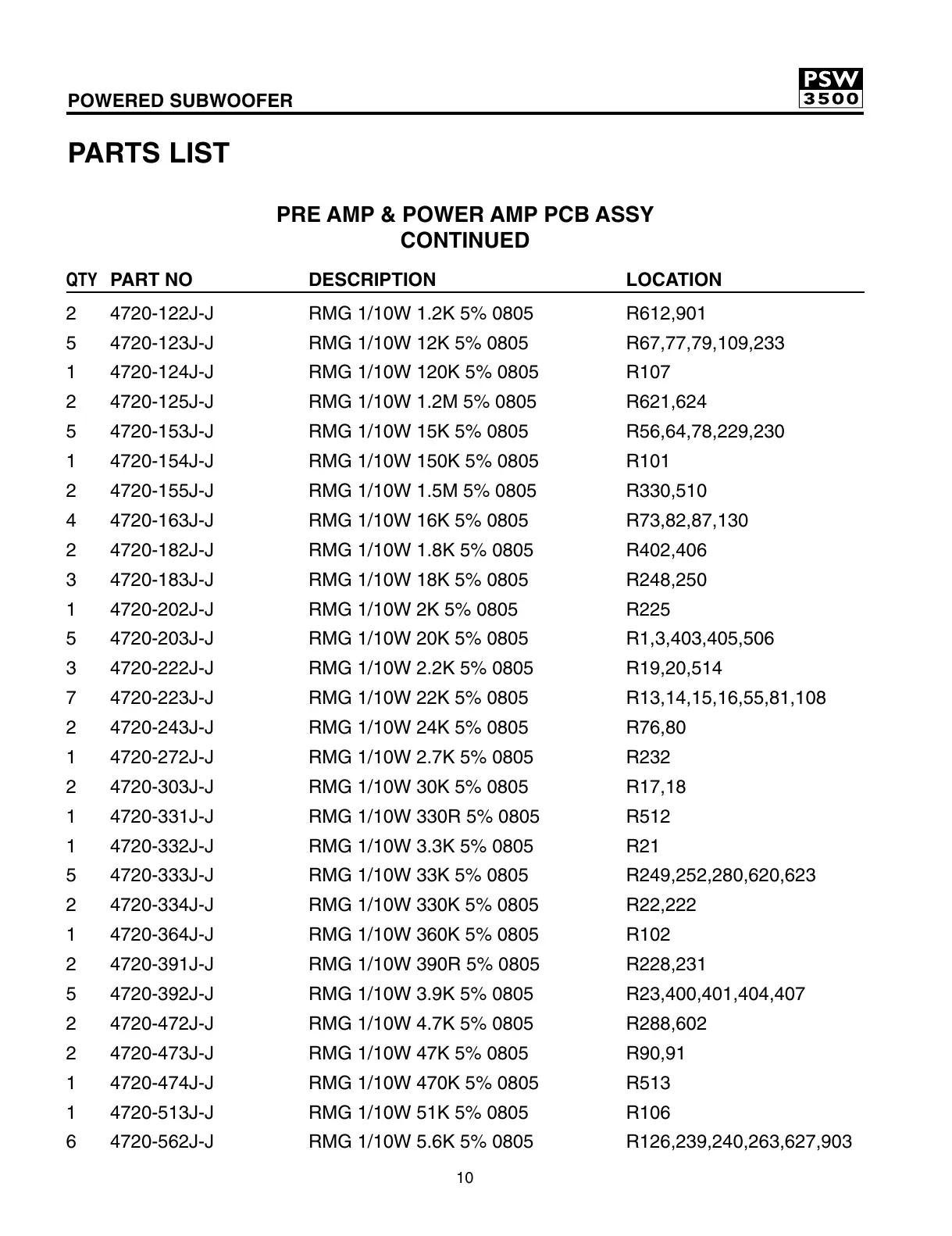

PARTS LIST
2 4720-122J-J RMG 1/10W 1.2K 5% 0805 R612,901
5 4720-123J-J RMG 1/10W 12K 5% 0805 R67,77,79,109,233
1 4720-124J-J RMG 1/10W 120K 5% 0805 R107
2 4720-125J-J RMG 1/10W 1.2M 5% 0805 R621,624
5 4720-153J-J RMG 1/10W 15K 5% 0805 R56,64,78,229,230
1 4720-154J-J RMG 1/10W 150K 5% 0805 R101
2 4720-155J-J RMG 1/10W 1.5M 5% 0805 R330,510
4 4720-163J-J RMG 1/10W 16K 5% 0805 R73,82,87,130
2 4720-182J-J RMG 1/10W 1.8K 5% 0805 R402,406
3 4720-183J-J RMG 1/10W 18K 5% 0805 R248,250
1 4720-202J-J RMG 1/10W 2K 5% 0805 R225
5 4720-203J-J RMG 1/10W 20K 5% 0805 R1,3,403,405,506
3 4720-222J-J RMG 1/10W 2.2K 5% 0805 R19,20,514
7 4720-223J-J RMG 1/10W 22K 5% 0805 R13,14,15,16,55,81,108
2 4720-243J-J RMG 1/10W 24K 5% 0805 R76,80
1 4720-272J-J RMG 1/10W 2.7K 5% 0805 R232
2 4720-303J-J RMG 1/10W 30K 5% 0805 R17,18
1 4720-331J-J RMG 1/10W 330R 5% 0805 R512
1 4720-332J-J RMG 1/10W 3.3K 5% 0805 R21
5 4720-333J-J RMG 1/10W 33K 5% 0805 R249,252,280,620,623
2 4720-334J-J RMG 1/10W 330K 5% 0805 R22,222
1 4720-364J-J RMG 1/10W 360K 5% 0805 R102
2 4720-391J-J RMG 1/10W 390R 5% 0805 R228,231
5 4720-392J-J RMG 1/10W 3.9K 5% 0805 R23,400,401,404,407
2 4720-472J-J RMG 1/10W 4.7K 5% 0805 R288,602
2 4720-473J-J RMG 1/10W 47K 5% 0805 R90,91
1 4720-474J-J RMG 1/10W 470K 5% 0805 R513
1 4720-513J-J RMG 1/10W 51K 5% 0805 R106
6 4720-562J-J RMG 1/10W 5.6K 5% 0805 R126,239,240,263,627,903
PRE AMP & POWER AMP PCB ASSY
CONTINUED
QTY PART NO DESCRIPTION LOCATION
