KEF PSW3500 - Page 6

POWERED SUBWOOFER
6
1 4705-220J-2 RCF 1/4W 22R 5% AT R18
1 4705-241J-2 RCF 1/4W 240R 5% AT R19
1 4705-471J-2 RCF 1/4W 470R 5% AT R21
1 4705-821J-2 RCF 1/4W 820R 5% AT R22
2 4707-104J-2 RCF 1/2W 100K 5% AT R2,3
1 4707-474J-2 RCF 1/2W 470K 5% AT R1
1 4715-203A-1 RMF 1/4W 20K 1% AL R28
1 4715-243A-2 RMF 1/4W 24K 1% AT R30
3 4715-472A-1 RMF 1/4W 4.7K 1% AL R11,20,33
4 4715-51R1-2 RMF 1/4W 51.1R 1% AT R4,5,7,8
1 4719-101J-C-X RMF 2W 100R 5% ATS METAL R10
2 4719-470J-C-X RMF 2W 47R 5% ATS METAL R13,14
1 4756-1026-3-07 SVR B1K H3 VZ067TL7B TP1
4 4837-18V6-2 DZ 1/2W 18V TEMIC AT Z1,2,3,4
1 4837-30V6-2 DZ 1/2W 30V 5% TEMIC AT Z5
5 4840-0010-2 DIODE 1N4001 D13,14,15,16,17
5 4840-8060-2 DIODE 1N4148 NS D19,20,21,22,23
1 4840-8240-0 DIODE BR108 BRIDGE RECTI D1
4 4840-8520-2 RECTIFIER UF4003 GI AT D4,5,12,18
2 4840-8530-2 RECTIFIER UF4006 GI AT D2,3
4 4840-8860-1 DIODE 600V 15A T0220 D8,9,10,11
2 4853-9040-5 TR 2N3904 Q6,7
1 4860-2400-5 TR 2N3906 MICRO Q5
4 4860-8950-0 TR FET IRF840 (IR) Q1,2,3,4
1 5202-0001-0 NTC THERMISTER SCK057 NTC1
8 5400-9320-0 2617-4-B HEAT SINK Q1-Q4, D8-D11
1 7010-0150-0 CN ASSY UL1007 #20 L=120 JPW1
1 7010-0160-0 CN ASSY UL1007 #20 L=120 JPW2
1 7010-2352-0 WIRE CON ASSY 4P+2P+2P CN2

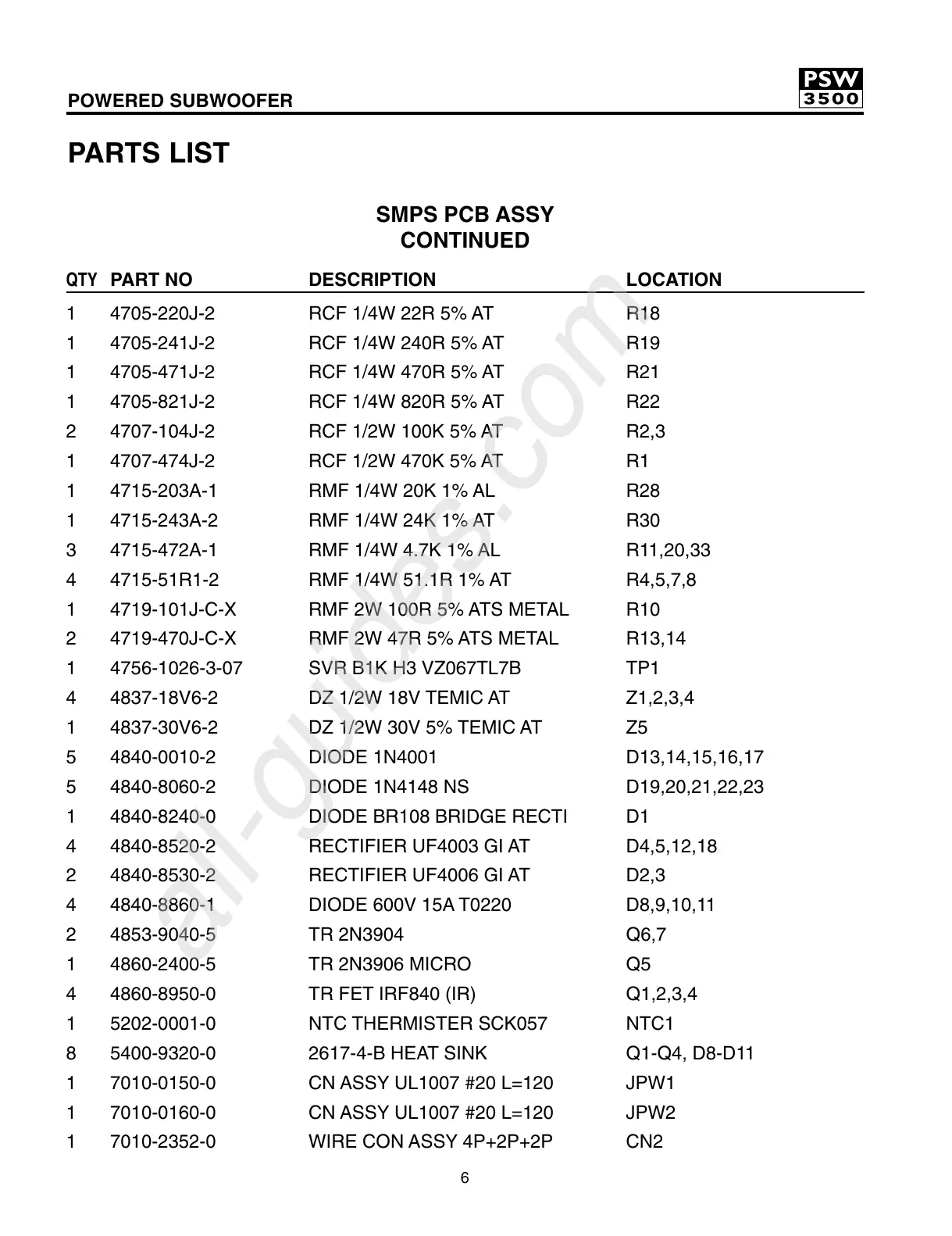

PARTS LIST
SMPS PCB ASSY
CONTINUED
QTY PART NO DESCRIPTION LOCATION
