KEF PSW3500 - Page 5

5
POWERED SUBWOOFER

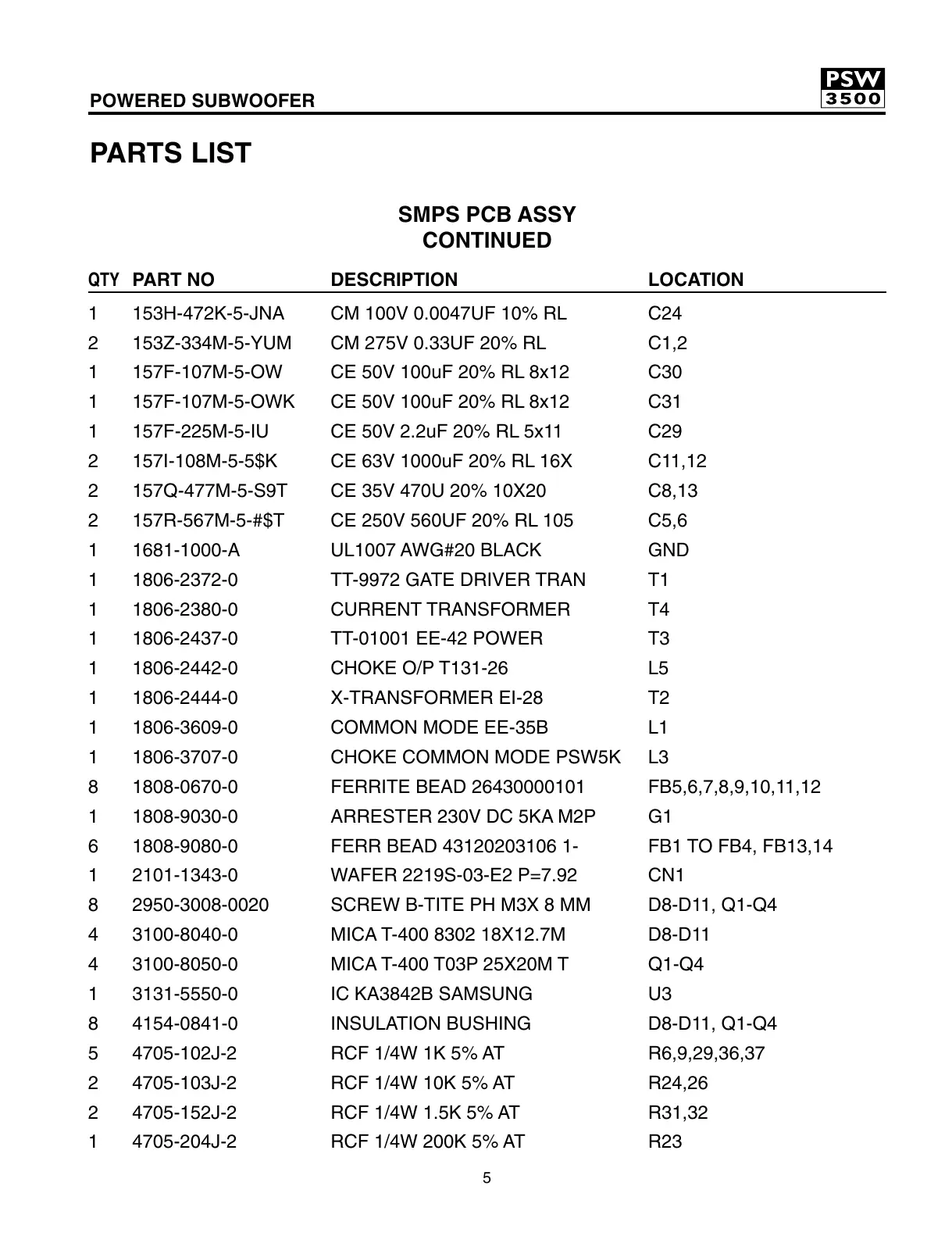

PARTS LIST
1 153H-472K-5-JNA CM 100V 0.0047UF 10% RL C24
2 153Z-334M-5-YUM CM 275V 0.33UF 20% RL C1,2
1 157F-107M-5-OW CE 50V 100uF 20% RL 8x12 C30
1 157F-107M-5-OWK CE 50V 100uF 20% RL 8x12 C31
1 157F-225M-5-IU CE 50V 2.2uF 20% RL 5x11 C29
2 157I-108M-5-5$K CE 63V 1000uF 20% RL 16X C11,12
2 157Q-477M-5-S9T CE 35V 470U 20% 10X20 C8,13
2 157R-567M-5-#$T CE 250V 560UF 20% RL 105 C5,6
1 1681-1000-A UL1007 AWG#20 BLACK GND
1 1806-2372-0 TT-9972 GATE DRIVER TRAN T1
1 1806-2380-0 CURRENT TRANSFORMER T4
1 1806-2437-0 TT-01001 EE-42 POWER T3
1 1806-2442-0 CHOKE O/P T131-26 L5
1 1806-2444-0 X-TRANSFORMER EI-28 T2
1 1806-3609-0 COMMON MODE EE-35B L1
1 1806-3707-0 CHOKE COMMON MODE PSW5K L3
8 1808-0670-0 FERRITE BEAD 26430000101 FB5,6,7,8,9,10,11,12
1 1808-9030-0 ARRESTER 230V DC 5KA M2P G1
6 1808-9080-0 FERR BEAD 43120203106 1- FB1 TO FB4, FB13,14
1 2101-1343-0 WAFER 2219S-03-E2 P=7.92 CN1
8 2950-3008-0020 SCREW B-TITE PH M3X 8 MM D8-D11, Q1-Q4
4 3100-8040-0 MICA T-400 8302 18X12.7M D8-D11
4 3100-8050-0 MICA T-400 T03P 25X20M T Q1-Q4
1 3131-5550-0 IC KA3842B SAMSUNG U3
8 4154-0841-0 INSULATION BUSHING D8-D11, Q1-Q4
5 4705-102J-2 RCF 1/4W 1K 5% AT R6,9,29,36,37
2 4705-103J-2 RCF 1/4W 10K 5% AT R24,26
2 4705-152J-2 RCF 1/4W 1.5K 5% AT R31,32
1 4705-204J-2 RCF 1/4W 200K 5% AT R23
SMPS PCB ASSY
CONTINUED
QTY PART NO DESCRIPTION LOCATION
