27
POWERED SUBWOOFER

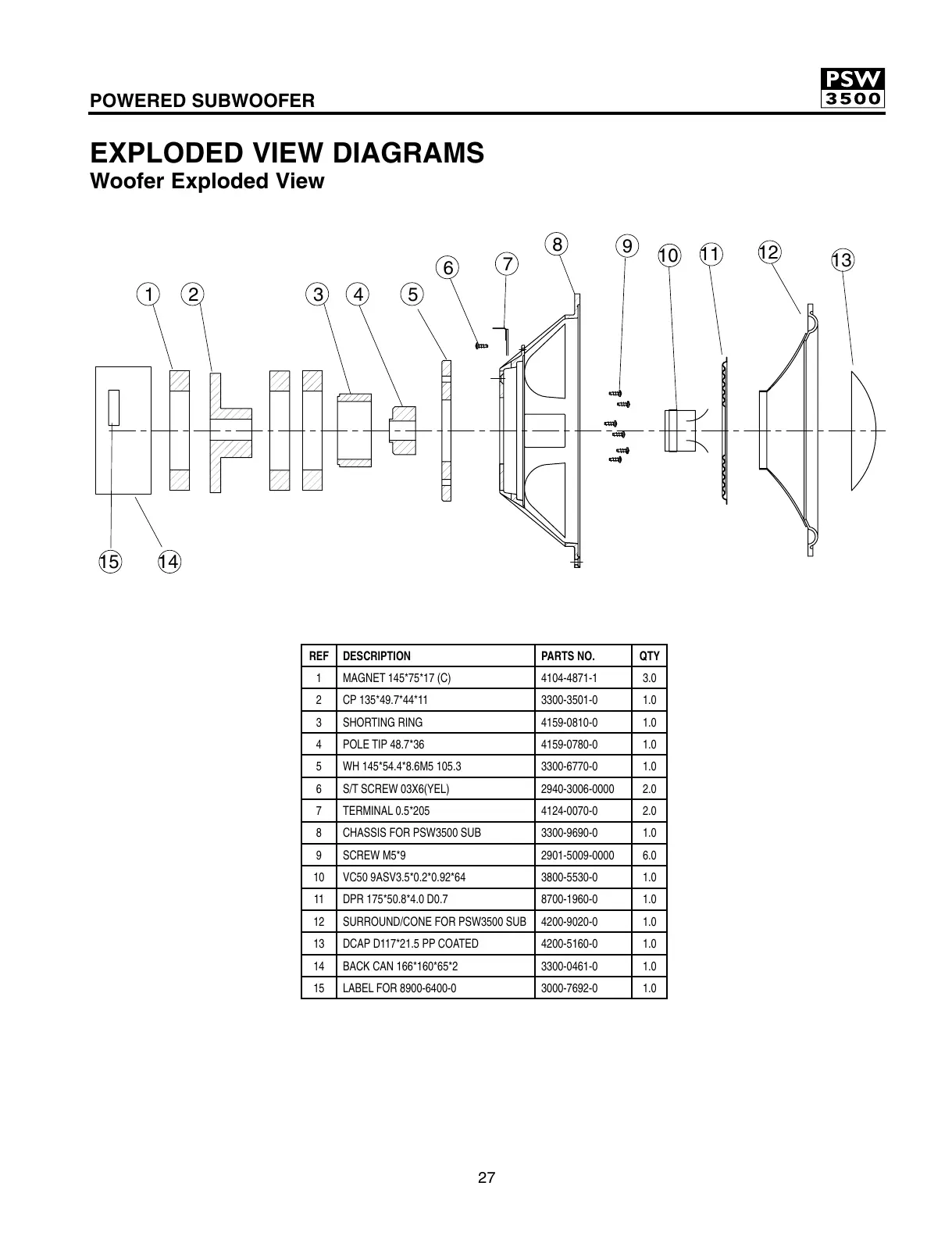

EXPLODED VIEW DIAGRAMS
Woofer Exploded View
2 34 5
13
1
6
7
8
9
10
11
12
1415
1 MAGNET 145*75*17 (C) 4104-4871-1 3.0
2CP 135*49.7*44*11 3300-3501-0 1.0
3 SHORTING RING 4159-0810-0 1.0
4 POLE TIP 48.7*36 4159-0780-0 1.0
5 WH 145*54.4*8.6M5 105.3 3300-6770-0 1.0
6 S/T SCREW 03X6(YEL) 2940-3006-0000 2.0
7 TERMINAL 0.5*205 4124-0070-0 2.0
8 CHASSIS FOR PSW3500 SUB 3300-9690-0 1.0
9 SCREW M5*9 2901-5009-0000 6.0
10 VC50 9ASV3.5*0.2*0.92*64 3800-5530-0 1.0
11 DPR 175*50.8*4.0 D0.7 8700-1960-0 1.0
12 SURROUND/CONE FOR PSW3500 SUB 4200-9020-0 1.0
13 DCAP D117*21.5 PP COATED 4200-5160-0 1.0
14 BACK CAN 166*160*65*2 3300-0461-0 1.0
15 LABEL FOR 8900-6400-0 3000-7692-0 1.0
REF DESCRIPTION PARTS NO. QTY
