KEF PSW3500 - Page 28

POWERED SUBWOOFER
28

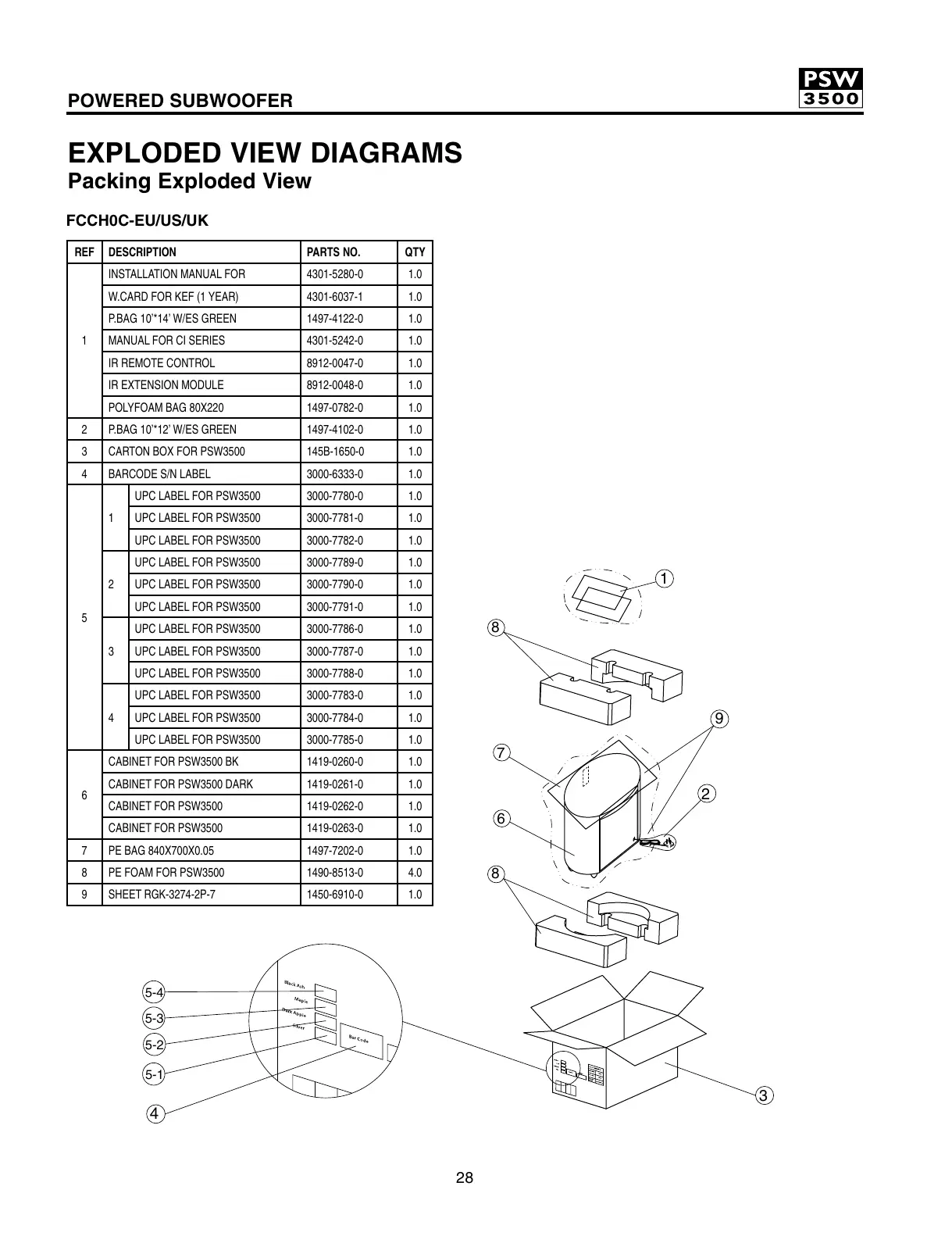

EXPLODED VIEW DIAGRAMS
Packing Exploded View
8
1
2
7
6
9
8
4
5-3
3
5-2
5-1
5-4
REF DESCRIPTION PARTS NO. QTY
FCCH0C-EU/US/UK
1
INSTALLATION MANUAL FOR 4301-5280-0 1.0
W.CARD FOR KEF (1 YEAR) 4301-6037-1 1.0
P.BAG 10’*14’ W/ES GREEN 1497-4122-0 1.0
MANUAL FOR CI SERIES 4301-5242-0 1.0
IR REMOTE CONTROL 8912-0047-0 1.0
IR EXTENSION MODULE 8912-0048-0 1.0
POLYFOAM BAG 80X220 1497-0782-0 1.0
2P.BAG 10’*12’ W/ES GREEN 1497-4102-0 1.0
3 CARTON BOX FOR PSW3500 145B-1650-0 1.0
4 BARCODE S/N LABEL 3000-6333-0 1.0
5
1
UPC LABEL FOR PSW3500 3000-7780-0 1.0
UPC LABEL FOR PSW3500 3000-7781-0 1.0
UPC LABEL FOR PSW3500 3000-7782-0 1.0
2
UPC LABEL FOR PSW3500 3000-7789-0 1.0
UPC LABEL FOR PSW3500 3000-7790-0 1.0
UPC LABEL FOR PSW3500 3000-7791-0 1.0
3
UPC LABEL FOR PSW3500 3000-7786-0 1.0
UPC LABEL FOR PSW3500 3000-7787-0 1.0
UPC LABEL FOR PSW3500 3000-7788-0 1.0
4
UPC LABEL FOR PSW3500 3000-7783-0 1.0
UPC LABEL FOR PSW3500 3000-7784-0 1.0
UPC LABEL FOR PSW3500 3000-7785-0 1.0
6
CABINET FOR PSW3500 BK 1419-0260-0 1.0
CABINET FOR PSW3500 DARK 1419-0261-0 1.0
CABINET FOR PSW3500 1419-0262-0 1.0
CABINET FOR PSW3500 1419-0263-0 1.0
7 PE BAG 840X700X0.05 1497-7202-0 1.0
8 PE FOAM FOR PSW3500 1490-8513-0 4.0
9 SHEET RGK-3274-2P-7 1450-6910-0 1.0
