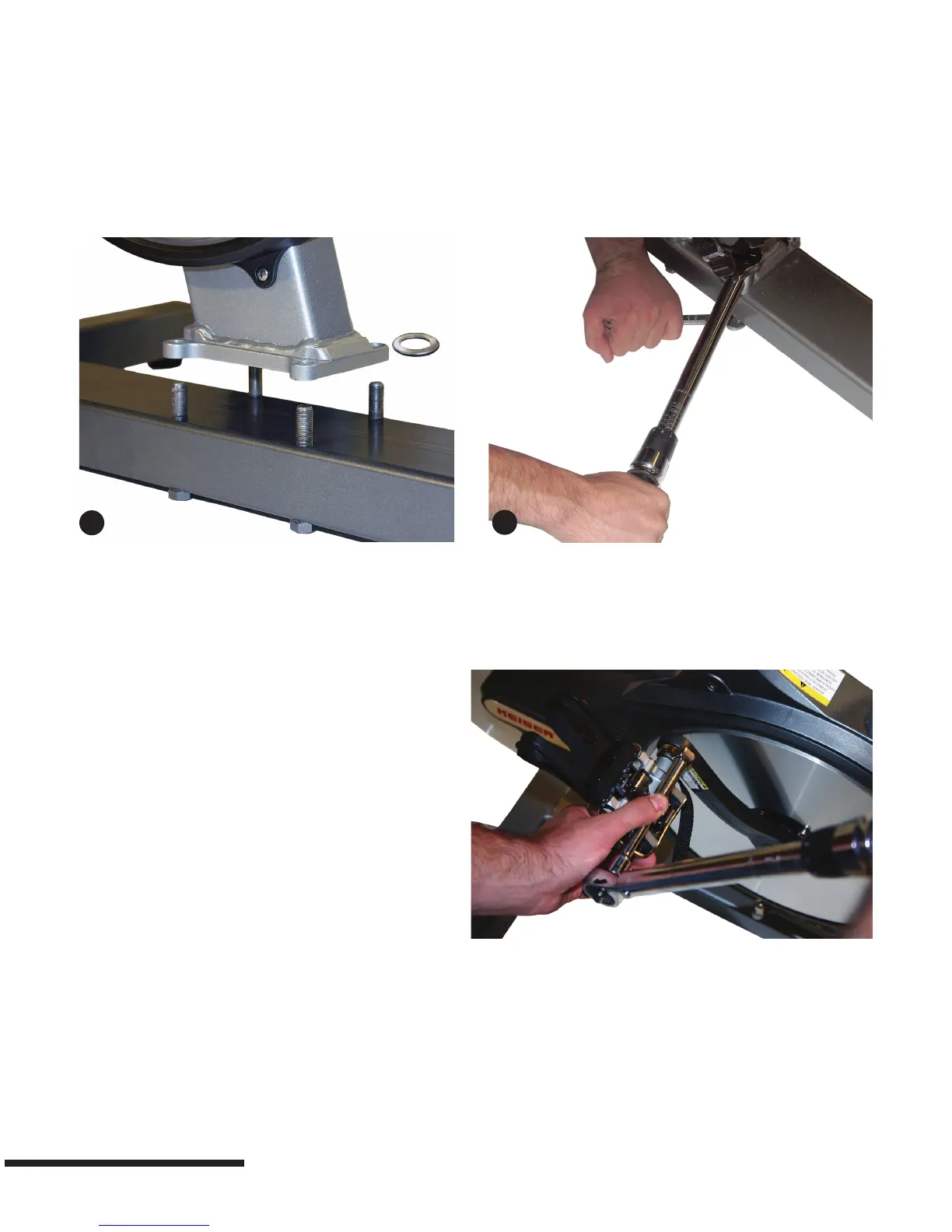

Assembling Bike to Base Frame
Step 1: Carefully lower the bike onto the base frame over the base screws, with the front of the bike facing the transport
wheels on the Base Frame.
Step 2: Insert one washer on each of the four base frame studs.
Step 3: Install the acorn nuts on the studs and hand tighten. Torque the acorn nuts with a 16mm or 5/8” crowfoot and
torque wrench to 45 Nm (35 ft-lbs) using a 16mm, or 5/8 inch open-end wrench to hold in position.
1 3
Assembling Pedal to Crank Arm
Step 1: Unwrap the pedal set and Loctite 242, obtain the
Torque wrench, 15mm crowfoot, 4” extension, and 15mm
open-end wrench.
Step 2: With a clean cloth, wipe the threaded area of the
pedals. Apply Loctite 242 to the pedal threads. Install
the pedals into the crank arms, use the 15mm open-end
wrench to tighten. Finish with the torque wrench, 15mm
crowfoot, and 4” extension. Torque pedals to 45 Nm (35
ft-lbs).
NOTE: Left pedal is LH threads and right pedal is RH
threads.
WARNING! Failing to install the pedals with Loctite 242, or
crossing the threads will damage them, and could result in
serious injury to the user.
