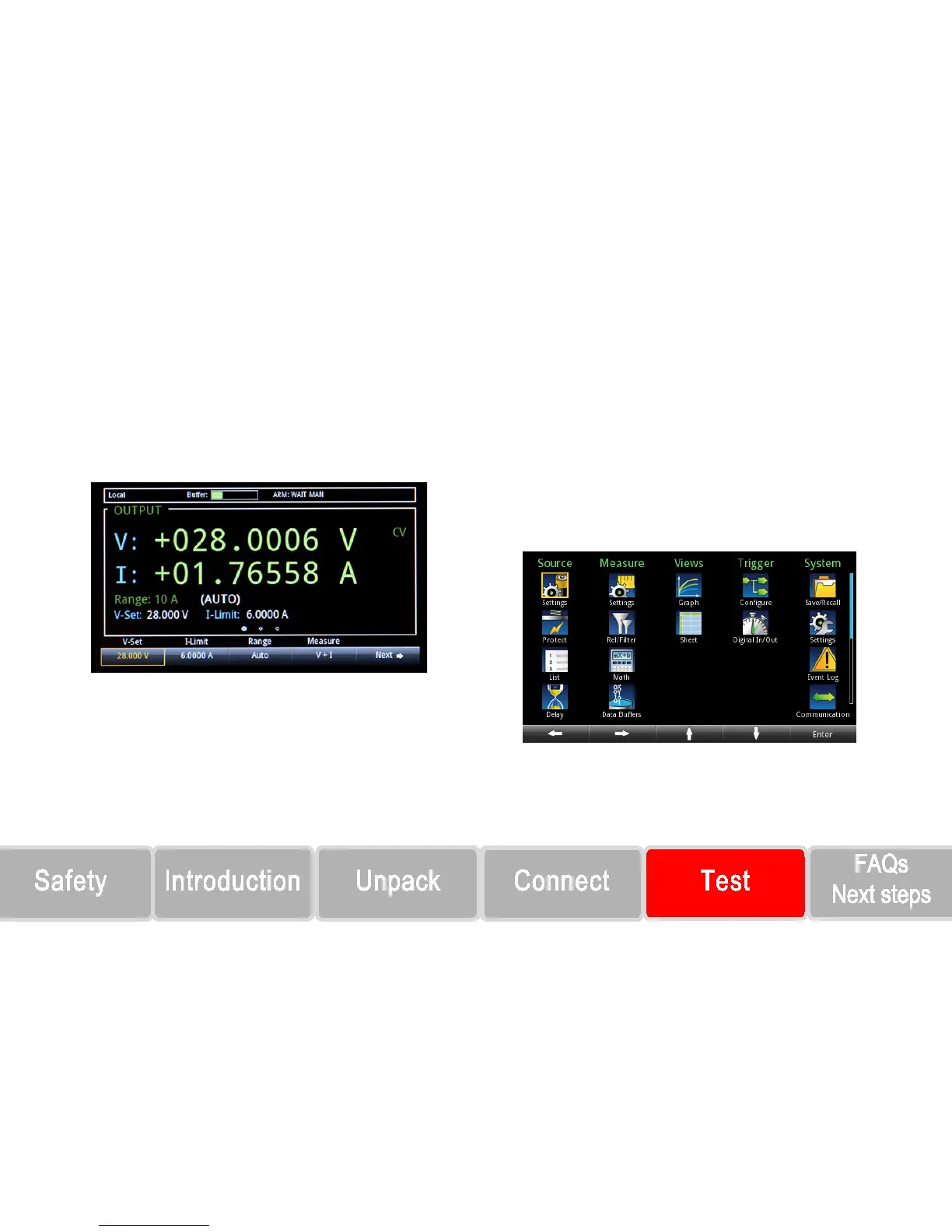

Home screen overview
The Home screen is the first screen that opens on power up. You can
always return to the Home screen by pressing the HOME key.
The top row on the Home screen displays the status and event
indicators. Y ou can select these options to open dialog boxes that
provide additional information about the status or event.
The OUTPUT view area of the Home screen displays the value of
the present outputs and status indicators. The outputs show dashed
lines until the output is turned on.
The setting area of the Home screen is located in the lower left
corner of the OUTPUT view area. It shows the presently set measure
range, voltage, and current limit.
The soft-key area is located on the bottom of the Home screen. It
shows the present setting values. You can change these values by
pressing the buttons below the screen.
Menu screen overview
When you press the MENU key on the front panel, the Menu screen
is displayed.
