Keithley 2400 Service Manual

2400 SourceMeter
250V
PEAK
5V
PEAK
HI
LO
OUTPUT
250V
PEAK
250V
PEAK
EDIT
TOGGLE
POWER
RANGE
INPUT/
OUTPUT
4-WIRE
SENSE
DISPLAY
ON/OFF
TERMINALS
FRONT/
REAR
AUTO
RANGE
EXIT ENTER
CONFIG MENU
SWEEP
TRIG
REL
LOCAL
FILTER
LIMIT
DIGITS SPEED
V
Ω
MEAS
I
FCTN
V
I
SOURCE
230
1
67
89
4
+/-
5
STORE
RECALL
EDIT
Model 2400
Resistance Calibrator
Output LO
Sense LO
Sense HI
Output HI
Fi
gure
1
-
3

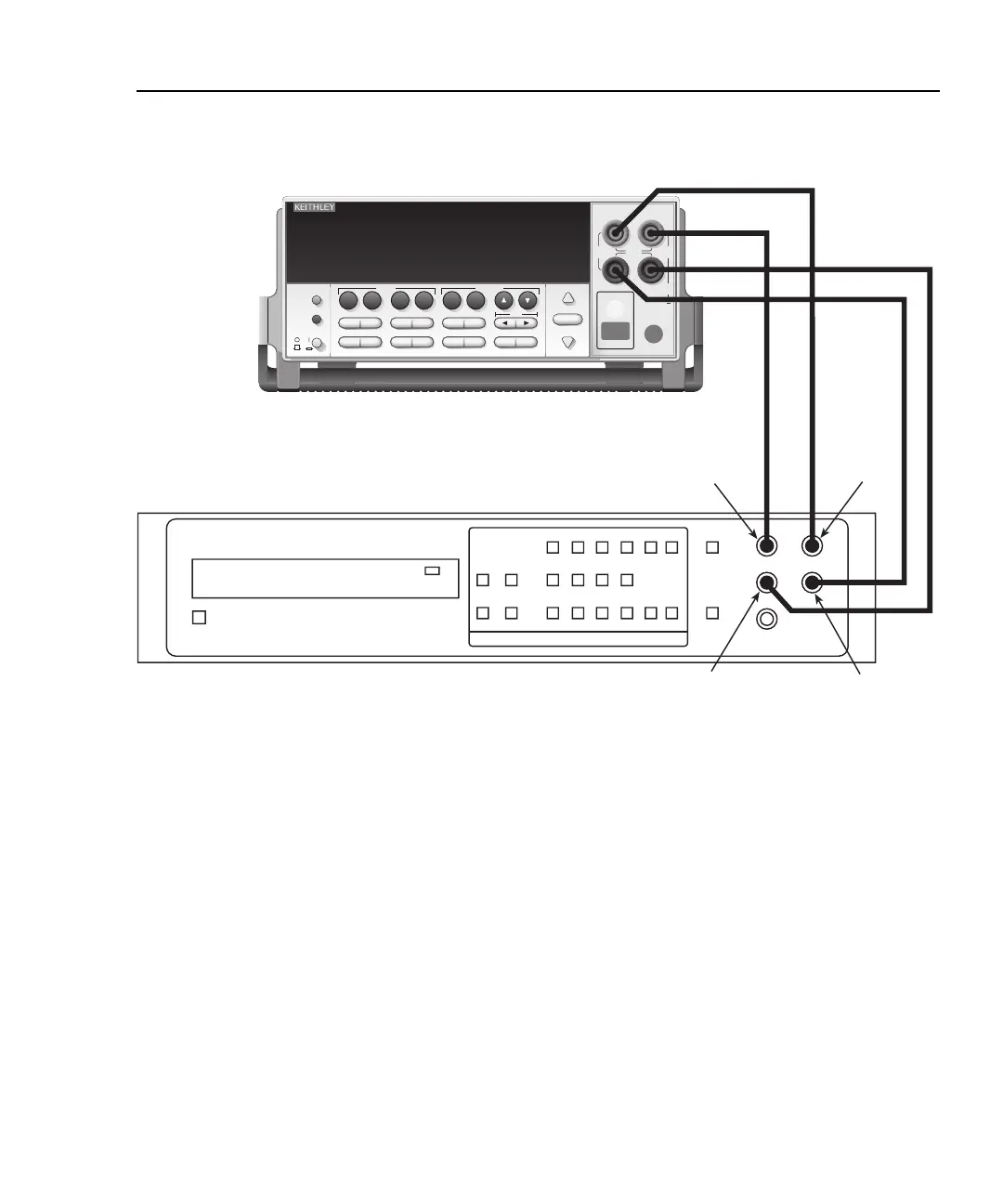

Resistance verification connections
2400-902-01 (G - Feb 2006)
1-15 Model 2400 Series User’s Manual
Performance Verification

Keithley 2400 Specifications

General

Model	2400
Category	SourceMeter
Voltage Source Range	±200 V
Power Output	20 W
Voltage Measurement Resolution	100 nV
Current Measurement Resolution	10 pA
Resolution	5.5 digits
Interfaces	GPIB, RS-232
Current Source Range	±1A
Current Measurement Range	±1A
Resistance Measurement Range	2 Ω to 200 MΩ
Display	Vacuum Fluorescent Display
